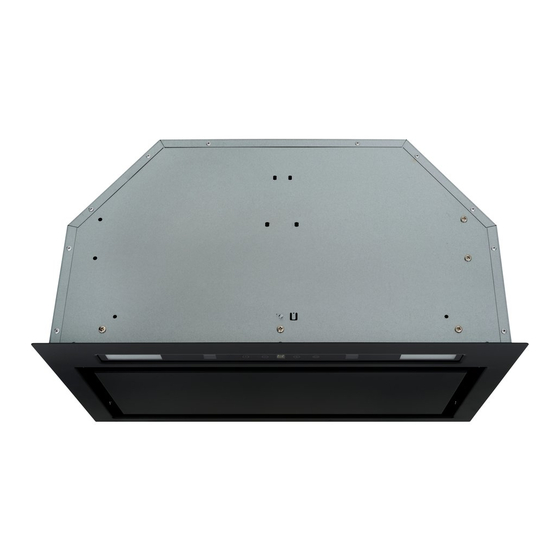

- Page 1 MODEL GGSRUM520B V1.6 0923 User Manual 52cm Undermount Rangehood...
- Page 2 GGSRUM520B Welcome Residentia Group Congratulations on purchasing your new 52cm Undermount Rangehood. — Sôlt is proudly distributed within Australia by Residentia Group Pty Ltd. Head Office 165 Barkly Avenue Please refer to the warranty card at the rear of this manual for information Burnley Victoria regarding your product’s parts and labour warranty, or visit us online at:...
-
Page 3: Table Of Contents
User Manual Contents Safety Information Your Rangehood Operating Instructions Installation Instructions Cleaning & Maintenance Troubleshooting Technical Specifications Purchase Details Warranty Information Customer Care Sôlt recommends the use of original spare parts. When contacting our customer service team by calling 1300 11 4357, or by emailing support@residentiagroup.com.au, please ensure that you have the following information at hand, which can befound on your appliances’... -
Page 4: Safety Information
In the event that you misplace this manual, a digital version can be found by visiting persons (including children) with reduced physical, our website at www.solt.house sensory or mental capabilities, or a lack of experience and knowledge, unless they have been given adequate •... - Page 5 User Manual Exhaust Ducting Installation • Safe operation is only possible when the negative pressure in the room where the appliance is located • The following rules must be strictly followed to obtain does not exceed 4 Pa (0.04 mbar). This can be achieved optimal air extraction.
-
Page 6: Your Rangehood
GGSRUM520B Your Rangehood GGSRUM520B 520.46 28.6 270.8 299.4 28.8 295.6 Rangehood Key 1. Control Panel 2. Perimeter Extraction Panel 295.6 169.2 Included Accessories Tools Required for Installation • 1 × Rangehood • Ducting relevant to your installation requirements, including any rigid bends, vents or adapters •... -
Page 7: Operating Instructions
User Manual Operating Instructions Control Panel Control Panel Key 1. Power Off 6. Delayed Power Off Press this button to turn off the rangehood fan. Pressing the Decrease and Increase buttons together allows the rangehood to automatically power off after 2. -
Page 8: Installation Instructions
GGSRUM520B Installation Instructions Installation Safety Ducted Installation • WARNING: Before starting the installation, please refer For maximum performance we recommend installing to the Safety Information section. with rigid or semi rigid ducting. Use cable ties or suitable duct tape to secure the flexible pipe or ducting to the •... - Page 9 User Manual Positioning the Rangehood Installation Guide NOTE: When the rangehood and appliance supplied • IMPORTANT: Do not connect the power cable until the with energy other than electricity are simultaneously in installation is complete! Sôlt recommends installing in a operation, the negative pressure in the room must be not team of at least two people to avoid injuries.
- Page 10 GGSRUM520B Installation Instructions (continued) 3. Remove the aluminium grease filter, in the interim 5. Gently reinstall the aluminium grease filter to complete placing it on a soft cloth to avoid scratches. your rangehood fitting. 4. Adjust the screws 1, 2, 3, 4 until the flanges on both sides are fixed on the cabinet as per the diagrams below.
- Page 11 User Manual Image 8 (2) 8 (1) Image 10 7. Place the check valve in the slot, rotating until secured. • OPTIONAL: Install the duct adapter and Ø120mm pipe. Please note that spare parts such as the duct adapter and the Ø120mm pipe are optional parts available to purchase by contacting our After Sales Support Team.
-
Page 12: Cleaning & Maintenance
GGSRUM520B Cleaning & Maintenance Cleaning Your Rangehood Task Frequency Clean the Exterior Surface: with a soft cloth lightly dampened in lukewarm Weekly water, thoroughly wrung. A compatible cleaning solution may also be used. Ensure the rangehood is powered off NOTE: To prevent any scratches, ensure that you use a soft cloth when before commencing cleaning. - Page 13 User Manual Cleaning the Grease Filters Installing and Replacing the Carbon Filters • Soak the filter in your kitchen sink for approximately The carbon filters are an optional spare part available to 3 minutes in max 30º C water with a mild, non-corrosive purchase by contacting our After Sales Support Team.
-
Page 14: Troubleshooting
GGSRUM520B Troubleshooting For Minor Faults Problem Possible Cause Solution The lights can be turned on, The fan switch, the motor or the Call our After Sales Support Team for however the motor does not. capacitor may be damaged. further guidance. -
Page 15: Technical Specifications
User Manual Technical Specifications Model GGSRUM520B Finish Matt Black Extraction 750m³/hr Speed Settings 3 (Low, Medium, High) Aluminium Filter 1 × Aluminium Grease Filter Optional accessory, for purchasing details please Carbon Filters email parts@residentiagroup.com.au to learn more Lighting 2 × 2W LED Max. -
Page 16: Purchase Details
GGSRUM520B Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE PURCHASE DATE PRODUCT DETAILS MODEL NO. - Page 17 User Manual Notes...
-
Page 18: Warranty Information
GGSRUM520B Warranty Information WARRANTY TERMS AND CONDITIONS IN THIS WARRANTY RANGEHOODS ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in This document sets out the terms and conditions of the the ACL;... - Page 19 User Manual You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group Group in Australia, the Appliances come with a or its ASR. If you reside outside of the service area, you guarantee by Residentia Group that cannot be excluded will bear the cost of: under the Australian Consumer Law.
- Page 20 An initiative by Residentia Group T. 1300 11 4357 E. support@residentiagroup.com.au www.solt.house...
