Summary of Contents for Solt GGSRCG900S

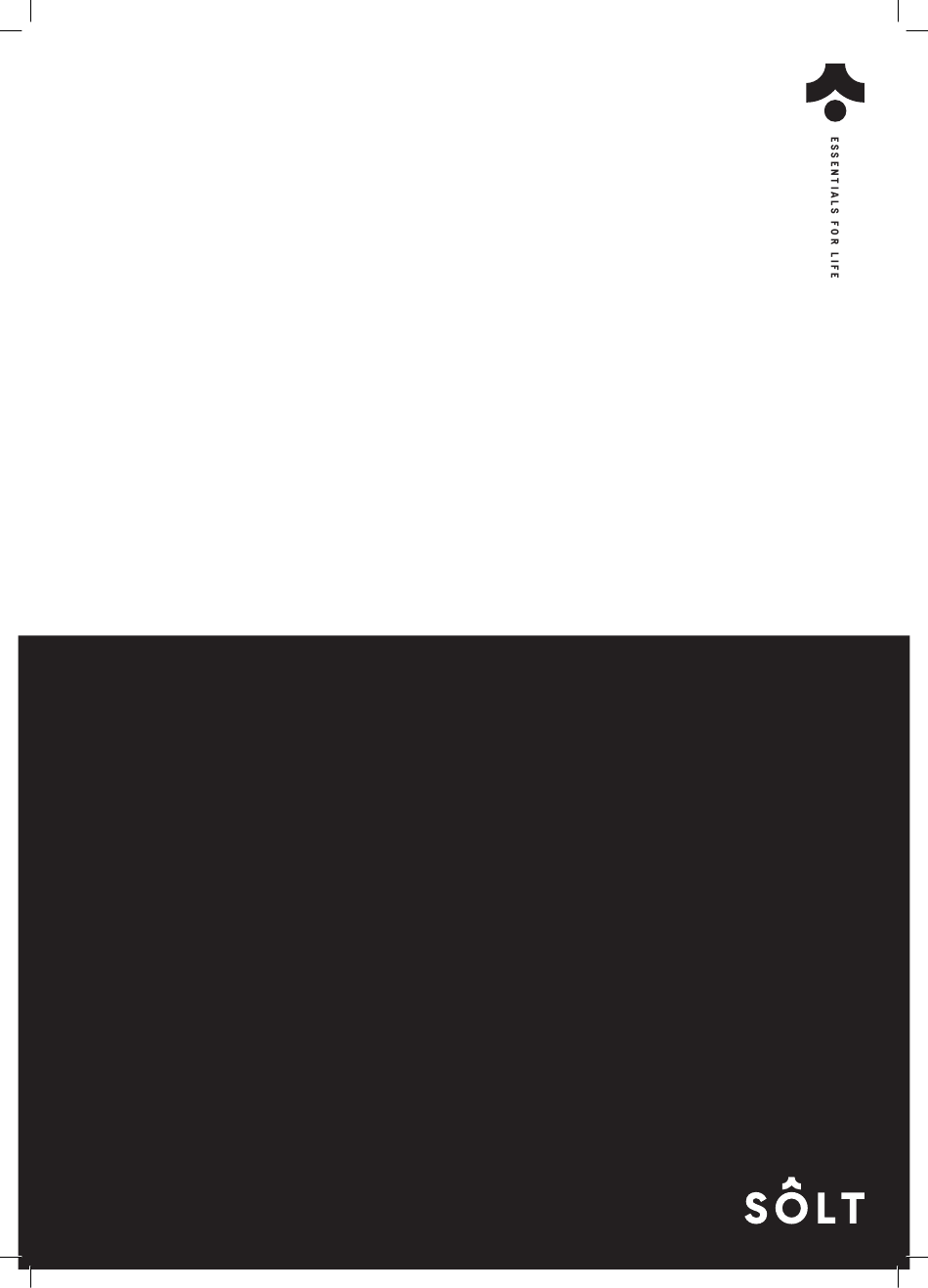

- Page 1 MODEL GGSRCG900S V1.1 0923 User Manual 90cm Curved Glass Canopy Rangehood...
- Page 2 GGSRCG900S Welcome Residentia Group Congratulations on purchasing your new 90cm Canopy Rangehood. — Sôlt is proudly distributed within Australia by Residentia Group Pty Ltd. Head Office 165 Barkly Avenue Please refer to the warranty card at the rear of this manual for information Burnley Victoria regarding your product’s parts and labour warranty, or visit us online at:...
-
Page 3: Table Of Contents
User Manual Contents Safety Information Your Rangehood Operating Instructions Installation Instructions Cleaning & Maintenance Troubleshooting Technical Specifications Purchase Details Warranty Information Customer Care Sôlt recommends the use of original spare parts. When contacting our customer service team by calling 1300 11 4357, or by e-mailing support@residentiagroup.com.au, please ensure that you have the following information at hand, which can befound on your appliances’... -
Page 4: Safety Information
GGSRCG900S Safety Information Conditions of Use Operation & Maintenance This appliance is intended to be used in household • WARNING: Follow these instructions carefully to avoid and similar applications such as farm houses or by injury, electric shock or fire. - Page 5 User Manual Exhaust Flue Installation • Safe operation is only possible when the negative pressure in the room where the appliance is located • The following rules must be strictly followed to obtain does not exceed 4 Pa (0.04 mbar). This can be achieved optimal air extraction.
-
Page 6: Your Rangehood
GGSRCG900S Your Rangehood GGSRCG900S Rangehood Key 1. Control Panel 2. Aluminium Grease Filters Included Accessories Tools Required for Installation • 1 × Rangehood, User Manual & Quick Start Guide • Ducting relevant to your installation requirements, including any rigid bends, vents or adapters •... -
Page 7: Operating Instructions
User Manual Operation Instructions Control Panel Control Panel Key 1. Power Off 4. High Speed Press this button to turn the rangehood fan off. Press this button to set the extraction to the highest speed. Use this fan setting for heavy smoke or steam to 2. -
Page 8: Installation Instructions
GGSRCG900S Installation Instructions Installation Safety Ducted Installation • WARNING: Before starting the installation, please refer For maximum performance we recommend installing to the Safety Information section. with rigid or semi rigid ducting. Use cable ties or suitable duct tape to secure the flexible pipe or ducting to the •... - Page 9 User Manual Positioning the Rangehood Installation Guide NOTE: When the rangehood and appliance supplied • IMPORTANT: Do not connect the power cable until the with energy other than electricity are simultaneously in installation is complete! Sôlt recommends installing in a operation, the negative pressure in the room must be not team of at least two people to avoid any accidents.
- Page 10 GGSRCG900S Installation Instructions (continued) Installation Guide (continued) Picture 2 Bracket Bracket Hook Wall Bracket Hook Figure 4 Figure 5 Picture 3 Inside Bracket Chimney Bracket Outside Figure 6 Figure 7 Picture 5 Safety screws Need Help? You can speak to our...
-
Page 11: Cleaning & Maintenance
User Manual Cleaning & Maintenance Cleaning Your Rangehood Task Frequency Clean the Exterior Surface: with a soft cloth lightly dampened in lukewarm Weekly water, thoroughly wrung. A compatible cleaning solution may also be used. Ensure the rangehood is powered off NOTE: To prevent any scratches, ensure that you use a soft cloth when before commencing cleaning. - Page 12 GGSRCG900S Cleaning & Maintenance (continued) Cleaning the Grease Filters Installing and Replacing the Carbon Filters • Soak the filter in your kitchen sink for approximately The carbon filters are an optional spare part available to 3 minutes in max 30º C water with a mild, non-corrosive purchase by contacting our After Sales Support Team.
-
Page 13: Troubleshooting
User Manual Troubleshooting For Minor Faults Problem Possible Cause Solution The lights can be turned on, The fan switch, the motor or the Call our After Sales Support Team for however the motor does not. capacitor may be damaged. further guidance. The blades may be blocked. -
Page 14: Technical Specifications
GGSRCG900S Technical Specifications Product Specifications Model GGSRCG900S Finish Stainless Steel w. Glass Hood Extraction 750m³/hr Speed Settings 3 (Low, Medium, High) Aluminium Filter 2 × Aluminium Grease Filters Optional accessory, for purchasing details please Carbon Filters email parts@residentiagroup.com.au to learn more Lighting 2 ×... -
Page 15: Purchase Details
User Manual Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE PURCHASE DATE PRODUCT DETAILS MODEL NO. - Page 16 GGSRCG900S Notes...
- Page 17 User Manual Notes...
-
Page 18: Warranty Information
GGSRCG900S Warranty Information WARRANTY TERMS AND CONDITIONS IN THIS WARRANTY RANGEHOODS ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in This document sets out the terms and conditions of the the ACL;... - Page 19 User Manual You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group Group in Australia, the Appliances come with a or its ASR. If you reside outside of the service area, you guarantee by Residentia Group that cannot be excluded will bear the cost of: under the Australian Consumer Law.
- Page 20 An initiative by Residentia Group T. 1300 11 4357 E. support@residentiagroup.com.au www.solt.house...
