BS3-C/L Safety Sensor System
Installation and Operating Manual
Scientific Technologies Inc.
Optical Sensor Division
Manufacturing and Sales Office
6550 Dumbarton Circle
Fremont CA 94555-3605 USA
1 / 888 / 510-4357
Tel: 510/608-3400
Fax: 510/744-1442
www.sti.com
© STI 1203 PN99306-0020 Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS3-C and is the answer not in the manual?

Questions and answers

Related Manuals for STI BS3-C

Summary of Contents for STI BS3-C

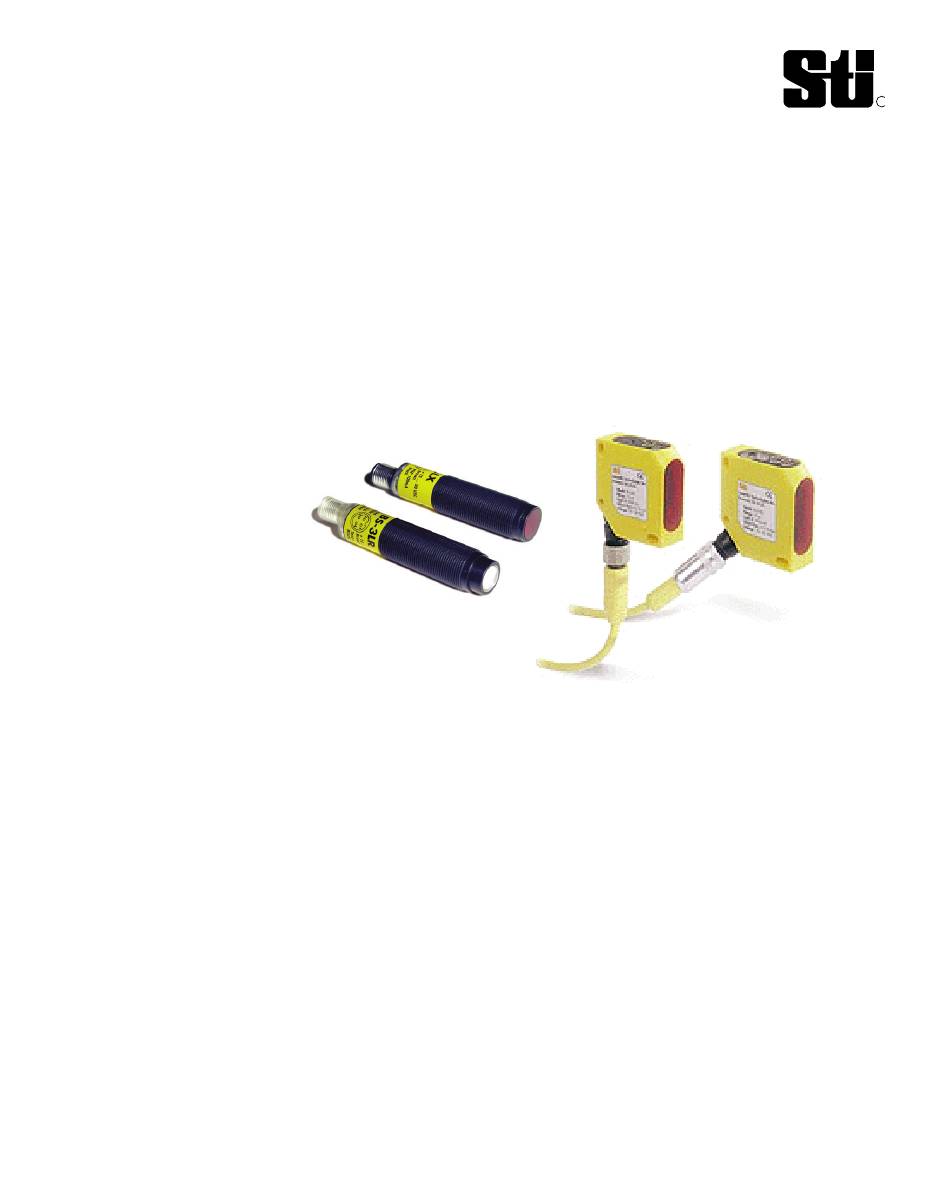

  • Page 1 BS3-C/L Safety Sensor System Installation and Operating Manual Scientific Technologies Inc. Optical Sensor Division Manufacturing and Sales Office 6550 Dumbarton Circle Fremont CA 94555-3605 USA 1 / 888 / 510-4357 Tel: 510/608-3400 Fax: 510/744-1442 www.sti.com © STI 1203 PN99306-0020 Rev. B...

  • Page 2: Table Of Contents

    Section 2—Introduction ......page 4 Section 3—BS3-C/L System Description ....page 9 Section 4—Installation .

  • Page 3: Section 1-Important Safety Messages

    The point of operation is defined as “the location in the machine tool where material is positioned and a process performed.” The primary task of the BS3-C/L is to enhance the safety of both the operator of the dangerous machinery and other persons nearby.
  • Page 4 — where the environment, such as severe smoke, particulate matter, or corrosive chemicals may degrade the efficiency of the BS3-C/L Sensor system. • When a BS3-C/L Sensor system is used as a safety device, the employer has the responsibility to ensure that all applicable federal, state and local requirements and other such rules, codes and regulations are satisfied.

  • Page 5: Section 2-Introduction

    H E O R Y O F P E R A T I O N A BS3-C/L Sensor system is a single-beam infrared safety control. A BS3-C/L Sensor system employs up to two separate sets of single-beam safety sensors connected to a central control module. Interruption of a beam sends a stop signal to the guarded machine.
  • Page 6 IMPORTANT! Please read this manual completely before beginning installation. Installation and maintenance must be performed by qualified personnel. Machine operator safety training is also important. SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...
  • Page 7 Table 2-1 BS3/L Controller 58.9 71.6 2.32 2.82 89.9 Sensor 2 Sensor 1 43.6 Status 3.54 BS3-C 1.72 Out A Out B SIDE VIEW TOP VIEW SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...
  • Page 8 Specifications are subject to change without notice. Table 2-1 BS3-X/BS3-R Sensor Set 27.5 27.5 13.5 13.5 M12 x 1 M12 x 1 Figure 2-3 BeamSafe III-C Sensor Mechanical Drawing SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...
  • Page 9 0.24 0.55 R2.1 0.083 0.08 0.374 1.65 0.71 10.5 1.34 0.166 0.413 R2.1 1.73 1.22 0.083 0.63 0.28 2.17 0.05 Figure 2-4 BS3-L Mechanical Drawing SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...

  • Page 10: Section 3-Bs3-C/L System Description

    A reset function in the BS3-C/L blocks its outputs after an interruption in the safety light field and after power up. In order to have a new machine run signal, activation by an external reset button is necessary.

  • Page 11: Section 4-Installation

    The user has the responsibility to perform all testing (as outlined in appendix A and B) and maintenance as required by STI on the BS3-C/L Sensor system and to insure that the guarded machine is properly tested, guarded and inspected as specified by its manufacturer.
  • Page 12 WARNING: The proper calculation of the safe mounting distance is an important installation step. Never just install a BS3-C/L Sensor system at any convenient location without regard to the safety distance. If the transmitter and receiver are mounted too close to the point of hazardous operation, the machinery may not stop in time to prevent operator injury.

  • Page 13: Section 5-Mechanical Mounting

    O U N T I N G T H E O N T R O L L E R The BS3-C/L controller is designed to be mounted on a standard 35mm DIN rail. It should be installed in such a way that any risk of cable damage is minimized.

  • Page 14: Section 6-Electrical Installation

    INGLE ENSOR If a single transmitter and receiver are used the BS3-C/L must be set to the single sensor mode by placing a jumper between terminals 2 and 3. See Figure 6-1. The single sensor mode can only be set if the second sensor is not wired.
  • Page 15 The machine control system must be wired to the supply of the control element which will stop any dangerous movement of the machine. The BS3-C/L has a response time of <30ms. There is a soldered fuse for each relay output to protect against high current peaks.
  • Page 16 U T P U T S The two opto-coupled signal outputs can be used for communication to a PLC to indicate that the BS3-C/L has been reset. See Figure 6-3. These outputs are not for safety. Maximum capacity for each output is 30VDC and 30mA.
  • Page 17 After the “press and release” of an external reset button, the BS3-C/L activates its outputs. If one set of sensors is used, a single reset button will reset the BS3-C/L. See Figure 6-4. SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B...
  • Page 18 6.6.2 UTOMATIC ESET Automatic reset is a mode in which the outputs of the BS3-C/L will be activated as soon as the interrupted safety beam of the connected sensor is no longer interrupted. If automatic reset is used, the BS3-C/L must be set to the automatic mode using two jumpers.
  • Page 19 Should the external contact elements not return to their normal positions the BS3-C/L will detect this and not allow itself to be reset until the fault is corrected. Since there is a simultaneous action between the two test inputs, both MPCE must be activated within 500mS.

  • Page 20: Section 7-Led Indicators

    7 LED I NDICATORS The BS3-C/L has LED indicators for each set of sensors, each relay output and for the status of the power supply. The Sensor 1 light will give information about sensor 1 and the Sensor 2 light about sensor 2.

  • Page 21: Section 8-Diagnostics, Maintenance & Warranty

    A I N T E N A N C E The Checkout Procedure (appendix A) should be performed at least every three months or more frequently depending on machine usage. Only qualified SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...
  • Page 22 No representation or warranty, expressed or implied, made by any sales representative, distributor, or other agent or representative of STI which is not specifically set forth herein shall be binding upon STI. STI shall not be liable for any incidental or consequential damages, losses or expenses directly or indirectly arising from the sale, handling, improper application or use of the goods or from any other cause relating thereto and STI’s liability hereunder, in any case, is...
  • Page 23 8 .5 . R E T U R N S Whenever you return a product to STI (even if the product is in warranty) please contact our Customer Service Department and request a Returned Goods Authorization number. Goods that are returned for credit are subject to final review by STI and are subject to restocking charges as determined by STI.

  • Page 24: Section 9-Wiring Diagrams

    NOTE: Terminal 1 and 8 are internally connected and Terminal 25 and 32 are internally connected. BS3-XC/RC BS3-XL/RL Wire Color White Test Brown Blue Black Test + SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...
  • Page 25 Terminal 25 and 32 are internally connected. MPCE1 MPCE2 To Safety Relay Controlled Devices BS3-XC/RC BS3-XL/RL Wire Color White Test Brown Blue Black Test + SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...
  • Page 26 NOTE: Terminal 1 and 8 are internally connected and Terminal 25 and 32 are internallY connected. BS3-XC/RC BS3-XL/RL Wire Color White Test Brown Blue Black Test + SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...
  • Page 27 Terminal 25 and 32 are internally connected. MPCE1 MPCE2 To Safety Relay Controlled Devices BS3-XC/RC BS3-XL/RL Wire Color White Test Brown Blue Black Test + SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...
  • Page 28 NOTE: Terminal 1 and 8 are internally connected and Terminal 25 and 32 are internally connected. BS3-XC/RC BS3-XL/RL Wire Color White Test Brown Blue Black Test + SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...
  • Page 29 Terminal 25 and 32 are internally connected. MPCE1 MPCE2 To Safety Relay Controlled Devices BS3-XC/RC BS3-XL/RL Wire Color White Test Brown Blue Black Test + SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...
  • Page 30 NOTE: Terminal 1 and 8 are internally connected and Terminal 25 and 32 are internally connected. BS3-XC/RC BS3-XL/RL Wire Color White Test Brown Blue Black Test + SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...
  • Page 31 Terminal 25 and 32 are internally connected. MPCE1 MPCE2 To Safety Relay Controlled Devices BS3-XC/RC BS3-XL/RL Wire Color White Test Brown Blue Black Test + SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...
  • Page 32 NOTE: Terminal 1 and 8 are internally connected and Terminal 25 and 32 are internally connected. BS3-XC/RC BS3-XL/RL Wire Color White Test Brown Blue Black Test + SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...
  • Page 33 Terminal 25 and 32 are internally connected. MPCE1 MPCE2 To Safety Relay Controlled Devices BS3-XC/RC BS3-XL/RL Wire Color White Test Brown Blue Black Test + SCIENTIFIC TECHNOLOGIES INC. BeamSafe BS3-C/L Safety Sensor System Rev.B Call: 1/888/510-4357 in USA and Canada...

  • Page 34: Section Appendix A-- Checkout Procedure Log

    R O C E D U R E The following checkout procedure must be performed by qualified personnel initial BS3-C/L Sensor System installation and at least every three months or more frequently depending on a machine usage and company guidelines.

  • Page 35: Section Appendix B-- Test Procedure

    ❏ Pass 5. Next, interrupt the sensing beam with a proper size test object to check the effectiveness of the BS3-C/L Sensor system. Verify that the red indicator is on and the green indicator is off while the test ❏ Fail object is anywhere in the sensing beam.
