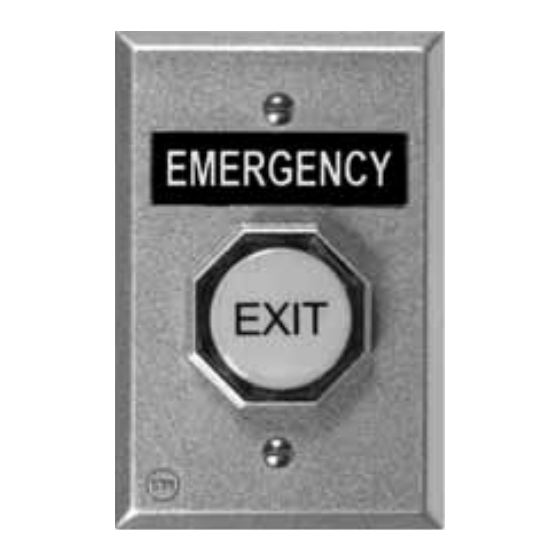

UB-1 Universal Button
UB-1/LTUL Universal Button with Latching Timer
For UB-1/LTUL the enclosed timer is to be used and installed per the enclosed LT-1UL installation sheet.
For access control installations, power for the LT-1UL Timer must be supplied by a power source listed to
UL294. When used for access control, this device shall be used as part of an access controlled egress door
system. It is up to the local AHJ to allow use of this device in place of an automatic sensor. For higher security
installations, lower time limits should be used.
Pour les modèles UB-1/LTUL, la minuterie intégrée doit être installée et utilisée suivant la fiche d'installation
LT-1UL fournie. Pour les installations de contrôle d'accès, l'alimentation de la minuterie LT-1 doit être fournie
par une source homologuée UL294. Lorsque cet appareil est utilisé aux fins de contrôle d'accès, il doit faire
partie d'un système de porte de sortie à accès contrôlé. Il incombe donc à l'AHJ local d'autoriser l'utilisation
de cet appareil au lieu d'un capteur automatique. Pour les installations de sécurité plus renforcée, des délais
inférieurs doivent être utilisés.
We protect the things that protect you.
ADA
Compliant
ADA
Compliant
®
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for STI UB-1
Summary of Contents for STI UB-1
- Page 1 UB-1/LTUL Universal Button with Latching Timer Compliant For UB-1/LTUL the enclosed timer is to be used and installed per the enclosed LT-1UL installation sheet. Compliant For access control installations, power for the LT-1UL Timer must be supplied by a power source listed to UL294.
- Page 2 ADA and other applicable electrical codes. For Type SM (Self Monitored) rating, the term Emergency message may be installed on Model UB-1 when used in a system with a Listed, compatible Releasing Device. All other applications are rated Type NM (Non- Monitored) for non-emergency signaling.
- Page 3 NEW DRAWING 1. TO CHANGE BUTTON COLOR AND ROUND MESSAGE NEW DRAWING SPRING Power In 12–30 VDC/VAC Safety Tech. Int’l Inc. P/N UB-11. Ver 1.0 wwyy Power In 12–30 VDC/VAC Safety Tech. Int’l Inc. P/N UB-11. Ver 1.0 wwyy ACTUATOR BUTTON 1.
- Page 4 3. INSTALL OR REMOVE CONTACT BLOCK INSTALL To attach, align tabs (as shown) and gently snap top, TOP TAB then bottom. Be sure to hear BOTH tabs snap into place. (Can be reversed if wiring comes from the top of the box.) REMOVE Repeat STEP A for the top and bottom tab before removing contact block.
- Page 5 4. ATTACH POWER FOR MESSAGE LED (if desired) (See drawing) TO SUPERVISED STATION OR AUXILLARY DEVICE LED + LED – BUTTON LED MAG LOCK MESSAGE LENS PCB 12–24VDC NORMAL POSITION BUTTON ACTIVATED MAGNETIC LOCK BUTTON LAMP MESSAGE LAMP DIFFUSER NOTE LED connection: The polarity shown is factory installed.
- Page 6 12–24VDC NORMAL POSITION BUTTON ACTIVATED 5. SURFACE MOUNT OPTION MAGNETIC LOCK BUTTON LAMP MESSAGE LAMP DRILL (4) 3/16 in. DIAMETER HOLES #8-10 7/8 in. ANCHOR (4) PROVIDED DIFFUSER DRILL POINT PROVIDED TOP & BOTTOM FOR 1/2 in. CONDUIT. DRILL AS NEEDED. LED PCB #6 x 1 1/4 in.
-
Page 7: Custom Labels
(2) PROVIDED *ADD ON 7. CUSTOM LABELS To create your own custom label, size to fit in .48h x 2.23w as shown below. Also available online at: www.sti-usa.com/ublabel .48 in. 2.23 in. WARRANTY Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components). - Page 8 • www.sti-usa.com Taylor House • 34 Sherwood Road • Bromsgrove, Worcestershire • B60 3DR • England Tel: +44 (0)1527 520 999 • Fax: +44 (0)1527 501 999 • info@sti-emea.com • www.sti-emea.com Printed in USA Inst. Sht. UB-1 Button OCT2018...
