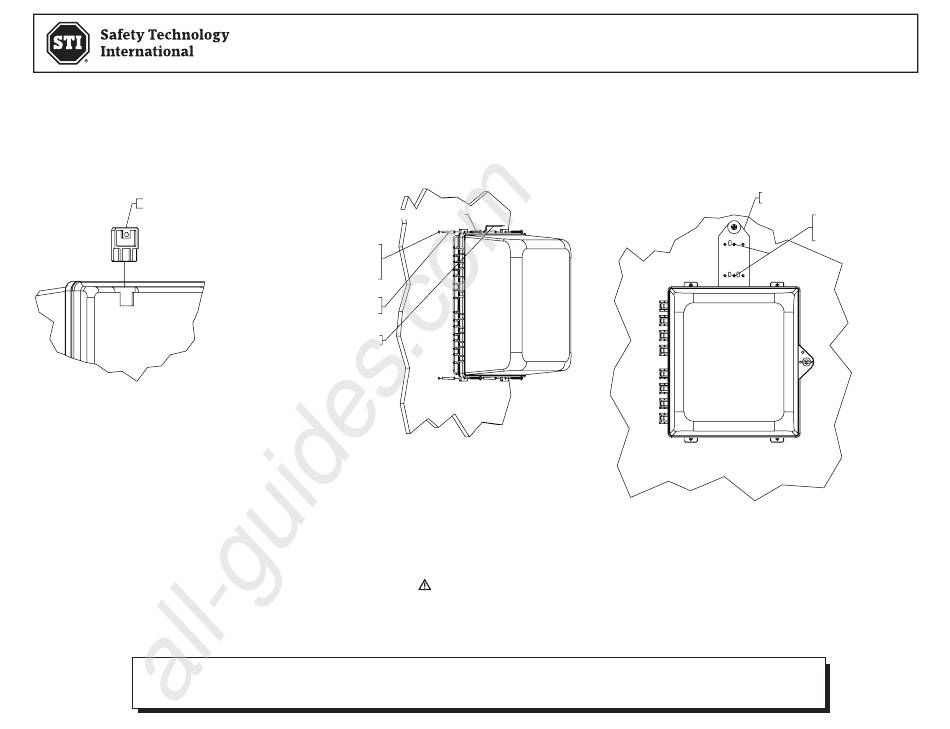

STI 7535MED Quick Installation

STEP 1
INSERT ALL (4) TABS INTO
SLOTS IN ENCLOSURE
E IN TOP
ES EXIT.
/16 in.
LL.
STEP 3
All manuals and user guides at all-guides.com
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com
STEP 2
PLACE ENCLOSURE ON WALL AND
MARK ALL (4) HOLE LOCATIONS.
REMOVE ENCLOSURE FROM WALL.
DRILL (4) 1/4 in. DIAMETER
HOLES IN WALL.
INSERT ALL (4) ANCHORS INTO WALL.
MOUNT ENCLOSURE ON WALL
USING THE (4) #10 x 1-1/2 in. SCREWS.
MAKE SURE REED SWITCH WIRES
EXIT HOLE IN TOP SIDE OF CABINET.
SELECT–ALERT KEY
SWITCH PLATE 09723
CENTER PLATE OVER HOLE IN TOP
OF CABINET WHERE WIRES EXIT.
MARK AND DRILL (2) 3/16 in.
DIAMETER HOLES IN WALL.
QUICK INSTALLATION OF STI-7535MED
All specifications and information shown were current as of publication and are subject to change without notice.
#10 x 1-1/2 in. SCREWS
WARNING: This product can expose you to chemicals including Dichloromethane, which is known to the
State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to
cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Three year warranty or a one year limited warranty (from date of purchase) on most products. See
website for details. Electronic warranty form at www.sti-usa.com/wc14.
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England
Tel: +44 (0)1527 520 999 • Fax: +44 (0)1527 501 999
E-mail: info@sti-emea.com • Web: www.sti-emea.com
STEP 3
SELECT–ALERT KEY
SWITCH PLATE 09723
STEP 2
#10 x 1-1/2 in. SCREWS
PLACE ENCLOSURE ON WALL AND
MARK ALL (4) HOLE LOCATIONS.
REMOVE ENCLOSURE FROM WALL.
DRILL (4) 1/4 in. DIAMETER
HOLES IN WALL.
INSERT ALL (4) ANCHORS INTO WALL.
MOUNT ENCLOSURE ON WALL
USING THE (4) #10 x 1-1/2 in. SCREWS.
MAKE SURE REED SWITCH WIRES
EXIT HOLE IN TOP SIDE OF CABINET.
7535MEDISO QUICK MAY2008
CENTER PLATE OVER HOLE IN TOP
OF CABINET WHERE WIRES EXIT.
MARK AND DRILL (2) 3/16 in.
DIAMETER HOLES IN WALL.
