- Page 1 HG 2620 E HG 2220 E Information HG 2620 E HG 2220 E 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 2 English IMPORTANT SAFETY INSTRUCTIONS READ THESE INSTRUCTIONS UL WARNING: Read this instruction book before using. To reduce risk of fire or electric shock, do not expose to rain or moisture. Store indoors. Double insulated. When servicing, use only identical replace- ment parts.
- Page 3 English 15. Do not use in bath or over water. 16. Safety glasses should be worn when using this tool. 17. It is recommended that leather gloves be worn when using a hot air tool. 18. Always unplug after use. 19.
-
Page 4: Extension Cords
English Thank you Thank you for choosing a STEINEL hot air tool. This tool can be used for completing a wide range of jobs safely and reliably, such as soldering, welding PVC, shaping, drying, shrink-fitting, stripping paint, etc. All STEINEL tools are manufactured to the highest standards and undergo a strict process of quality control. -
Page 5: For Your Safety

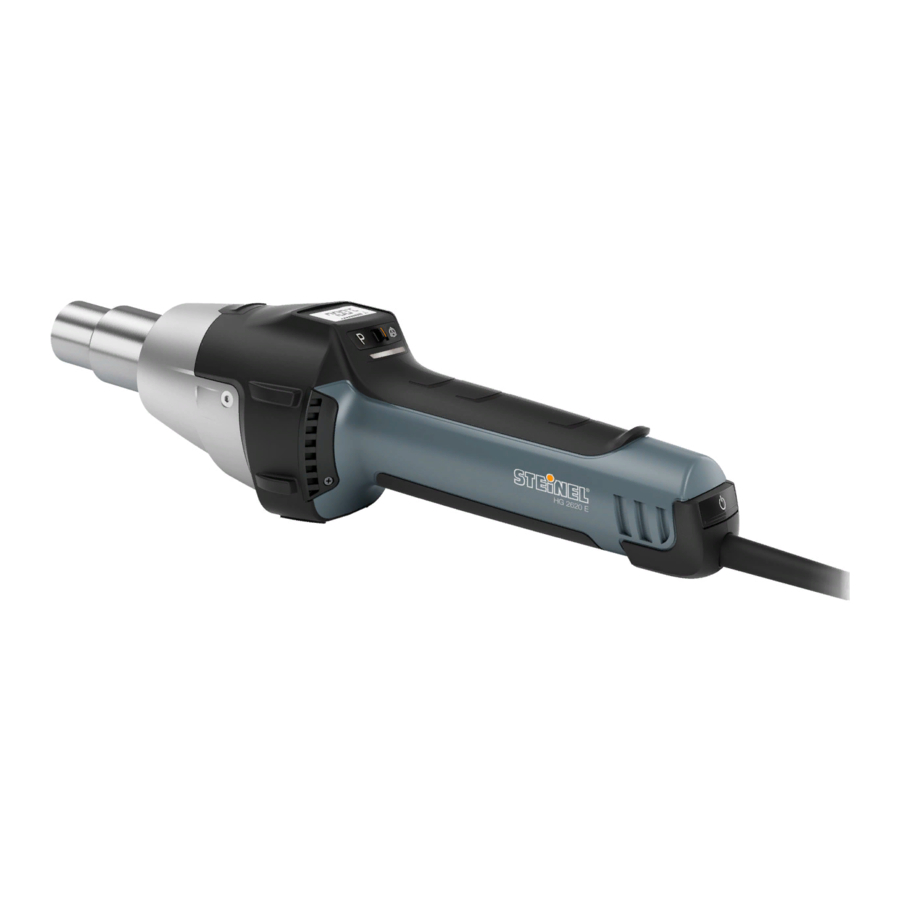

English For Your Safety (HG 2620 E / HG 2220 E) First time use, a small quantity of smoke may occur when the tool is used for the first time. This smoke is caused by binding agents released from the heater’s insulating film during the first time of use. - Page 6 English HG 2620 E Tool features HG 2620 E Stainless steel outlet nozzle ON/OFF Button Removable guard sleeve Joystick (for setting airflow and temperature) Air inlet with integrated fine dust filter Button for airflow rate mode Soft coating for non-slip standing...
- Page 7 The airflow rate can be varied from a minimum of 2 cfm to a maximum of 13 cfm. Temperature measurement on the workpiece We recommend the STEINEL HG Scan PRO temperature scanner (Prod. No.: 110033508) for detecting the temperature at the workpiece.
- Page 8 English Programming mode [P] Four programs are factory-set for the most common types of work. Press button "P" for programming mode. Number 1 is displayed for programme 1. Continuing to press the programme button will take you to programs 2-4. Pressing the button again will return the tool to normal operation. Preset programs Program Temperature °F (°C)
-
Page 9: Maintenance
5. Insert new cable and secure in reverse order (1. Firmly screw down mains terminals etc.). Changing the heating element The plug-in heating element in the HG 2620 E can be changed in a matter of seconds. Important! Disconnect tool from power supply. -
Page 10: Other Functions
To avoid altering the chosen settings unintentionally, the HG 2620 E comes with a Lockable Override Control Function (LOC). To find out how to set the LOC function, please contact our Service Department on +888-298-8298. Technical Specifications HG 2620 E Voltage 120 V, 60 Hz Output 1750 W max. - Page 11 English Applications HG 2620 E Here are some of the applications you can use STEINEL hot air tools for. This selection is by no means exhaustive – no doubt you can immediately think of other examples. - Welding bitumen. - Welding tarpaulins and films.
- Page 12 13.06.14 11:06 Seite 2 English Accessories HG 2620 E Your retailer has a wide range of accessories for you to choose from. HG2420E_DE_HG2120E_HG2320E 13.06.14 11:06 Seite 2 0E_DE_HG2120E_HG2320E 13.06.14 11:06 Seite 2 220 E - 2 - - 2 -...
- Page 13 English Accessories HG 2620 E 1 Round nozzle, 5 mm Prod. No. 110048652 19 Fast welding nozzle, 4 mm, with narrow air slot Prod. No. 110039076 - 2 - 2 Round nozzle, 10 mm Prod. No. 110048653 - 2 - 20 Fast welding nozzle, 5 mm, 3 Round nozzle, extended, Prod.
- Page 14 Spare Parts List HG 2620 E Shape depends on regional version Pos. Part No. HG 2620 E, Type 3518 Spare Part Housing Set HG 2620 E US 110050676 Spare Part Protection Tube HG 2620 US 110040719 Spare Part Dust Particle Filter HG 2620 110050697...
- Page 15 English Wiring Diagram HG 2620 E - 15 - 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 16 English HG 2220 E Tool features HG 2220 E Stainless steel outlet nozzle Multiple-stage switch for adjusting airflow (2-stage) Removable guard sleeve Thumbwheel for setting temperature Air inlet with integrated fine dust filter Soft grip handle for comfortable operation Soft coating for non-slip standing Replaceable mains power cord Heavy-duty rubber-insulated power cord Tool description - Operation HG 2220 E...
- Page 17 English Maintenance Fine dust filter The HG 2220 E has an integrated fine dust filter . To clean it (with compressed air), undo screws (a), take off cover and remove filter. Repair Changing the power cord Important! Disconnect tool from power supply. Let have electrical repairs only be executed by fully trained licensed electricians.
- Page 18 English Technical Specifications HG 2220 E Voltage 120 V, 60 Hz Output 1500 W Stage Airflow rate 4 - 7 cfm 6 - 12 cfm Temperature 120 - 1100 °F 120 - 1100 °F 50 - 600 °C 50 - 600 °C Temperature setting At thumbwheel in 9 steps Power Cord...
- Page 19 English Applications HG 2220 E Shrink tubing on cables: The shrink tubing is slipped over the section you want to insulate and heated with hot air. The tubing shrinks by approx. 50% in diameter to give a sealed union. Shrinking is particularly fast and even using reflector noz- zles.Sealing and stabilizing cable breaks, insulating soldered joints, gathering cable runs, sheathing terminal blocks.
- Page 20 English Plastic types: Material Application types Distinguishing characteristics Rigid PVC Piping, fittings, boards, building profiles, Incineration test: carbonizes in the flame and technical molded components, etc. extinguishes on its own Welding temperature Smoke odor: pungent, of hydrochloric acid 550 - 650 °F (290 - 345 °C) Drop test: crashing Plasticized PVC Floor coverings, wallpaper, hoses, sheets,...
- Page 21 English Special Accessories 1 Window nozzle 75 mm Prod No. 110048749 11 Reflector nozzle 14 mm Prod No. 110048752 2 Window nozzle 50 mm Prod No. 110048750 12 Reflector nozzle with sieve Prod No. 110038724 3 Spreader nozzle 75 mm Prod No. 110048749 13 Pinpoint reducer Prod No.
- Page 22 English Spare Parts List HG 2220 E Shape depends on regional version Pos. Prod. No. HG 2220 E, Type 3517 Spare Part Housing Set HG 2220 E US 110050675 Spare Part Protection Tube HG 2220 US 110040785 Spare Part Dust Particle Filter HG 2220 E US 110040786 Spare Part Fine Dust Particle Filter HG 2220 E US 110040787...
- Page 23 English Wiring Diagram HG 2220 E - 23 - 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 24: Limited Warranty
STEINEL, tools that have been modified in any way or mounted onto machinery/equip- ment, and tools that have been put into continuous operation. These are hand held power tools and are intended for use as such. Any other use voids STEINEL’s warranty. Warranty and Repair Procedures In the event of product failure, please call STEINEL customer service directly at (800) 852-4343. -
Page 25: Other Rights
Company’s total liability for any or all breaches of any warranty exceed the actual purchase price of the Product. Other rights This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Steinel America Inc. - 25 - 1.888.610.7664 www.calcert.com sales@calcert.com...
