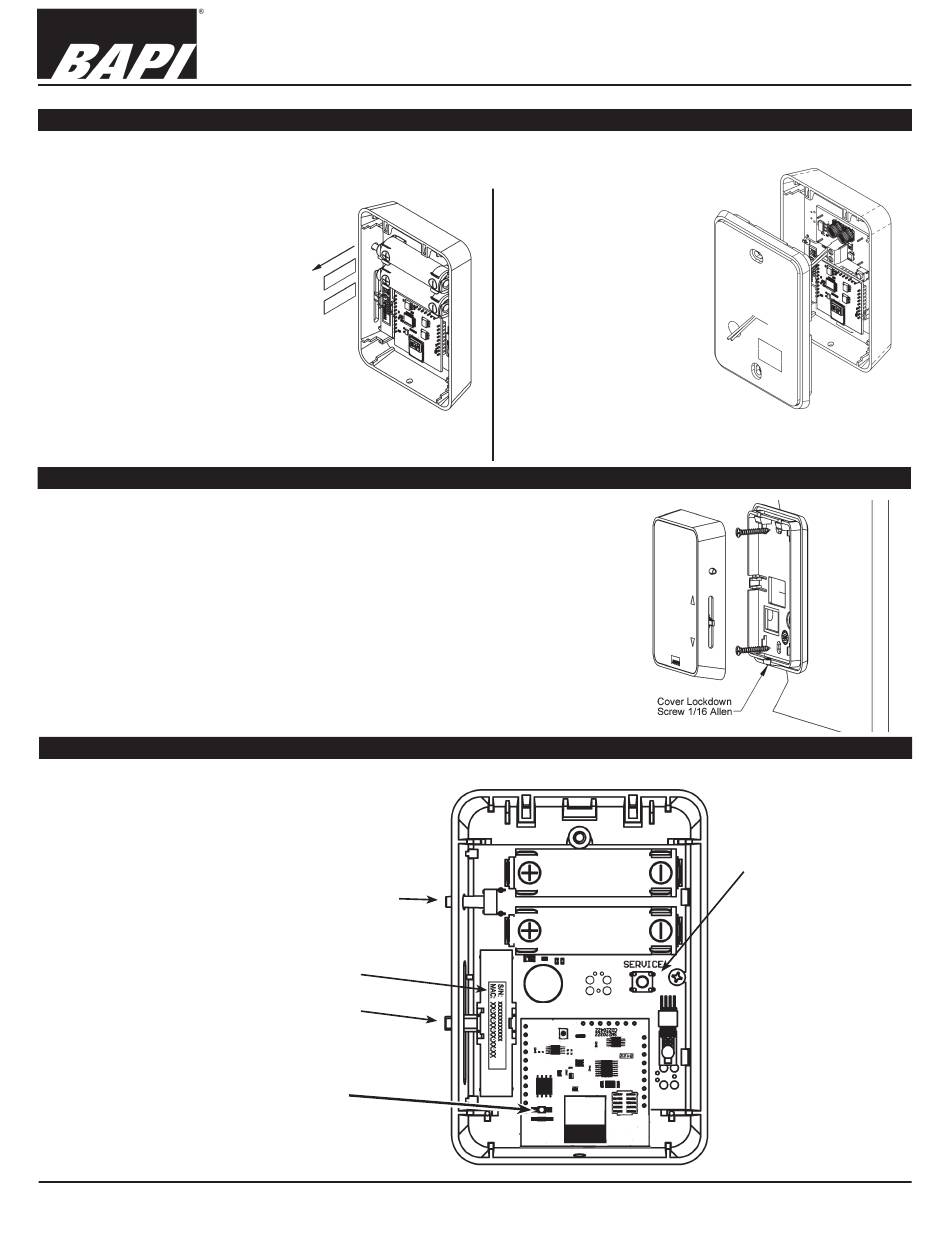

Initial Activation
For convenience, BAPI recommends pairing the sensor to the intended receiver or gateway prior to mounting either
device. Both devices need to be powered-on to pair. See the receiver or gateway
installation manual for instructions on pairing the sensor.
Battery Power Units
The unit comes with two pre-
installed batteries. To activate the
unit, remove the base plate and
pull out the two battery insulator
tabs as shown in Fig. 2. Press
the Service button and the Service
LED should flash once to confirm
power. If the sensor will not be
commissioned for more than a
couple of days, BAPI recommends
reinstalling both battery insulator
tabs to conserve battery life.
Drywall Mounting
1. Place the base plate vertically against the wall where you
want to mount the sensor and mark the two mounting holes.
2. Drill two 3/16" (4.8mm) holes in the center of each marked
mounting hole. Insert a drywall anchor into each hole.
3. Secure the base to the drywall anchors using the #6 x 1"
(25mm) mounting screws provided.
4. Attach Cover by latching it to the top of the base, rotating
the cover down and snapping it into place. Secure the cover
by backing out the lock-down screw using a 1/16" (1.6mm)
Allen wrench until it is flush with the bottom of the cover.
Operation
Power the unit as described in "Initial Activation"
section. Follow the gateway or receiver instructions
for pairing the unit and changing the adjustable
settings. (The instructions are available on the BAPI
website.)
Pressing the optional Override Button
immediately sends an override signal
that the room is occupied.
MAC Address label
Moving the optional Setpoint
Slider increases or decreases
the temperature setpoint.
Green LED flashes when
the "Service" button is
pressed or during the
Building Automation Products, Inc., 750 North Royal Avenue, Gays Mills, WI 54631 USA
Tel:+1-608-735-4800 • Fax+1-608-735-4804 • E-mail:sales@bapihvac.com • Web:www.bapihvac.com
BAPI-Stat "Quantum" Wireless Room Temperature
Fig. 2: Battery
insulator tab removal
pairing process.
or Temperature/Humidity Sensor
Wire Power Units
Wired power units have
a power terminal block
near the top center of the
unit. To activate the unit,
apply 9 to 30 VDC (50
mA max) or 15 to 28 VAC
(50 mA max) as shown in
Fig. 3. Press the Service
button and the Service
LED should flash once to
confirm power.
Fig. 4:
BAPI-Stat
"Quantum"
Mounting
Installation & Operations
rev. 12/08/23
Fig. 3: Power applied to
terminal block
Pressing the
"Service" button
on the circuit
board will force a
transmission.
Fig. 5:
Battery Powered
BAPI-Stat "Quantum"
Circuit Board with
optional setpoint &
override
(The functionality is
the same for wire
power units.)
