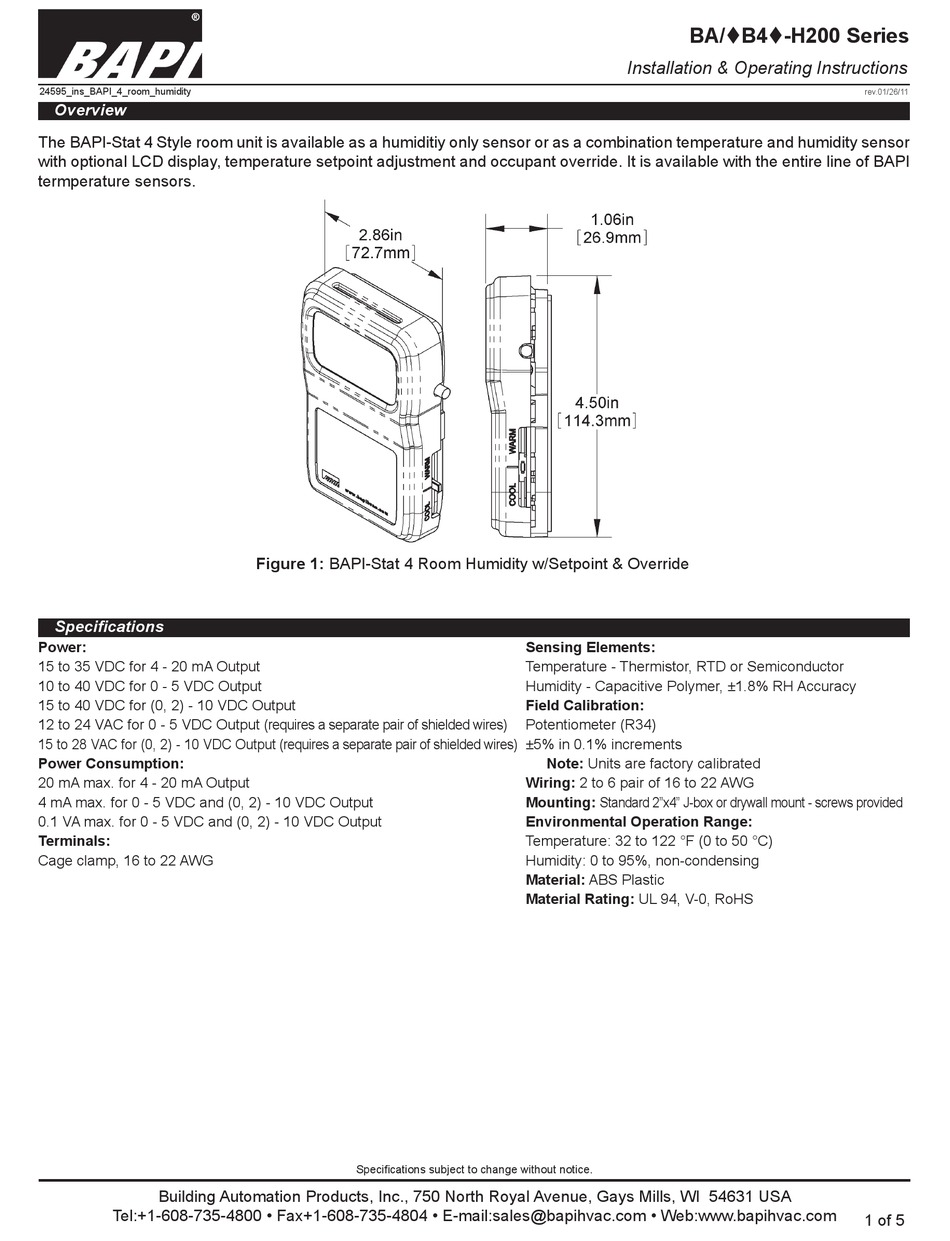

BAPI BA-H200 Series Installation & Operating Instructions

24595_ins_BAPI_4_room_humidity
Overview
The BAPI-Stat 4 Style room unit is available as a humiditiy only sensor or as a combination temperature and humidity sensor
with optional LCD display, temperature setpoint adjustment and occupant override. It is available with the entire line of BAPI
termperature sensors.

Specifications

Power:
15 to 35 VDC for 4 - 20 mA Output
10 to 40 VDC for 0 - 5 VDC Output
15 to 40 VDC for (0, 2) - 10 VDC Output
12 to 24 VAC for 0 - 5 VDC Output (requires a separate pair of shielded wires)
15 to 28 VAC for (0, 2) - 10 VDC Output (requires a separate pair of shielded wires)
Power Consumption:
20 mA max. for 4 - 20 mA Output
4 mA max. for 0 - 5 VDC and (0, 2) - 10 VDC Output
0.1 VA max. for 0 - 5 VDC and (0, 2) - 10 VDC Output
Terminals:
Cage clamp, 16 to 22 AWG
Building Automation Products, Inc., 750 North Royal Avenue, Gays Mills, WI 54631 USA
Tel:+1-608-735-4800 • Fax+1-608-735-4804 • E-mail:sales@bapihvac.com • Web:www.bapihvac.com
Figure 1: BAPI-Stat 4 Room Humidity w/Setpoint & Override
Specifications subject to change without notice.
BA/B4-H200 Series
Installation & Operating Instructions
Sensing Elements:
Temperature - Thermistor, RTD or Semiconductor
Humidity - Capacitive Polymer, ±1.8% RH Accuracy
Field Calibration:
Potentiometer (R34)
±5% in 0.1% increments
Note: Units are factory calibrated
Wiring: 2 to 6 pair of 16 to 22 AWG
Mounting: Standard 2"x4" J-box or drywall mount - screws provided
Environmental Operation Range:
Temperature: 32 to 122 °F (0 to 50 °C)
Humidity: 0 to 95%, non-condensing
Material: ABS Plastic
Material Rating: UL 94, V-0, RoHS
rev.01/26/11
