BAPI -Stat Quantum Installation & Operations

49875_Wireless_BLE_Quantum_Temp_Hum
Overview and Identification
● Optional temperature setpoint and occupant override
● User adjustable settings via receiver or WAM
● Onboard memory to store readings when
communication is interrupted
● Transmits to a digital Gateway or a
wireless-to-analog Receiver
The BAPI-Stat "Quantum" Wireless Sensor measures
the room temperature or temperature/humidity and
transmits the data via Bluetooth Low Energy to a
receiver or gateway. It is available with optional
temperature setpoint and occupancy override.
Adjustable Settings
BAPI's wireless devices have several settings that can be can be field adjusted to suit the needs of the installation. All
settings are configured by either BAPI's cloud based Wireless Asset Monitoring (WAM) or the receiver. (See the WAM
or receiver instructions documents available on the BAPI website for more information on adjusting the settings.)
Sample Rate/Interval – The time between when the sensor wakes up and takes a reading. The available values
are 10 sec, 30 sec, 1 min, 3 min or 5 min with the gateway, or 30 sec, 1 min, 3 min or 5 min with the receiver.
Transmit Rate/Interval – The time between when the sensor transmits the readings to the gateway or receiver.
The available values are 30 sec, 1, 2, 3, 4, 5, 10, 15, 20 or 30 minutes, or 1, 6 or 12 hours with the gateway, or 1, 5, 10
or 30 minutes with the receiver.
Delta Temperature – The change in temperature between a sample and the last transmission that will cause the
sensor to override the transmit interval and immediately transmit the changed temperature. The available values are
0.1, 0.2, 0.3, 0.4, 0.5, 1, 2, 3, 4, 5 °F or °C with the gateway, and 1 or 3 °F or °C with the receiver.
Delta Humidity – The change humidity between a sample and the last transmission that will cause the sensor to
override the transmit interval and immediately transmit the changed humidity. The available values are 0.5, 1, 2, 3, 4 or
5 %RH with the gateway, and 3 or 5 %RH with the receiver.
Temperature Min/Max – The maximum or minumum temperature that will cause the sensor to override the
transmit interval and immediately transmit a reading to the gateway. (Only available when using a gateway.)
Temperature Offset – Adjusts the temperature value being transmitted to match that of a calibrated reference
device. The available values are ±0.1, 0.2, 0.5, 1, 2, 3, 4 or 5 °F or °C. (Only available when using a gateway.)
Humidity Offset – Adjusts the humidity value being transmitted to match that of a calibrated reference device. The
available values are ±0.5, 1, 2, 3 or 5 %RH. (Only available when using a gateway.)
Associated Receiver or Gateway
RECEIVER (Wireless-to-Analog)
The wireless receiver from BAPI receives the data from
one or more wireless sensors. The data is then transferred
to the analog output modules and converted to an analog
voltage or resistance. The receiver supports up to 32
sensors and up to 127 different analog output modules.
GATEWAY
The wireless gateway receives the data from one or more wireless sensors. The gateway then
provides the data to the cloud via MQTT. The gateway also sends a confirmation signal to each
sensor upon a successful reception of data. The gateway supports up to 32 sensors.
Please see BAPI's Wireless Quick Start Guide, or the gateway or receiver
instructions available on the BAPI website (www.bapihvac.com/gateway-quick-start)
to establish communication between the sensors and the gateway or receiver.
Building Automation Products, Inc., 750 North Royal Avenue, Gays Mills, WI 54631 USA
Tel:+1-608-735-4800 • Fax+1-608-735-4804 • E-mail:sales@bapihvac.com • Web:www.bapihvac.com

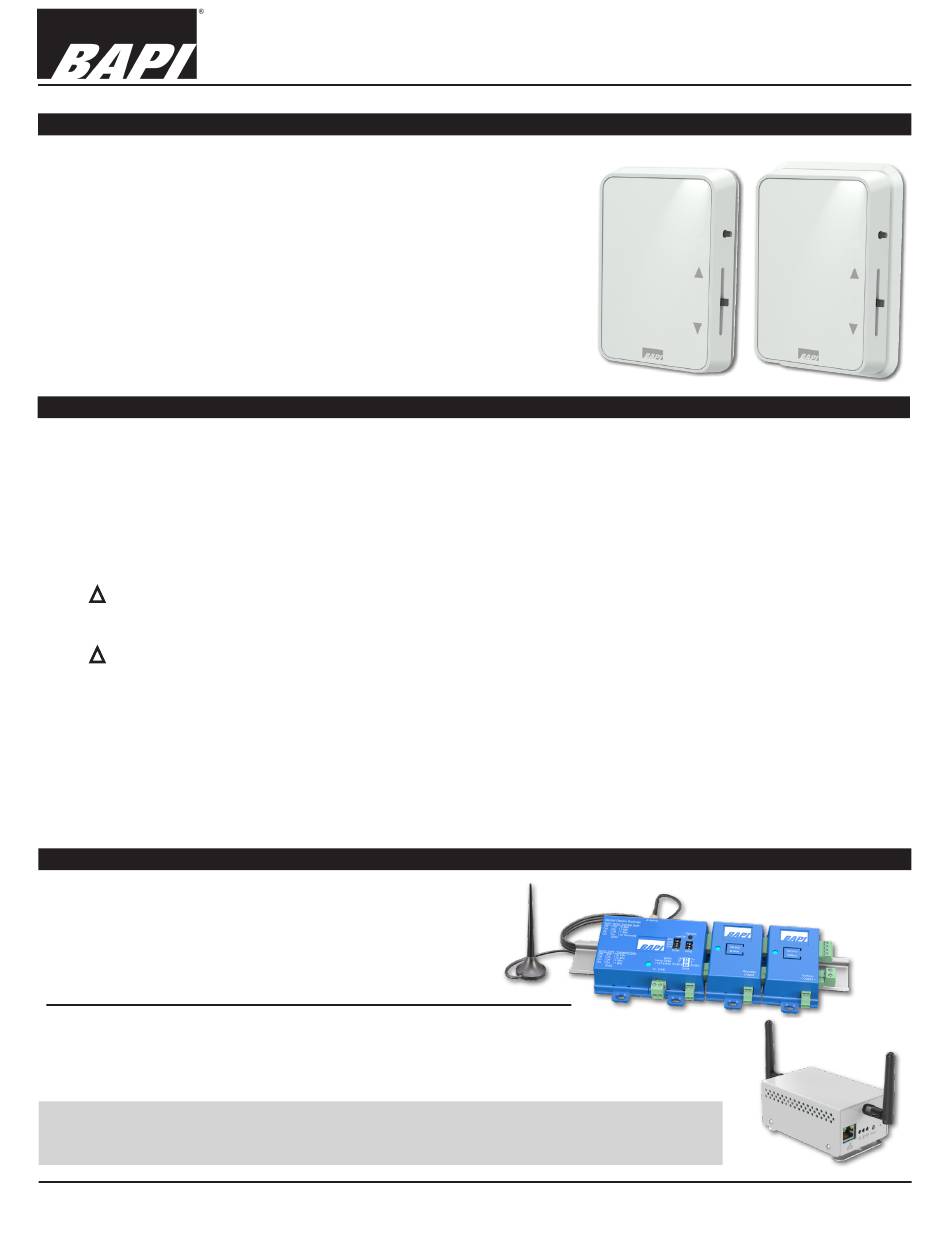

BAPI-Stat "Quantum" Wireless Room Temperature
with optional
Setpoint &
(Right image
shown with
optional 60mm
or Temperature/Humidity Sensor
Sensors
Override
mounting
base)
Installation & Operations
rev. 12/08/23
Wireless Receiver with
Analog Output Modules
Wireless
Gateway
1 of 4
