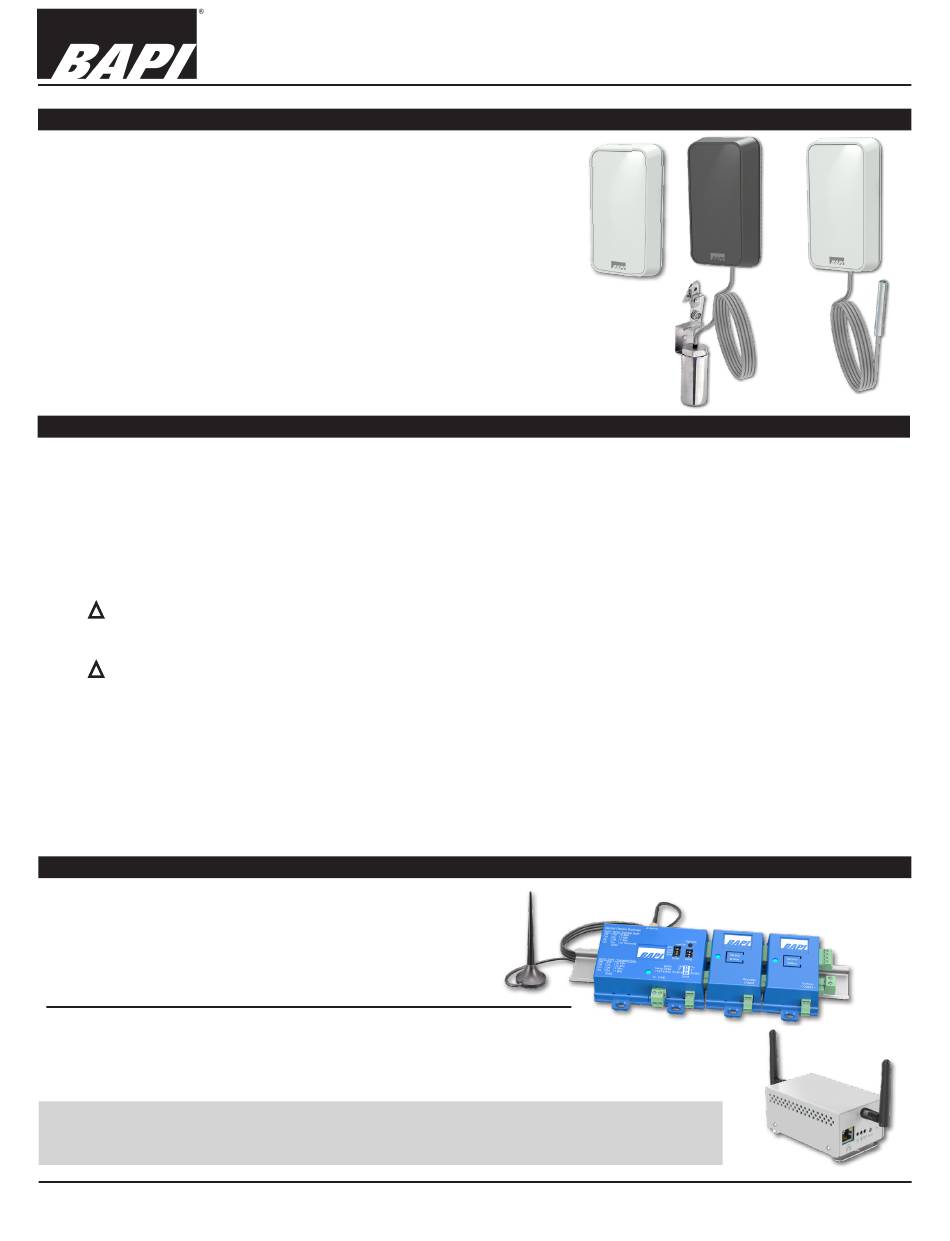

49524_Wireless_BLE_Quantum_Slim_Temp_Hum
Overview and Identification
● Built in or remote temperature sensor
● User adjustable settings via receiver or WAM
● Onboard memory to store readings
● Transmits to a digital Gateway or a wireless-to-analog Receiver
The BAPI-Stat "Quantum Slim" Wireless Sensor measures the
temperature or Temp/Humidity and transmits the data via Bluetooth
Low Energy to a receiver or gateway.
The units are perfect for refrigerator and freezer cases. The sensor
body mounts on the outside of freezers, and either inside or outside
of refrigerators. It is available with an internal sensor or an external
probe or thermobuffer. The external cable fits between the door seal
or through a hole without affecting appliance efficiency.
Adjustable Settings
BAPI's wireless devices have several settings that can be can be field adjusted to suit the needs of the installation. All
settings are configured by either BAPI's cloud based Wireless Asset Monitoring (WAM) or the receiver. (See the WAM or
receiver instructions documents available on the BAPI website for more information on adjusting the settings.)
Sample Rate/Interval – The time between when the sensor wakes up and takes a reading. The available values are
10 sec, 30 sec, 1 min, 3 min or 5 min with the gateway, or 30 sec, 1 min, 3 min or 5 min with the receiver.
Transmit Rate/Interval – The time between when the sensor transmits the readings to the gateway or receiver. The
available values are 30 sec, 1, 2, 3, 4, 5, 10, 15, 20 or 30 minutes, or 1, 6 or 12 hours with the gateway, or 1, 5, 10 or 30
minutes with the receiver.
Delta
Temperature – The change in temperature between a sample and the last transmission that will cause the
sensor to override the transmit interval and immediately transmit the changed temperature. The available values are 0.1,
0.2, 0.3, 0.4, 0.5, 1, 2, 3, 4, 5 °F or °C with the gateway, and 1 or 3 °F or °C with the receiver.
Delta
Humidity – The change humidity between a sample and the last transmission that will cause the sensor to
override the transmit interval and immediately transmit the changed humidity. The available values are 0.5, 1, 2, 3, 4 or 5
%RH with the gateway, and 3 or 5 %RH with the receiver.
Temperature Min/Max – The maximum or minumum temperature that will cause the sensor to override the transmit
interval and immediately transmit a reading to the gateway. (Only available when using a gateway.)
Temperature Offset – Adjusts the temperature value being transmitted to match that of a calibrated reference device.
The available values are ±0.1, 0.2, 0.5, 1, 2, 3, 4 or 5 °F or °C. (Only available when using a gateway.)
Humidity Offset – Adjusts the humidity value being transmitted to match that of a calibrated reference device. The
available values are ±0.5, 1, 2, 3 or 5 %RH. (Only available when using a gateway.)
Associated Receiver or Gateway
RECEIVER (Wireless-to-Analog)
The wireless receiver from BAPI receives the data from one
or more wireless sensors. The data is then transferred to the
analog output modules and converted to an analog voltage or
resistance. The receiver supports up to 32 sensors and up to
127 different analog output modules.
GATEWAY
The wireless gateway receives the data from one or more wireless sensors. The gateway then
provides the data to the cloud via MQTT. The gateway also sends a confirmation signal to each
sensor upon a successful reception of data. The gateway supports up to 32 sensors.
Please see BAPI's Wireless Quick Start Guide, or the gateway or receiver
instructions available on the BAPI website (www.bapihvac.com/gateway-quick-start)
to establish communication between the sensors and the gateway or receiver.
Building Automation Products, Inc., 750 North Royal Avenue, Gays Mills, WI 54631 USA
Tel:+1-608-735-4800 • Fax+1-608-735-4804 • E-mail:sales@bapihvac.com • Web:www.bapihvac.com
BAPI-Stat "Quantum Slim" Wireless Temperature or
Temp/Humidity Sensor
Installation & Operations
Internal
Sensor
Thermobuffer
Wireless Receiver with
Analog Output Modules
rev. 12/14/23
Remote
Probe
Wireless
Gateway
1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BAPI BAPI-Stat Quantum Slim
Summary of Contents for BAPI BAPI-Stat Quantum Slim
- Page 1 Gateway provides the data to the cloud via MQTT. The gateway also sends a confirmation signal to each sensor upon a successful reception of data. The gateway supports up to 32 sensors. Please see BAPI’s Wireless Quick Start Guide, or the gateway or receiver instructions available on the BAPI website (www.bapihvac.com/gateway-quick-start) to establish communication between the sensors and the gateway or receiver. Building Automation Products, Inc., 750 North Royal Avenue, Gays Mills, WI 54631 USA Tel:+1-608-735-4800 •...
- Page 2 BAPI-Stat “Quantum Slim” Wireless Temperature or Temp/Humidity Sensor Installation & Operations 49524_Wireless_BLE_Quantum_Slim_Temp_Hum rev. 12/14/23 Initial Activation For convenience, BAPI recommends pairing the sensor to the intended receiver or gateway prior to mounting either device. Both devices need to be powered-on to pair. See the receiver or gateway installation manual for instructions on pairing the sensor. The unit comes with a pre-installed battery. To activate the unit, remove the base plate and pull out the battery insulator tab as shown in Fig. 1. Press the Service button and the Service LED should flash once to confirm power. If the sensor Fig. 1: Battery will not be commissioned for more than a couple of days, BAPI recommends insulator tab reinstalling the battery insulator tabs to conserve battery life. removal Drywall Mounting 1. Place the base plate vertically against the wall where you want to mount the sensor and mark the two mounting holes. 2. Drill two 3/16” (4.8mm) holes in the center of each marked Fig. 2: mounting hole. Insert a drywall anchor into each hole. BAPI-Stat “Quantum 3. Secure the base to the drywall anchors using the #6 x 1” (25mm) Slim”...
- Page 3 BAPI-Stat “Quantum Slim” Wireless Temperature or Temp/Humidity Sensor Installation & Operations 49524_Wireless_BLE_Quantum_Slim_Temp_Hum rev. 12/14/23 Wireless Sensor Reset Sensors remain paired to the gateway or receiver and output modules when power is interrupted or the batteries are removed. To break the bonds between them, the sensors need to be reset. To do this, press and hold the “Service Button” on the sensor for about 30 seconds. During those 30 seconds, the green LED will be off for about 5 seconds, then flash slowly, then begin flashing rapidly. When the rapid flashing stops, the reset is complete. The sensor can now be paired to a new receiver or gateway. To re-pair to the same receiver or gateway, you must reset the receiver or gateway. Output modules that were previously paired to the sensor do not need to be re-paired. Onboard Memory Sensor retains up to 16,000 readings should the communication become interrupted. The sensor only stores readings from missed transmissions and only when the sensor is paired to a gateway. Once communication is re-established with the gateway, the stored readings are transmitted and then erased from the sensor. The current reading and nine previous readings are sent at each transmit interval until the sensor is caught up. Temporarily shortening the transmit interval will allow the sensor to more quickly clear any stored readings. Battery Replacement 1. Remove the cover from the base plate by turning in the cover lockdown screw with a 1/16” (1.6mm) Allen wrench until the cover can be removed. 2. Remove the used battery from its holder and discard in an environmentally safe manner. Replace with a new battery in the correct orientation (Fig 6). Fig. 6: 3. Attach Cover by latching it to the top of the base, rotating the cover down and Battery snapping into place. Secure the cover by backing out the lock-down screw using a...
- Page 4 BAPI-Stat “Quantum Slim” Wireless Temperature or Temp/Humidity Sensor Installation & Operations 49524_Wireless_BLE_Quantum_Slim_Temp_Hum rev. 12/14/23 Specifications Battery Power: One included 3.6V 14505, 14500 or equiv. lithium battery (Note: Standard AA batteries are not compatible) Wire Power: 9 to 30 VDC or 24 VAC, halfwave rectified Sensor Accuracy: Temp: ±1.25°F (0.7°C) from 32 to 158°F (0 to 70°C) Humidity: ±2%RH @ 77°F (25°C), 20 to 80%RH Temperature Range: -4 to 221°F (-20 to 105°C) Transmission Distance: Varies by application* BAPI-Stat “Quantum Environmental Operation Range: Slim” Temp: -4 to 149°F (-20 to 65°C) Humidity: 10 to 90% RH, non-condensing Enclosure Material & Rating: ABS Plastic, UL94 V-0 Frequency: 2.4 GHz (Bluetooth Low Energy)
