Summary of Contents for KRESS Mission RTKn 5000

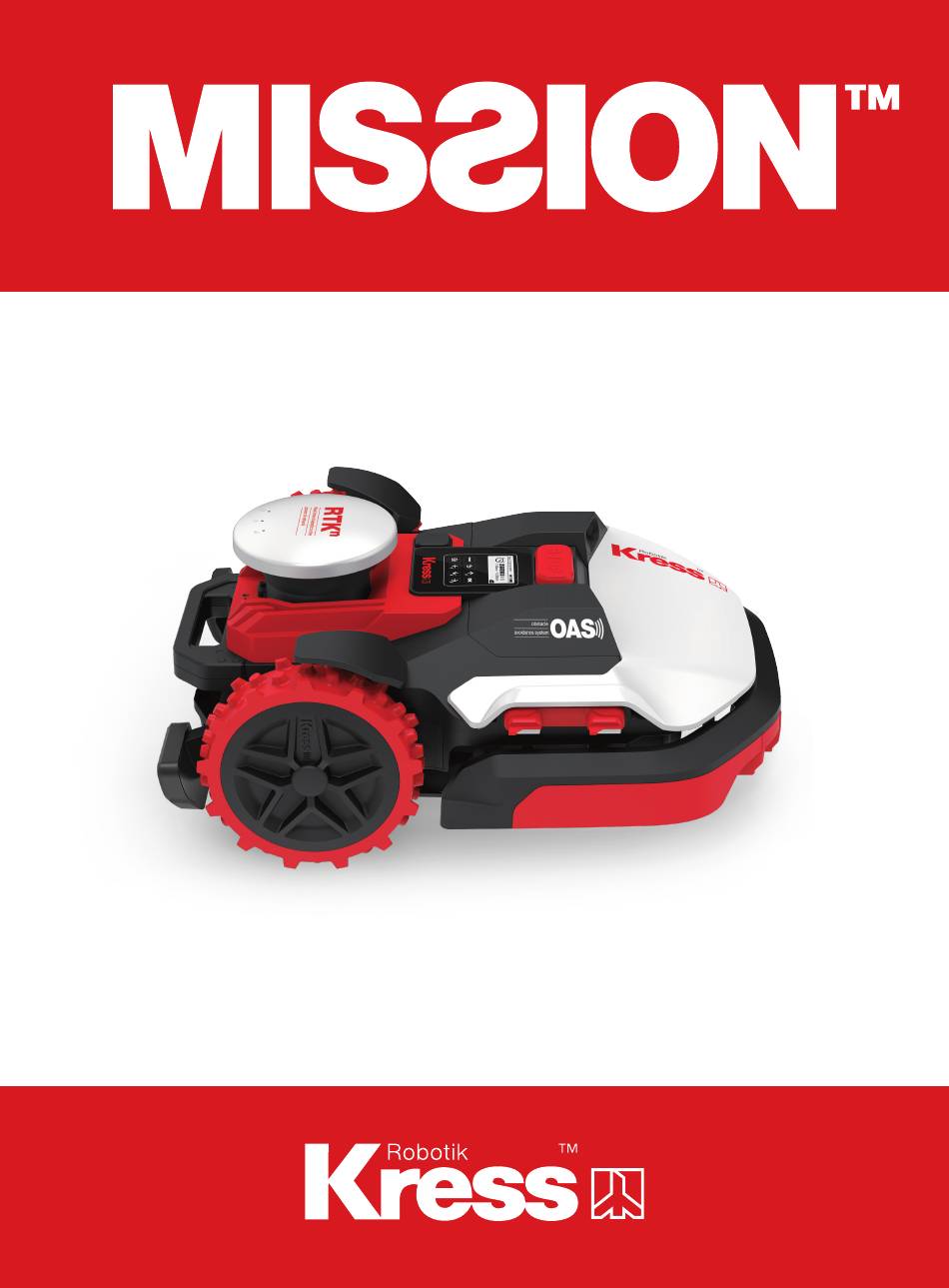

- Page 1 Owner's Manual...
- Page 3 Original instructions Owner's Manual KR172E.1 KR173E.1 KR174E.1...
-
Page 4: Product Safety
Users can view the electronic instructions understand the instructions and be familiar at https://www.kress.com/en/. with the controls and the proper use of the appliance. b) Never allow people unfamiliar with these Product safety instructions or children to use the appliance. - Page 5 - After striking a foreign object to inspect the or replacing the blades. machine for damage; a) Keep all nuts, bolts and screws tight to - If the machine starts to vibrate abnormally, be sure the appliance is in safe working and to check for damage before restarting.
- Page 6 Recharge only with the charger specified of this device and persons during device by Kress. Do not use any charger other operation. than that specifically provided for use b) To ensure compliance, operations at closer with the equipment.
- Page 7 Symbols WARNING – robotic lawnmower Do not wash the machine with a high pressure washer can be dangerous if incorrectly used. Read through the Operator’s manual carefully and understand the content before using your robotic Read operator's manual lawnmower. Detachable supply unit WARNING - Keep a safe distance from the machine when operating.
-
Page 8: Component List
Component list KR172E.1 KR173E.1 Wed.11/29 09:00PM... -
Page 9: Technical Data
Ultrasonic sensor (Only for KR172E.1, Cutting Blade KR173E.1, KR174E.1) Charging Strips Charging Pile Rear Driving Wheel Contact Pins Rain Sensor Charging Base STOP Button Power Adapter Display Charging Base Fixing Nails Keypad RTK Antenna ON/OFF Key Hex Key START Key Wrench for RTK antenna 10. -
Page 10: Noise Data
* Voltage measured at no load. Initial battery voltage reaches maximum of 20 volts. Nominal voltage is 18 volts. Technical Data For Antenna Rated voltage 5V±2% Operating temperature -40°C-85°C Storage temperature -40°C-85°C Band Tx(Mhz) Rx(Mhz) RF Output Power (Max) DCS1800(B3) 1710-1785 1805-1880 30dBm... -
Page 11: Intended Use
Accessories KR172E.1 KR173E.1 KR174E.1 Screw for fixing disk Screw for fixing blades Charging base Charging base fixing nails Hex key Wrench for RTK antenna Magnetic strip Measurement gauge Blade RTK antenna Staples Hexagon screwdriver Battery pack (KA3024 / KA3006) Charger (KA0200) Charger (KA3710) Charger (KA3719) We recommend that you purchase genuine accessories listed in the above list from the same store that sold... - Page 12 Mission . Spare blades are also available at your nearest Kress retailer. A. Replace the blades Usually your Mission 's blades need to be reversed each month and replaced every week, you can adjust the frequency of replacing the blade according to the cutting quality of the lawn.
- Page 13 Keep it Clean WARNING: Before cleaning, turn your Mission OFF. Put on protective gloves before cleaning the blade turning disc and do not rinse or flush with water. WARNING! YOUR Mission can only be washed by using a hose! DO NOT use high pressure washer on your Mission .
- Page 14 Battery Life The heart of the Mission is its 20V Li-Ion Battery. For proper storage of the battery, make sure it is fully charged and kept in a cool dry place between (-20 C~+60 NOTE: The recommend Mission operation temperature is between 0-55 The life-span of the Mission ’s battery depends on various factors, such as: •...
- Page 15 3. Remove the screws on the sheet metal. Remove the sheet metal. 4. Press the latch and release the connectors as the picture shown. Lift out the battery box carefully. NOTE: Do not pull by the cables. Hold the connectors and release the latch. 5.
- Page 16 If you need to replace the battery, follow these steps: (Only for KR174E.1) 1. Gently turn your Mission upside down. 2. Remove the screws on the battery cover. Remove the battery cover. 3. Remove the screws on the sheet metal. Remove the sheet metal.
-
Page 17: Troubleshooting
Troubleshooting If your Mission does not work correctly, follow the trouble shooting guide below. If the fault persists, contact your dealer. Symptom Cause Solution Check the charging base is connected The LED light on the charging There is no power. properly to the charger and the charger base does not turn on. -
Page 18: Environmental Protection
Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For battery tools: Details regarding safe disposal of used batteries At the end of the life of the appliance, remove the battery pack safely before disposing of the appliance. Do not throw batteries away or throw them in the normal trash can. - Page 20 www.kress-robotik.com...
