Summary of Contents for Harman JBL IRX ONE

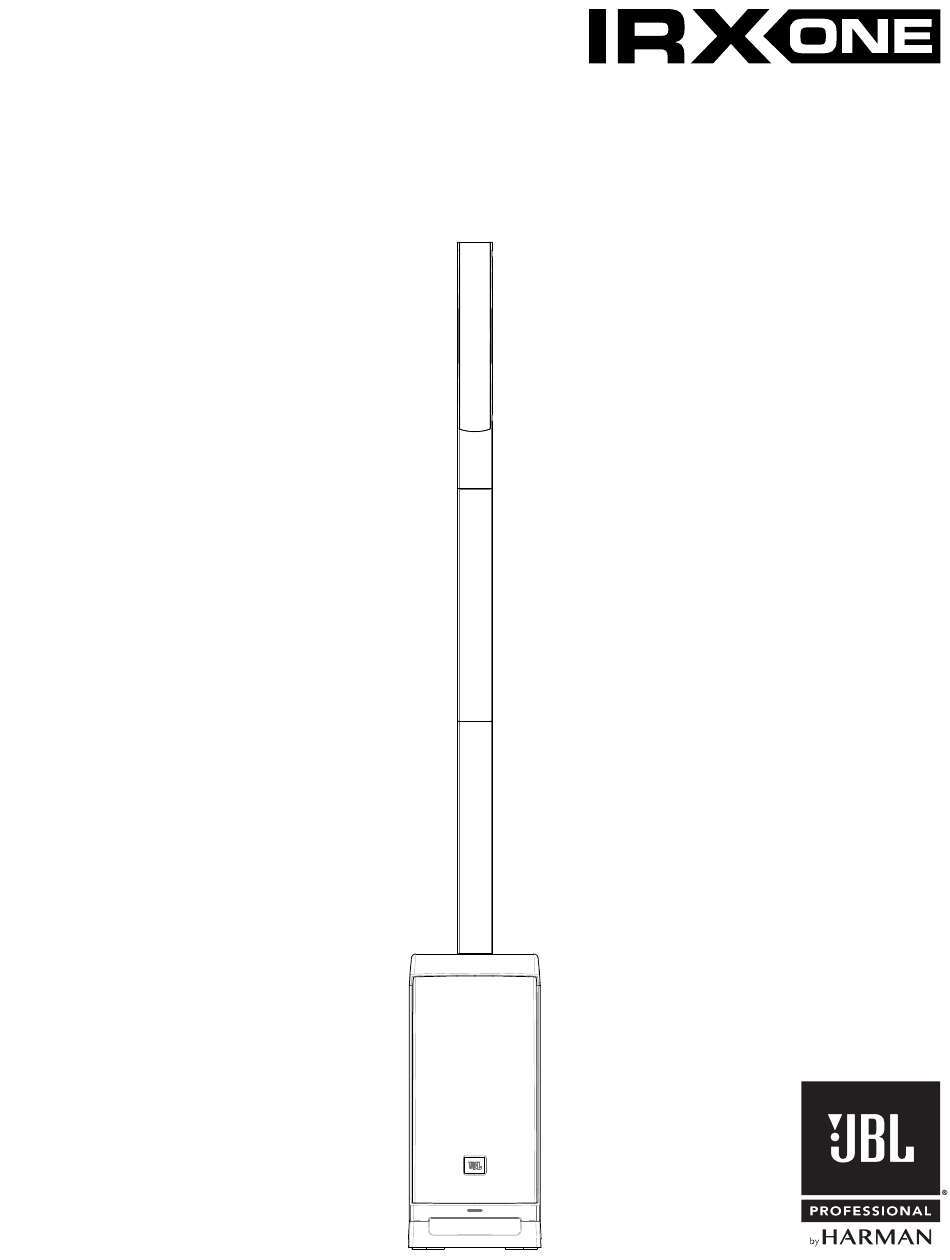

  • Page 1 COLUMN SPEAKER WITH BLUETOOTH ® User’s Guide...
  • Page 3: Table Of Contents

    CONTENTS Section 1: Important Safety Instructions ....................5 Section 2: Precautions ..........................6 Section 3: Introduction to the IRX ONE system ..................8 Getting Started ......................... 8 P.A. Basics ..........................11 Getting Acquainted with IRX ONE .................... 11 Audio Inputs ........................... 12 Mono Mic/Line Inputs ....................
  • Page 4 The IRX ONE speaker system covered by this manual is not intended for use in high moisture environments. Moisture can damage the speaker cone ® and surround and cause corrosion of electrical contacts and metal parts. Avoid exposing the speakers to direct moisture. Keep speakers out of extended or intense direct sunlight.
  • Page 5: Section 1: Important Safety Instructions

    SECTION 1: IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including DO NOT defeat the safety purpose of the polarized or grounding-type plug.
  • Page 6: Section 2: Precautions

    SECTION 2: PRECAUTIONS WARNING: This product is intended to be operated ONLY from the voltages listed on the back panel. Operation from other voltages other than those indicated may cause irreversible damage to the product and void the product’s warranty. The use of AC Plug Adapters is cautioned because it can allow the product to be plugged into voltages in which the product was not designed to operate.
  • Page 7 EU COMPLIANCE INFORMATION: Hereby, HARMAN Professional, Inc., declares that the equipment type IRX ONE® speaker system in compliance to the following: European Union Restriction of Hazardous Substances Recast (RoHS2) Directive 2011/65/EU; European Union WEEE (recast) Directive 2012/19/EU;...
  • Page 8: Section 3: Introduction To The Irx One System

    SECTION 3: INTRODUCTION TO THE IRX ONE SYSTEM Thank you for choosing the JBL IRX ONE system. The IRX ONE is a portable all-in-one linear-array system featuring multiple input channels with individual tone controls, music ducking, phantom power, fixed presets and Bluetooth® audio streaming. With a design that stores all the components into one lightweight unit for one-hand carry, the IRX ONE provides a versatile PA system that is perfect for situations where ease and portability are just as important as legendary JBL sound.
  • Page 9 4. Connect the female end of the power cable to the IRX ONE and plug the male end into a wall socket. AC Power Receptacle & Power Switch 5. Turn the MAIN VOLUME and CHANNEL VOLUME controls all the way to the left. IRX ONE_Artwork Mixer Panel Only for QSG...
  • Page 10 8. If connecting a Bluetooth device for audio streaming, follow these steps: a. Enable Bluetooth on your source device. b. Press the BLUETOOTH button. c. Find “JBL IRX ONE” on your device and select it. Only for QSG Bluetooth 9. Set the Channel Volume controls to 12 o’clock.
  • Page 11: P.a. Basics

    P.A. BASICS A mixing board is actually a very simple device that takes the audio input signals (from the input channels) and “mixes” them to the outputs. The mixing board controls will typically enable the user to blend the input channel signal levels, affect their tone. GETTING ACQUAINTED WITH IRX ONE The powered mixer section of the IRX ONE system houses the mixing board and power amplifier.
  • Page 12: Audio Inputs

    AUDIO INPUTS The IRX ONE has 4 inputs: 3 mono inputs, and a Bluetooth audio streaming input. All of the inputs will route to the speakers and the MIX OUT 1/4”. MONO MIC/LINE INPUTS Moving from left to right there are three identical input strips comprised of: (from top to bottom) a gain control (mic/line), treble control, bass control, and a level control.
  • Page 13: Phantom Power Disclamer

    PHANTOM POWER DISCLAMER When using condenser microphones, +48V phantom power is required to be present at the contacts of the microphone (XLR) connector for the microphone to operate correctly. When phantom power is enabled, it is applied to both the CH1 and CH2 XLR inputs. Ensure that phantom power is off when not required.
  • Page 14: Bluetooth Input

    The IRX ONE comes equipped with the ability to stream Bluetooth audio for music playback or backing tracks. To connect a Bluetooth device, first press the BLUETOOTH PAIR button on the back of the IRX ONE. Then select “JBL IRX ONE” from the source device to complete the pairing.
  • Page 15: Section 4: System Specifications

    SECTION 4: SYSTEM SPECIFICATIONS TECHNICAL SPECIFICATIONS System Type Column Speaker with Bluetooth Woofer Size 8inch bass-reflex woofer Woofer Magnet Ferrite Magnet Woofer Voice Coil 38.4mm Tweeter Size 6 x 2inch HF drivers Tweeter Magnet Neo Magnet Transducer Impedence Woofer: 2ohm; Tweeter unit: 4ohm(Tweeter Array: 2ohm) Max SPL 118dB (peak) Freq Range -10...
  • Page 16: Section 5: Cables & Connectors

    SECTION 5: CABLES & CONNECTORS The standard cable for interconnection of microphone and line- level XLR/F to XLR/M Microphone Cable signals in professional audio systems. Example: Microphone to mixer. For connecting balanced devices with 1/4” phone; may be used TRS (balanced) 1/4” phone to XLR/M cable interchangeably.
  • Page 17: Section 6: Contact Information

    SECTION 6: CONTACT INFORMATION Mailing Address: JBL Professional 8500 Balboa Blvd. Northridge, CA 91329 Shipping Address: JBL Professional 8500 Balboa Blvd., Dock 15 Northridge, CA 91329 (Do not return product to this address without first obtaining prior authorization from JBL) Customer Service: Monday through Friday 8:00am - 6:00pm Central Time...
  • Page 18: Section 7: Warranty Information

    SECTION 7: WARRANTY INFORMATION The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the date of the first consumer purchase. JBL amplifiers are warranted for three years from the date of original purchase. Enclosures and all other JBL products are warranted for two years from the date of original purchase.
  • Page 20 07/23 8500 Balboa Boulevard Northridge, CA 91329 USA www.jblpro.com...
