Harman JBL Performance Series Technical Manual

Technical Manual
IS8C
Performance
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance
• Max Amp Power
• Frequency Response
• Sensitivity
• Crossover Frequency
SYSTEM COMPONENTS:
• Grille With Cloth
• Low-Frequency Transducer
DC Resistance
• High-Frequency Transducer
DC Resistance
• Crossover Network
PACKAGING
4
3
1
4
Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, New York 11797
™ Series
8 Ohms
100 Watts*
32Hz – 20kHz (–10dB)
89dB (2.83V @ 1 meter)
2,400Hz
329-080-00445-0WAE
8" (203mm) Titanium-
laminate cone w/rubber
surround (20PR10CAO-FW01-P)
5.5 Ohms, ±10%
1" (25mm) Titanium-laminate
dome (20PR10CAO-FW01-P)
5.3 Ohms, ±10%
013-7600-05195-E
Legend on Page 2
2
9
AURAL SWEEP TEST SPECIFICATIONS:
• System Aural Sweep Test
• L.F. Aural Sweep Test
• H.F. Aural Sweep Test
PHYSICAL SPECIFICATIONS:
• Plate Size (Diameter)
• Mounting Cutout Size (Diameter) 9-1/2" (240mm)
• Mounting Depth
• Weight
WARRANTY:
• Refer to Warranty Statement packed with each product.
* The maximum recommended amplifier power rating will ensure
proper system headroom to allow for occasional peaks. We do not
recommend sustained operation at these maximum power levels.

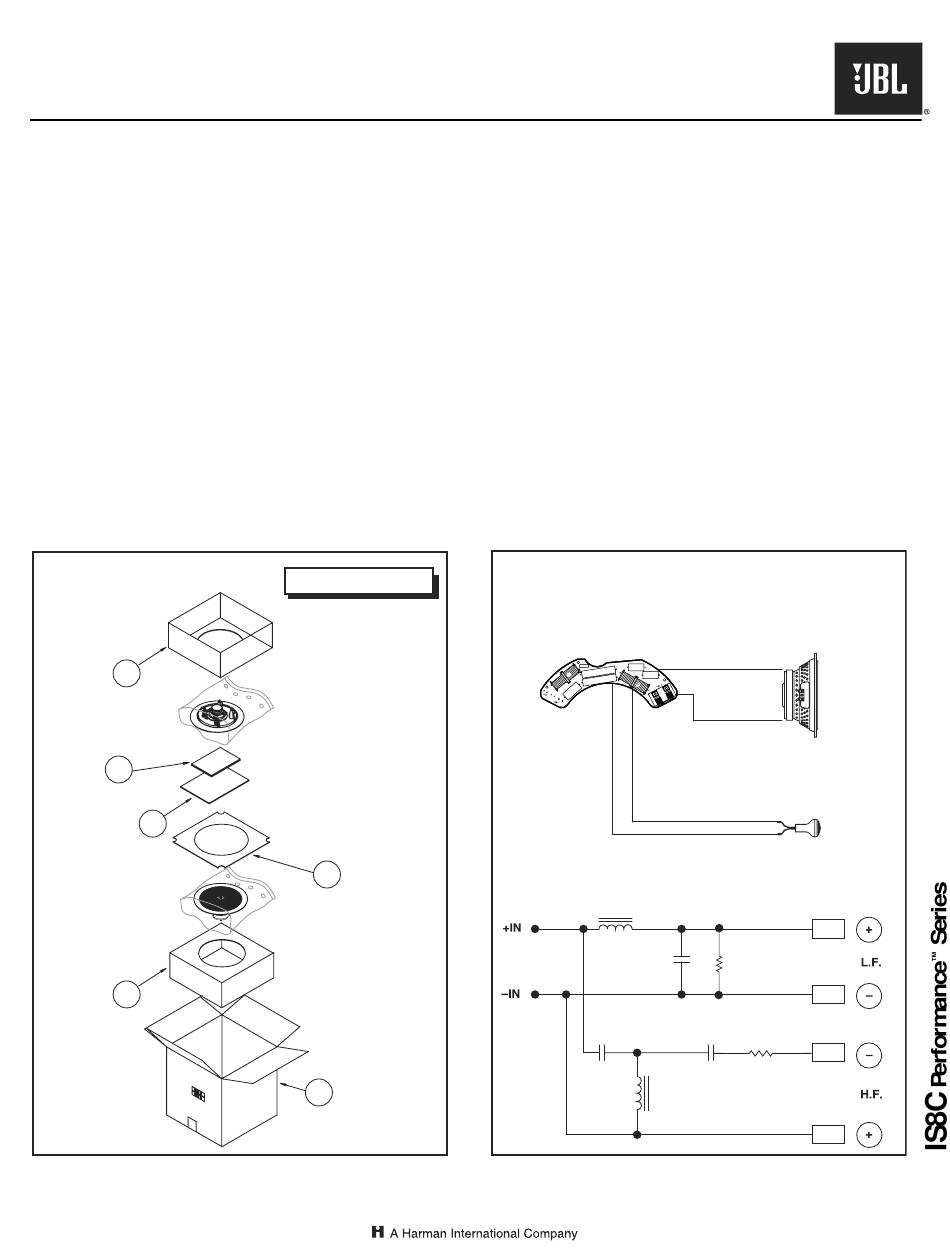

WIRING DIAGRAM
CROSSOVER
NETWORK
013-7600-05195-E
C3
R2
L2 L2 C2
R1
XR5215
C1
IS8C SCHEMATIC
L1
0.8mH
C1
20μf
100V
C2
4μf
L2
100V
0.4mH
6.0V Input 30Hz to 20kHz
5.0V Input 30Hz to 2kHz
2.83V Input 4kHz to 20kHz
10-7/8" (275mm)
4-1/4" (108mm)
11.2 lb/5.0kg (sold in pairs)
GRN
+
WHT –
COAXIAL DRIVER
20PR10CAO-FW01-P
BLK
–
+
RED
GRN .250
R1
10 ohms
10 watts
.205
WHT
BLK
.187
R2
C3
5.1 ohms
6μf
10 watts
100V
RED
.205
1/07
