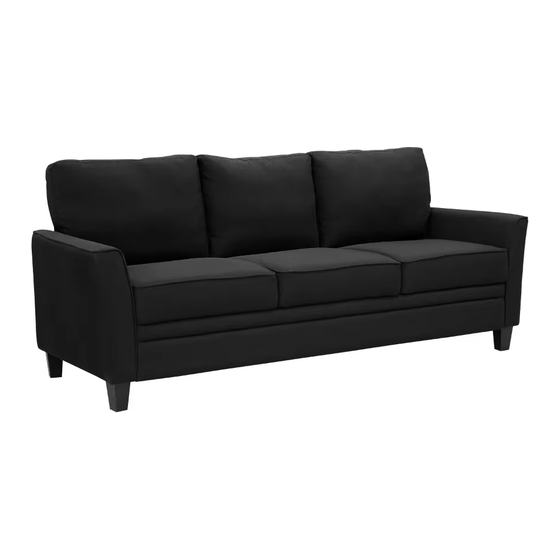

Mainstays Auden 3 SE
For immediate help with assembly or product information
call our toll-free number:
1-800-243-9758
Mon - Fri 9:00 am to 5:00 pm Eastern Time
LOT NUMBER:
DATE PURCHASED:
/
/
Version 2.0 ; Date : 02-26-2023
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recomended to ensure that all
658484949
components are in proper position, tight and free from damage. THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READS AND KEEP FOR FUTURE REFERENCE. Adult assembly is required.
Made in Vietnam
Contact Hillsdale Furniture for parts / 502-562-0000 / https://hillsdalefurniture.com/Main/Home/ContactUs
page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Auden 3 SE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mainstays Auden 3 SE

  • Page 1 Mainstays Auden 3 SE For immediate help with assembly or product information call our toll-free number: 1-800-243-9758 Mon - Fri 9:00 am to 5:00 pm Eastern Time LOT NUMBER: DATE PURCHASED: Version 2.0 ; Date : 02-26-2023 Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recomended to ensure that all 658484949 components are in proper position, tight and free from damage.
  • Page 2 DANGER • Risk of suffocation! • Keep any packaging materials away from children. Cleaning & Maintenance Metal Furniture Care Instructions Before Getting Started • Read the instructions carefully prior to • Keep the product away from direct heat and • For everyday cleaning, chrome, brass, assembling the product.
  • Page 3 PARTS CONTENTS Before getting started, ensure the package contains the following components: Seat frame Left and Right Arm rest Back rest Plastic leg Middle Back Cushion Left and Right Back Cushion Center leg Part List Back rest Left and Right Arm rest Seat frame Left and Right Back Cushion Middle Back Cushion...
  • Page 4: Hardware Placement

    HARDWARE 1. Bolt 5/16” x 90mm 2. Flat washer 5/16” x 22mm 4. Wrench 3. Hex nut 5/16” HARDWARE PLACEMENT Hardware Box Note: Hardware pack are place underneath of the sofa TOOLS REQUIRED FOR ASSEMBLY (NOT INCLUDED) 3.5m / 12" DO NOT USE POWER TOOLS TO ASSEMBLE THIS PRODUCT.
  • Page 5 Assembly Bolt 8mm x 90mm STEP 1 Install the Bolts on Part (left and right side of the armrest) as per the diagram. Turn clockwise until tight. STEP 2 Flat washer 8mm x 22mm Prepare section . Open the cover at the bottom starting from the top. Then pair Part from the right and left sides.
  • Page 6 Assembly STEP 3 Re-seal the cover fabric and attach the velcro perfectly. Close the bottom cover STEP 4 Assemble the plastic legs as well as the center leg as in the diagram. Make sure the plastic legs are all in parallel. Rotate clockwise to install.
  • Page 7 Assembly STEP 5 Installing the backrest . Insert from the top, align the bracket position and press down until it is tight. Contact Hillsdale Furniture for parts / 502-562-0000 / https://hillsdalefurniture.com/Main/Home/ContactUs page 7 Version 2.0 ; Date : 02-26-2023...
  • Page 8 Assembly STEP 6 Stretch and pull down rear cover of seat cushion evenly before securing velcro strip to the back rest. Repeat if necessary for better fit Contact Hillsdale Furniture for parts / 502-562-0000 / https://hillsdalefurniture.com/Main/Home/ContactUs Version 2.0 ; Date : 02-26-2023 page 8...
  • Page 9 Assembly STEP 7 Place the back cushions left , middle and right Right Back Cushion Left Back Cushion STEP 8 Contact Hillsdale Furniture for parts / 502-562-0000 / https://hillsdalefurniture.com/Main/Home/ContactUs page 9 Version 2.0 ; Date : 02-26-2023...
