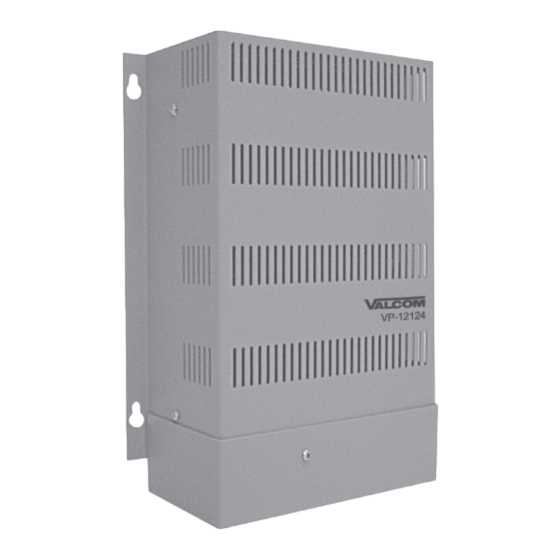

24VDC/12 AMP SWITCHING POWER SUPPLY
FEATURES:
24 VOLT DC "A" BATTERY POWER SUPPLY
SIX OUTPUTS, 2 AMPS EACH
REGULATED AND FILTERED
FLOATING OUTPUT
INPUT FUSE PROTECTED
OUTPUT PROTECTED
WALL MOUNT PLATE INCLUDED
PROVIDES 240 VALCOM POWER UNITS
DESCRIPTION:
Wall mountable switching 24 Vdc, 12 Amp Filtered "A" talk battery power supply with six 2 Amp outputs, each
protected with auto-reset poly switches.
INPUT
Voltage/Frequency
Power
Protection
Connection
OUTPUT
Voltage
Current
Protection
Connections
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com
VP-12124
SPECIFICATIONS:
120 Vac, 47-63 Hz
360 Watts
6.3A/120VAC Line Fuse
IEC 320 Input + AC Cord
24 Vdc Regulated + 2%
Filtered, Floating
10 mV Ripple Maximum
12 Amps, Six 2A/Outputs
Six 2 A Auto-reset
polyswitches
Wire Cage Connectors
SPECIFICATIONS
REGULATORY
UL, cUL Listed
Class 2 Power Supply
FCC Class B
ENVIRONMENT
Temperature
32 - 104
Humidity
10-95% Non-condensing
MOUNTING
Wall Mount
Mounting plate and hardware included
DIMENSIONS AND WEIGHT
12.10" (30.73 cm) H x 8.70" (22.10 cm) W x
3.90" (9.91 cm) D.
Weight: 7.7 lbs (3.5 kg)
Phone: 540-563-2000
www.valcom.com
TECHNICAL
°
°
F (0 - 40
C)
Fax: 540-362-9800
