SPECIFICATIONS
Input:
100-250VAC, 50/60Hz
IEC-320-C14 input receptacle
Input Current (@115V, 60Hz,
Rated Output Load): 0.93A
AC Apparent Power 107.0VA
Meets CEC 2008
Output:
24VDC, 4A Regulated
5.5mm x 2.5mm connector center
positive (mating wire assembly for
Class 2 wiring included)
Dimensions: 1.4" H x 2.65" W x 6.65" L
(3.6cm H x 6.7cm W x 16.9cm L)
Weight:
1.15 lbs. (0.52 kg)
Mounting:
Wall or shelf, mount near an
electrical outlet (wall mount
hardware included)
Features:
Output voltage LED indicator
Power Cord: 6' NEMA 5-15P (US)
6' BS1363
6' CEE7/7
FOR INDOOR USE ONLY
OUTPUT CONNECTIONS
Connect "+" wire to connection labeled GND
on Valcom equipment
Connect "-" wire to connection labeled -24V
on Valcom equipment

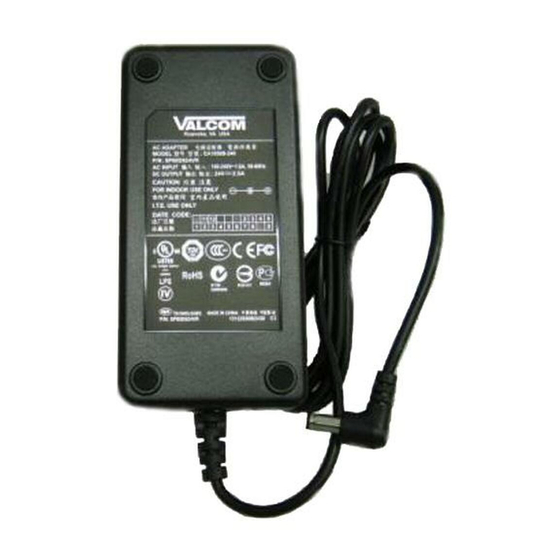

VP-4124D
24 VOLT DC POWER SUPPLY
(UK)
(EC)
1
REGULATORY INFORMATION
UL, cUL and CE Approvals
Meets VDE and FCC Class B Regulations
TECHNICAL ASSISTANCE
When trouble is reported, verify that AC power is
being supplied to the unit. To test the power
supply, remove all output connections and
measure the output voltage with a meter. If no
voltage is measured, replace the unit.
Assistance in troubleshooting is available from
the factory. When calling, you should have a
VOM and a test set available and be calling from
the job site. Call (540) 563-2000 and ask for
Technical Support or visit our website at
http://www.valcom.com.
Valcom equipment is not field repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating your
company name, address, phone number,
contact person, and the nature of the problem.
Send the unit to:
Valcom, Inc.
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
Issue 3
947347
Advertisement
Table of Contents
Related Manuals for Valcom VP-4124D
Summary of Contents for Valcom VP-4124D
-
Page 1: Specifications
Technical Support or visit our website at Connect “-” wire to connection labeled -24V http://www.valcom.com. on Valcom equipment Valcom equipment is not field repairable. Valcom, Inc. maintains service facilities in Roanoke, VA. Should repairs be necessary, attach a tag to the unit clearly stating your company name, address, phone number, contact person, and the nature of the problem. - Page 2 VALCOM LIMITED WARRANTY Valcom, Inc. warrants its products only to the original purchaser, for its own use, to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from the date of shipment. This Limited Warranty obligation shall be limited to the replacement, repair or refund of any such defective device within the warranty period, provided that: 1.
