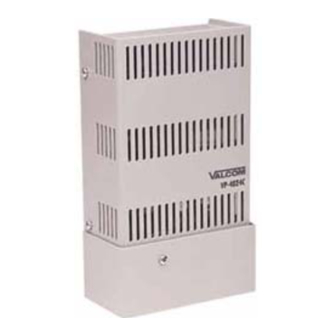

24VDC/4 AMP LINEAR POWER SUPPLY
FEATURES:
24 VOLT DC "A" BATTERY POWER SUPPLY
REGULATED AND FILTERED
FLOATING OUTPUT
TWO FUSED OUTPUTS, 2 AMPS EACH
INPUT FUSE PROTECTION
OUTPUT OVERVOLTAGE PROTECTION
CURRENT LIMITING
WALL MOUNTING PLATE INCLUDED
PROVIDES 80 VALCOM POWER UNITS
DESCRIPTION:
Wall mountable, linear, 24 Vdc, filtered "A" Talk Battery power supply with two fused 2 Amp
outputs.
INPUT
Voltage/Frequency
Power
BTU/Hr
Protection
Connection
OUTPUT
Voltage
Current
Protection
Connections
5614 Hollins Road
Roanoke, Virginia 24019
E-Mail: support@valcom.com
VP-4024C
SPECIFICATIONS:
105 - 120 Vac, 60 Hz
150 Watts
515 BTU/Hr
2A/125 Vac Input Fuse
AC Cord
24 Vdc Regulated +10%
Filtered, Floating
10 mV Ripple Maximum
4 Amp (2A per output)
Over-Voltage Protection
Current Limiting
Wire Cage Connectors
SPECIFICATIONS
REGULATORY
UL, cUL Listed
ENVIRONMENT
Temperature
Humidity
MOUNTING
Wall Mounted
Mounting Plate Hardware Included
DIMENSIONS AND WEIGHT
10.70" (27.18 cm) H x 6.35" (16.13 cm) W x
3.75" (9.53 cm) D
Weight: 13.00 lbs (5.85kg)
Phone: 540-563-2000
www.valcom.com
TECHNICAL
32 - 122 °F (0 - 50 °C)
10 - 90% Non-condensing
Fax: 540-362-9800
