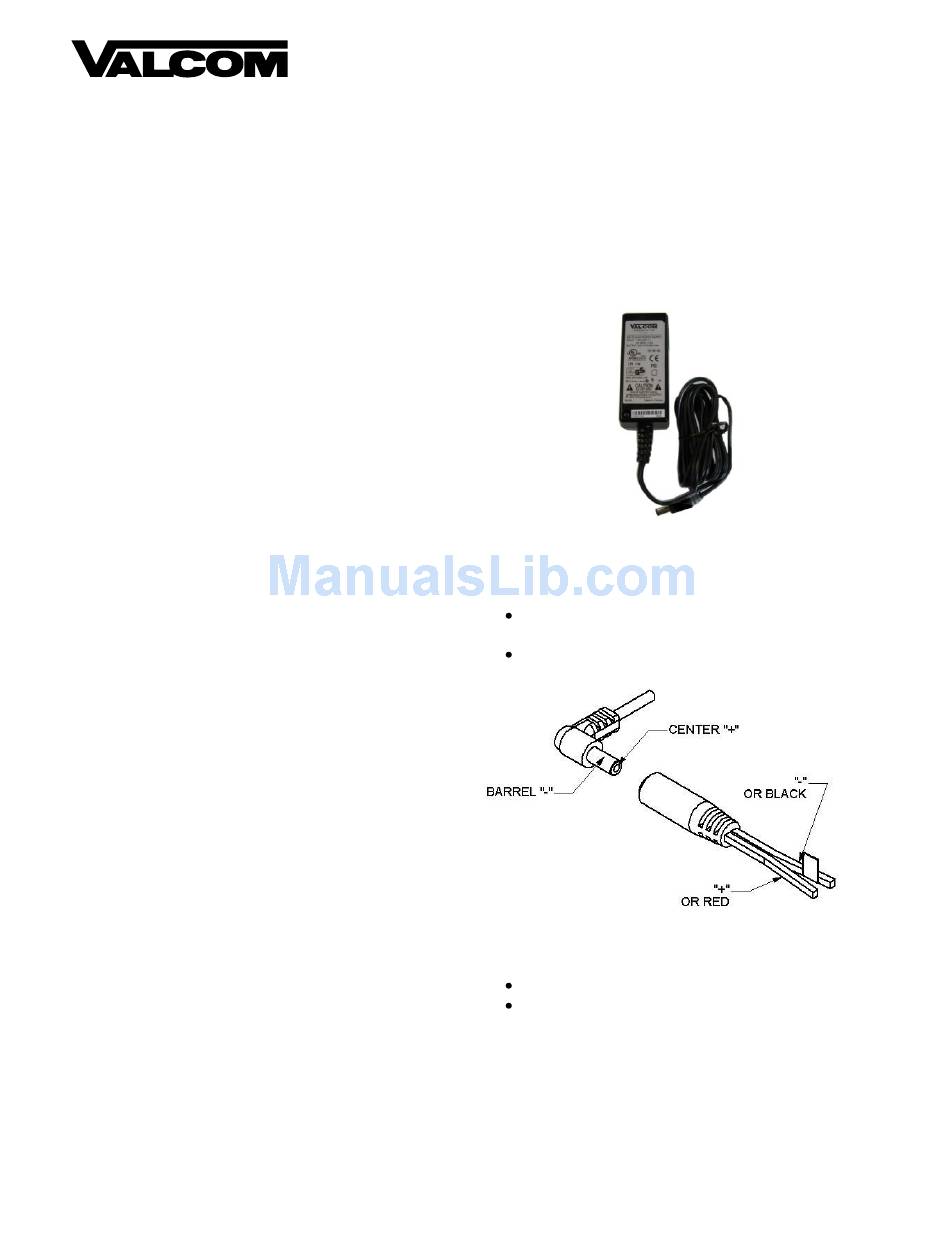

Valcom VP-624D Quick Manual

SPECIFICATIONS

Input: 100-240VAC, 50/60Hz
IEC-320-C14 input receptacle
Input Current (@ 115V, 60Hz, Rated
Output Load):
VP-624D: 0.24A
AC Apparent Power 27.6VA
VP-1124D: 0.41A
AC Apparent Power 47.2VA
VP-2124D: 0.73A
AC Apparent Power 84.0VA
*All meet CEC 2008
Output: VP-624D: 24VDC, 600mA Regulated
VP-1124D: 24VDC, 1A Regulated
VP-2124D: 24VDC, 2A Regulated
5.5mm x 2.5mm connector center
positive (mating wire assembly included)
Dimensions:
VP-624D: 1.42" H x 1.50" W x 3.58" L
(3.6cm H x 3.8cm W x 9.1cm L)
VP-1124D: 1.25" H X 1.80" W X 3.88" L
(3.2cm H x 4.6cm W x 9.9cm L)
VP-2124D: 1.45" H x 2.35" W x 4.75" L
(3.7cm H x 2.35cm W x 12.1cm L)
Weight: VP-624D: 0.36 lbs. (0.165 kg)
VP-1124D: 0.40 lbs. (0.2 kg)
VP-2124D: 0.60 lbs. (0.3 kg)
Mounting: Wall or shelf, mount near an electrical
outlet (wall mount hardware included)
Features: Output voltage LED indicator
Power Cord: 6' NEMA 5-15P (US)
6' BS1363
6' CEE7/7
FOR INDOOR USE ONLY
VP-624D
VP-1124D
VP-2124D

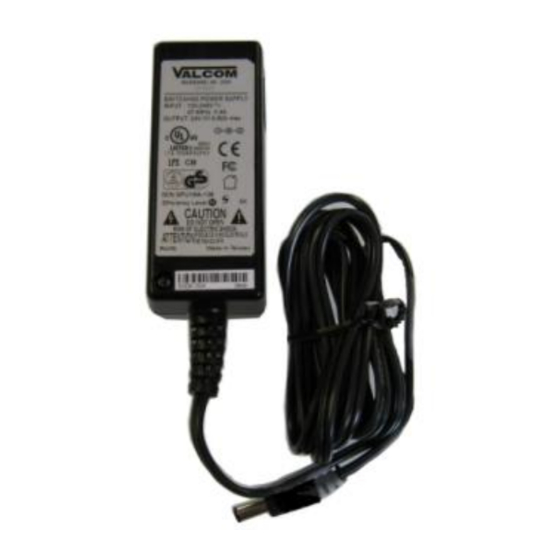

24 VOLT DC POWER SUPPLY
(UK)
(EC)

OUTPUT CONNECTIONS

Connect "+" wire to connection labeled GND
on Valcom equipment
Connect "-" wire to connection labeled -24V
on Valcom equipment

REGULATORY INFORMATION

UL, cUL, and CE Approvals
Meets VDE and FCC Class B Regulations
1
Issue 5
947139A
