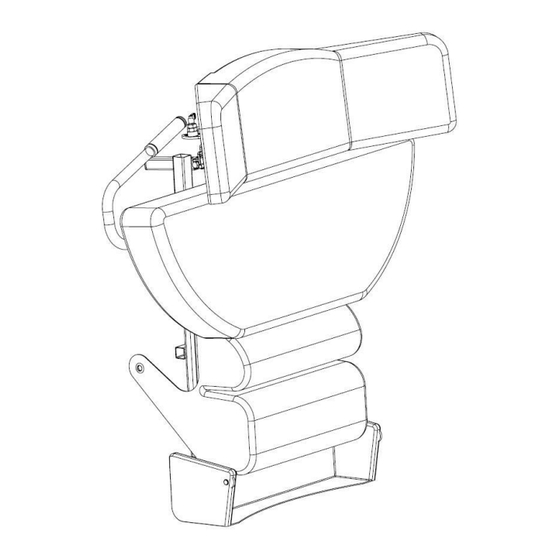

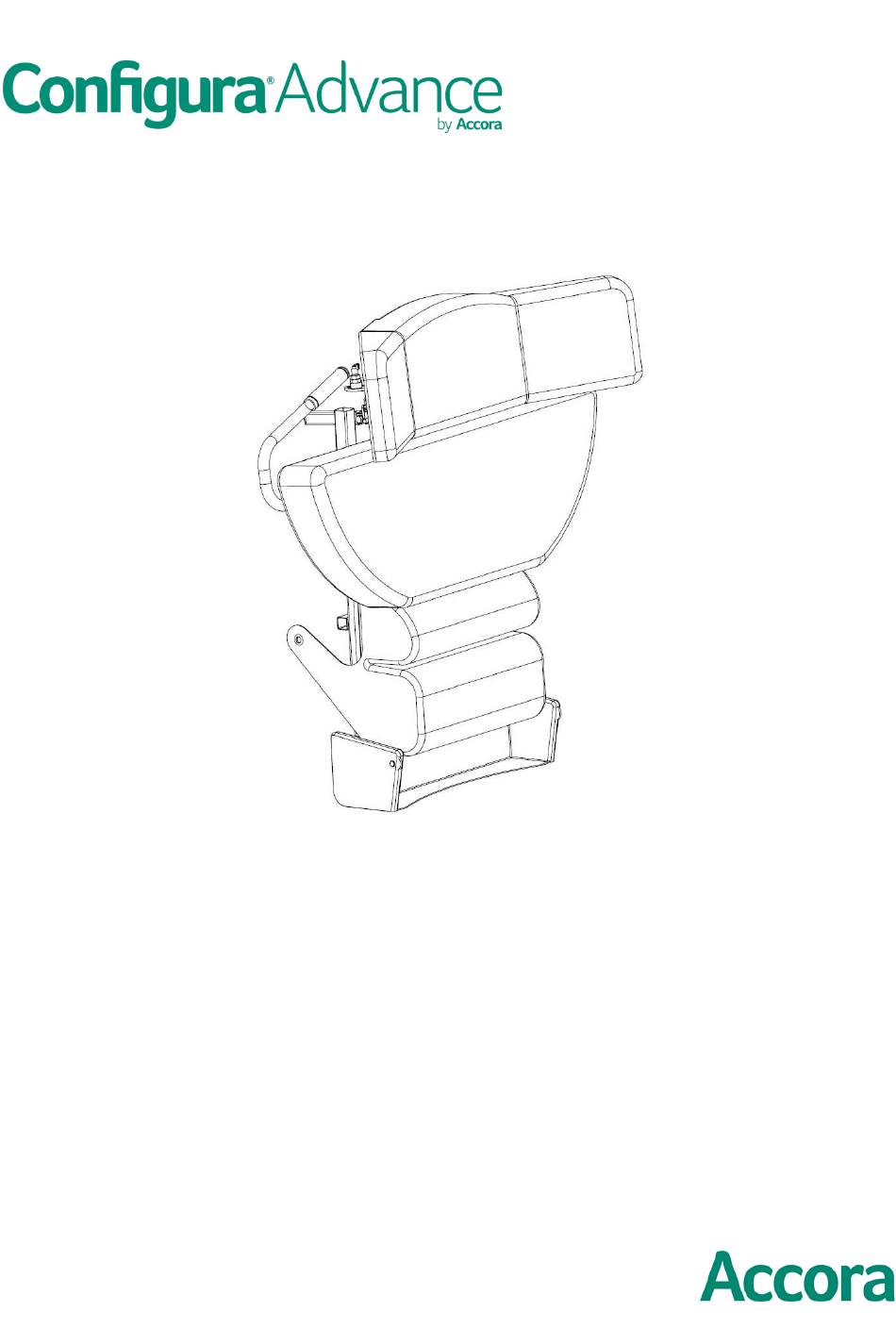

Configura Advance Postural
Backrest and External Laterals
Instruction Manual
IFU-SC1-003EN Rev 02
March 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Configura Advance and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Accora Configura Advance

  • Page 1 Configura Advance Postural Backrest and External Laterals Instruction Manual IFU-SC1-003EN Rev 02 March 2021...
  • Page 2: Table Of Contents

    Any actions that are inconsistent with the manual are performed at your own risk and Accora shall not be liable for any injury or damage. Please ensure that the manual is available to users and operators throughout this products service life.
  • Page 3: Technical Specification

    Technical specification Two types of locking mechanism are used: • ClickLock plunger (Figs 2 & 3). The table below lists the part numbers for the • Lock plunger (Figs 4 & 5). Advance Postural Backrest and External Laterals. To unlock the ClickLock plunger, turn the plunger through 180 degrees;...
  • Page 4: Assembly Of Postural Backrest

    Assembly of Postural Backrest Remove the R-clip (Fig 8, Item 1) and clevis pin (Fig 8, Item 2) from the top fixing of the backrest Remove the chair sidepieces. Pull out the locking actuator (Fig 7, Item 3 & 4; Fig 8). plunger (Fig 6, Item 1) located under the seat of Remove control box if fitted.
  • Page 5 Figure 10 – (Seat cushion shown removed for clarity.) Figure 12 Figure 11 The backrest hinges each side of the chair are secured with shoulder bolt (Fig 11, Item 1), three M10 plain washers (Fig 11, Item 2), M8 plain washer Figure 13 (Fig 11, Item 3) and self-lock M8 nut (Fig 11, Item 4).
  • Page 6 Figure 15 Refit the control box if required. Place the control box against the plastic fixing bracket on the Postural Backrest, locate the control box in the Figure 17 sliding slot, then move control box upwards. Ensure the fixing tab (Fig 9, Item 1) has located the Refit the sidepieces.
  • Page 7: Setup Of Postural Backrest

    Tighten the hand screw to secure the sidepiece (Fig 6, Item 2). Repeat steps 14 to 18 to fit the other sidepiece. Carry out a functionality check as described in Section 7. Setup of Postural Backrest Height – to adjust the backrest height, pull out and hold the two lock plungers shown in red in Figure 20.
  • Page 8: Assembly Of External Laterals

    Setup of External Laterals Inclination of top pillows – to adjust the inclination of the top backrest pillows, release the two ClickLock plungers shown in red in Figure Width of the external laterals – turn the thumb 23 and adjust the angle as desired. Release the screws shown in red (Fig 25, Item 1) counter ClickLock plungers to lock the angle (Fig 1, Item clockwise to release the external laterals.
  • Page 9: Functionality Check

    The chair is not designed for maintenance in automatic chair washers or for cleaning with pressurised water, spraying, showering or steam cleaning. Figure 27 Accora cannot be liable for any damage or risk of Functionality Check damage if inappropriate cleaning or disinfectant agents are used. WARNING...
  • Page 10: Contact Details

    Contact details UK and Rest of World Accora Ltd. Charter House Accora Inc. Barrington Road 9210 Corporate Blvd. Suite 120 Address Orwell Rockville Cambridge MD 20850 SG8 5QP Telephone +44 (0)1223 206100 +1 301-560-2400 Email info@accora.care information@accora.care Website www.accora.care www.accora.care...
