Summary of Contents for Accora Configura Care

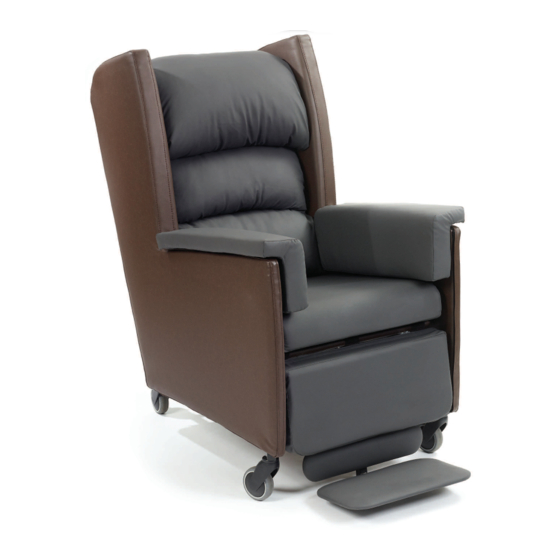

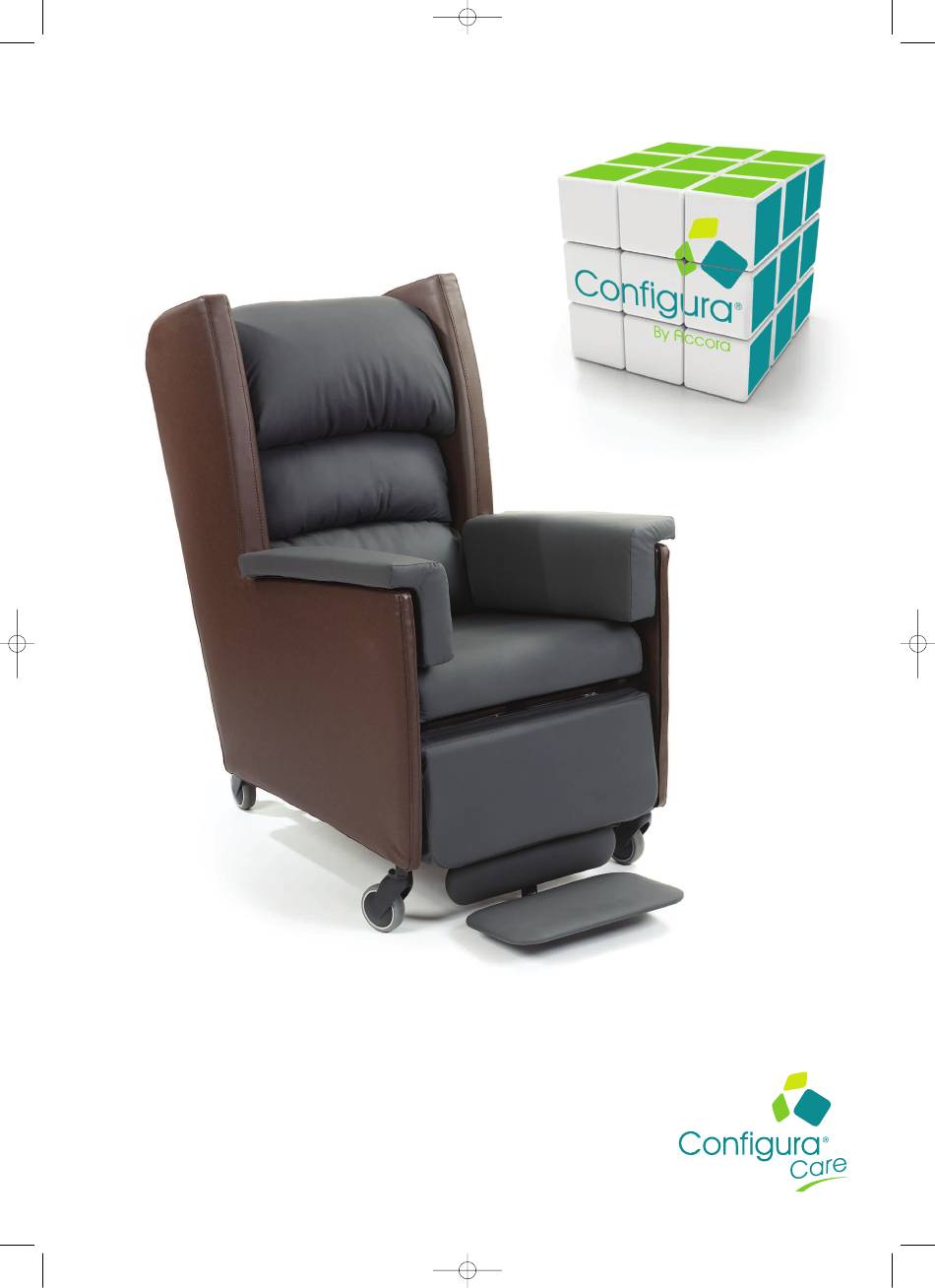

- Page 1 CONC_B_005 Configura Care manual:Layout 1 30/7/12 17:40 Page 1 Configura Care Instruction Manual ® For manual and electric versions V E R S I O N T W O | J U N E 2 0 1 2...
-
Page 2: Table Of Contents
Changing the pressure cushions Cleaning recommendations Changing the backrest cushions Weight and dimensions Changing the headrest Guarantee Removing filling from the Multi-adjustable Pillow Backrest Contact details How to lock the castors © Accora Configura® assessment helpline: 01223 206110 | configura@accora.uk.com | www.configura.uk.com... -
Page 3: Introduction
■ Do not move the chair if the charging lead is connected to the chair and the mains power supply. Weight capacity: 160kg max. © Accora Configura® assessment helpline: 01223 206110 | configura@accora.uk.com | www.configura.uk.com... -
Page 4: Size
High specification Visco cushion with Castellated Visco surface and silicon gel to offer excellent pressure reduction. 20 stone weight limit. Cushionair portable Powered alternating air cushion which provides excellent comfort, stability and pressure relief. Self Supply Chair supplied without a cushion. © Accora Configura® assessment helpline: 01223 206110 | configura@accora.uk.com | www.configura.uk.com... -
Page 5: Posture
Adjustable Lateral Support System Flat foam backrest with adjustable Velcro lateral support system. Excellent for providing more aggressive lateral support and mild positioning. Profiled Headrest Suitable for users with reduced head control. © Accora Configura® assessment helpline: 01223 206110 | configura@accora.uk.com | www.configura.uk.com... -
Page 6: Extras
We also strongly recommend regular product training from Accora to ensure the prescriber is up-to-date with the features of the chair. Healthcare professionals should use Configura ®... -
Page 7: Adjusting The Seat Depth
When removing cushions, fold the Velcro flaps on the cushions back so that filling and dust does not get caught in the Velcro. Use caution when using the lateral support backrest with the dual motor tilt-in-space mechanism as it introduces shear forces. © Accora Configura® assessment helpline: 01223 206110 | configura@accora.uk.com | www.configura.uk.com... -
Page 8: Changing The Headrest
When the chair is in the desired position, locate the castors. The brake lever is on top of the castors. Press down on the end of the lever with your foot. To unlock, ease the lock back up. © Accora Configura® assessment helpline: 01223 206110 | configura@accora.uk.com | www.configura.uk.com... -
Page 9: Elevating The Legrest (Manual Only)
Insert the male end of the legrest extension into the female bracket on the underside of the legrest. Use the spring-loaded adjustment pin to adjust the footplate to the desired length. © Accora Configura® assessment helpline: 01223 206110 | configura@accora.uk.com | www.configura.uk.com... -
Page 10: How To Charge The Battery (Electric Only)
Remove the backrest and seat base cushions to give easy access to side piece. Undo all the bolts securing the side piece to the metal sub-frame. Take new side piece and replace bolts into sub- frame. © Accora Configura® assessment helpline: 01223 206110 | configura@accora.uk.com | www.configura.uk.com... -
Page 11: Replacing The Cover On The Side Piece
If necessary, re-tension the Bowden cable using a screwdriver and pliers to tighten or loosen it from the locating pin at the bottom of the gas strut. © Accora Configura® assessment helpline: 01223 206110 | configura@accora.uk.com | www.configura.uk.com... -
Page 12: Replacing The Legrest Elevation Activation Lever (Manual Only)
Pass new handset cable through gap between seat base and backrest and plug into control box. Route cable up backrest behind cushions and hook handset on to handle bar. Cable may be routed either side of backrest as required. Refit cushions. © Accora Configura® assessment helpline: 01223 206110 | configura@accora.uk.com | www.configura.uk.com... -
Page 13: Replacing The Control Box (Electric Only)
■ Accora cannot be held responsible for any damage caused by cleaning. ■ The chair should not be exposed to direct sunlight for long periods of time as this will cause your upholstery to fade. - Page 14 Flammability: BS582 PART 2 SOURCE 5 (CRIB) EN1021.1/2 NFPA 260 Main frame black fabric Composition: 94% PVC, 6% Polycotton Abrasion: 40,000+ Martindale abrasion rubs Width: 140cm Flammability: crib 5 © Accora Configura® assessment helpline: 01223 206110 | configura@accora.uk.com | www.configura.uk.com...
-
Page 15: Cleaning Recommendations
To report a problem, please contact us on the details below. Contact details Accora Ltd., Charter House, Barrington Road, Orwell, Cambridge SG8 5QP T: 01223 206110, F: 01223 206120, E: configura@accora.uk.com © Accora Configura® assessment helpline: 01223 206110 | configura@accora.uk.com | www.configura.uk.com... - Page 16 CONC_B_005 Configura Care manual:Layout 1 30/7/12 17:40 Page 16 Configure Deliver Adjust Recycle Training Charter House Barrington Road Orwell Cambridge SG8 5QP T: 01223 206100 F: 01223 206120 info@accora.uk.com www.accora.uk.com Registered to ISO 9001:2008...
