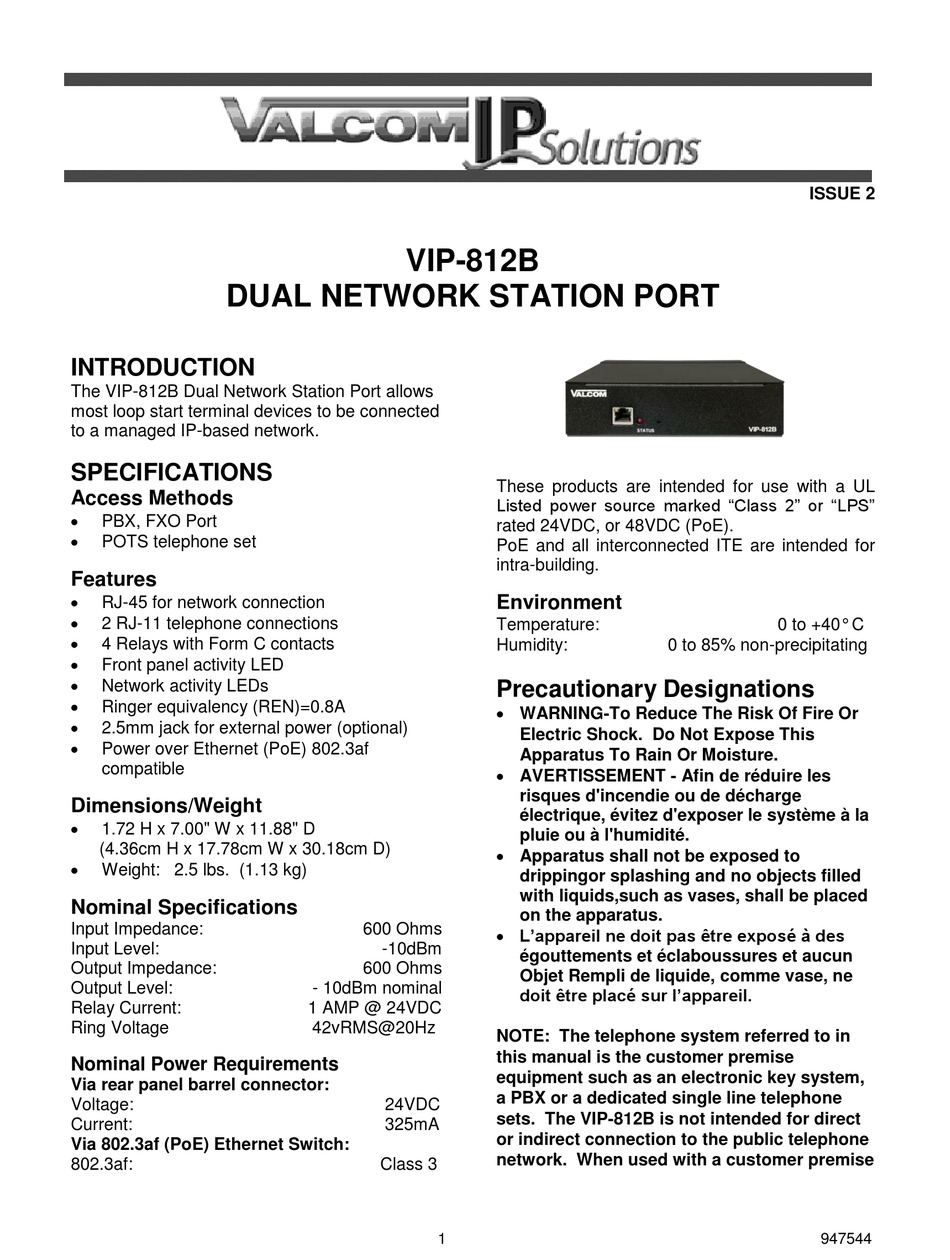

Valcom VIP-812B Quick Start Manual

DUAL NETWORK STATION PORT
INTRODUCTION
The VIP-812B Dual Network Station Port allows
most loop start terminal devices to be connected
to a managed IP-based network.

SPECIFICATIONS

Access Methods

PBX, FXO Port

POTS telephone set
Features

RJ-45 for network connection

2 RJ-11 telephone connections

4 Relays with Form C contacts

Front panel activity LED

Network activity LEDs

Ringer equivalency (REN)=0.8A

2.5mm jack for external power (optional)

Power over Ethernet (PoE) 802.3af
compatible
Dimensions/Weight

1.72 H x 7.00" W x 11.88" D
(4.36cm H x 17.78cm W x 30.18cm D)

Weight: 2.5 lbs. (1.13 kg)
Nominal Specifications
Input Impedance:
Input Level:
Output Impedance:
Output Level:
Relay Current:
Ring Voltage
Nominal Power Requirements
Via rear panel barrel connector:
Voltage:
Current:
Via 802.3af (PoE) Ethernet Switch:
802.3af:
VIP-812B
600 Ohms
-10dBm
600 Ohms
- 10dBm nominal
1 AMP @ 24VDC
42vRMS@20Hz
24VDC
325mA
Class 3
1
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
Precautionary Designations
 WARNING-To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
 AVERTISSEMENT - Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système à la
pluie ou à l'humidité.
 Apparatus shall not be exposed to
drippingor splashing and no objects filled
with liquids,such as vases, shall be placed
on the apparatus.
 L'appareil ne doit pas être exposé à des
égouttements et éclaboussures et aucun
Objet Rempli de liquide, comme vase, ne
doit être placé sur l'appareil.
NOTE: The telephone system referred to in
this manual is the customer premise
equipment such as an electronic key system,
a PBX or a dedicated single line telephone
sets. The VIP-812B is not intended for direct
or indirect connection to the public telephone
network. When used with a customer premise
ISSUE 2
0 to +40° C
947544
