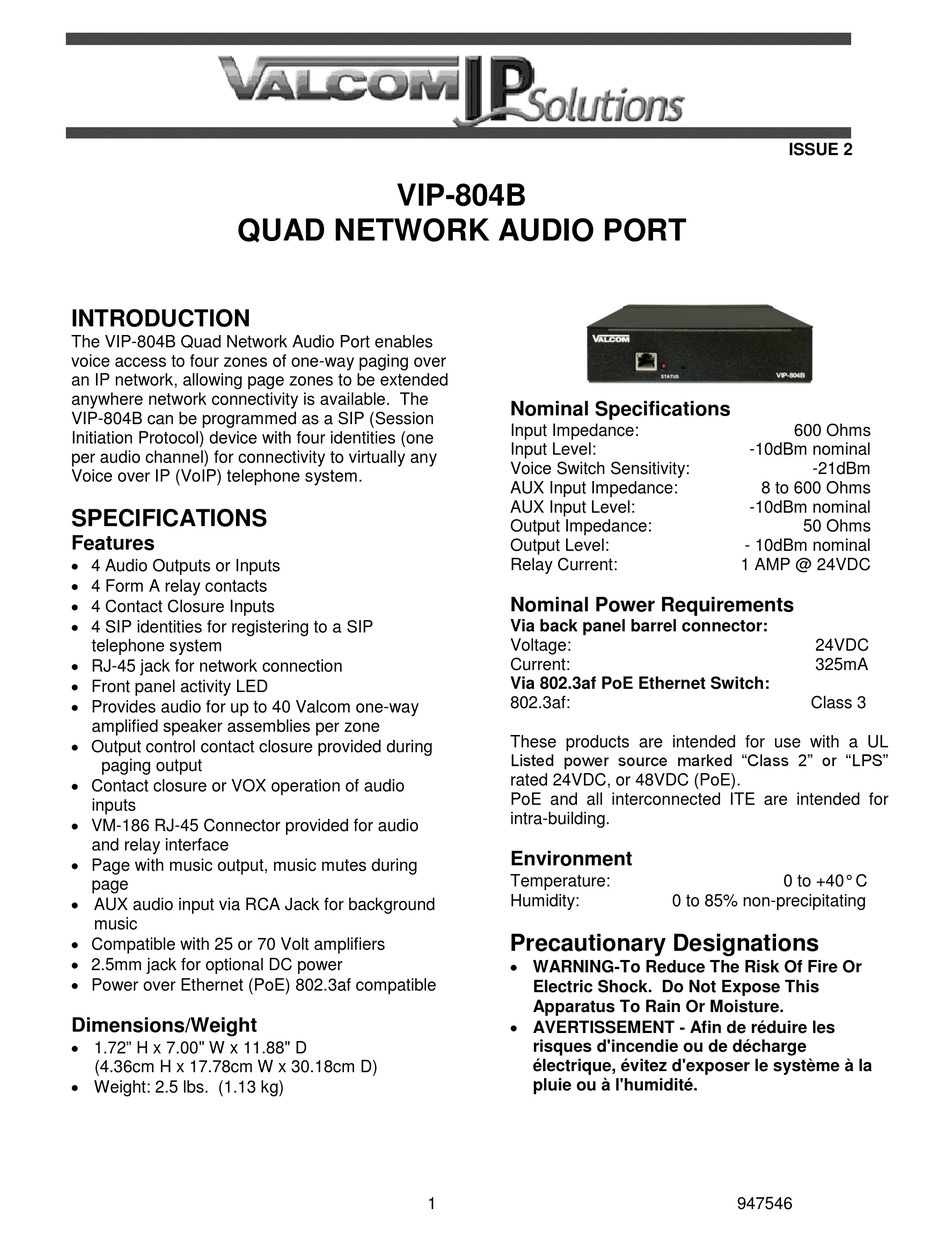

Valcom VIP-804B Quick Start Manual

QUAD NETWORK AUDIO PORT
INTRODUCTION
The VIP-804B Quad Network Audio Port enables
voice access to four zones of one-way paging over
an IP network, allowing page zones to be extended
anywhere network connectivity is available. The
VIP-804B can be programmed as a SIP (Session
Initiation Protocol) device with four identities (one
per audio channel) for connectivity to virtually any
Voice over IP (VoIP) telephone system.

SPECIFICATIONS

Features
 4 Audio Outputs or Inputs
 4 Form A relay contacts
 4 Contact Closure Inputs
 4 SIP identities for registering to a SIP
telephone system
 RJ-45 jack for network connection
 Front panel activity LED
 Provides audio for up to 40 Valcom one-way
amplified speaker assemblies per zone
 Output control contact closure provided during
paging output
 Contact closure or VOX operation of audio
inputs
 VM-186 RJ-45 Connector provided for audio
and relay interface
 Page with music output, music mutes during
page
 AUX audio input via RCA Jack for background
music
 Compatible with 25 or 70 Volt amplifiers
 2.5mm jack for optional DC power
 Power over Ethernet (PoE) 802.3af compatible
Dimensions/Weight
 1.72" H x 7.00" W x 11.88" D
(4.36cm H x 17.78cm W x 30.18cm D)
 Weight: 2.5 lbs. (1.13 kg)
VIP-804B
Nominal Specifications
Input Impedance:
Input Level:
Voice Switch Sensitivity:
AUX Input Impedance:
AUX Input Level:
Output Impedance:
Output Level:
Relay Current:
Nominal Power Requirements
Via back panel barrel connector:
Voltage:
Current:
Via 802.3af PoE Ethernet Switch:
802.3af:
These products are intended for use with a UL
Listed power source marked "Class 2" or "LPS"
rated 24VDC, or 48VDC (PoE).
PoE and all interconnected ITE are intended for
intra-building.
Environment
Temperature:
Humidity:
Precautionary Designations
 WARNING-To Reduce The Risk Of Fire Or
Electric Shock. Do Not Expose This
Apparatus To Rain Or Moisture.
 AVERTISSEMENT - Afin de réduire les
risques d'incendie ou de décharge
électrique, évitez d'exposer le système à la
pluie ou à l'humidité.
1
ISSUE 2
600 Ohms
-10dBm nominal
-21dBm
8 to 600 Ohms
-10dBm nominal
50 Ohms
- 10dBm nominal
1 AMP @ 24VDC
24VDC
325mA
Class 3
0 to +40° C
0 to 85% non-precipitating
947546
