BD16950EFV-EVK-001
The ROHM BD16950EFV-C is an AEC-Q100 automotive qualified 2-channel Half-Bridge Gate Driver IC, suitable for DC motor drive
in Automotive applications such as Power Window Lifter, Sunroof Module, Wiper, Seat belt tensioner, Seat positioning, 2H motors etc.
This EVK enables the performance evaluation of this IC in research and development laboratories.
Description

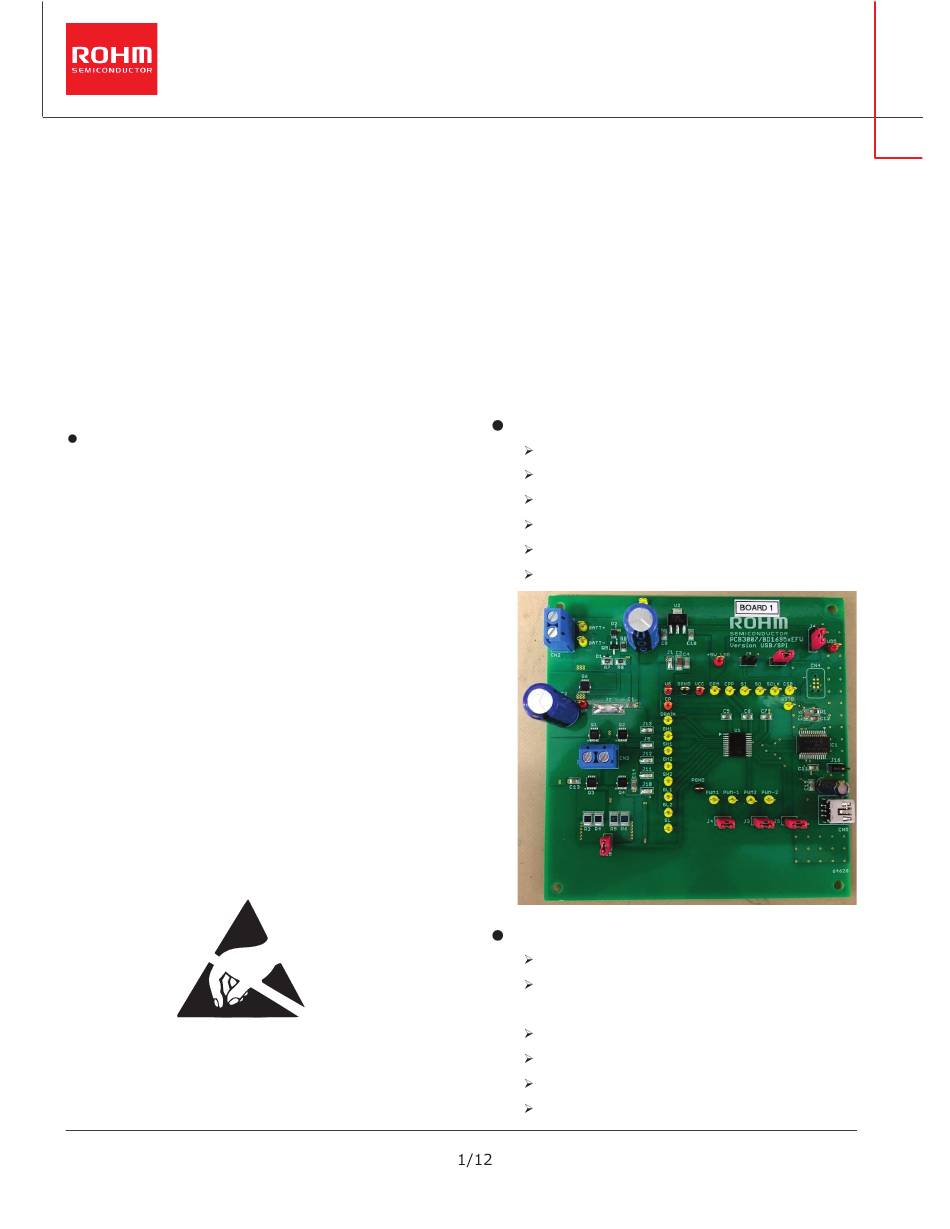

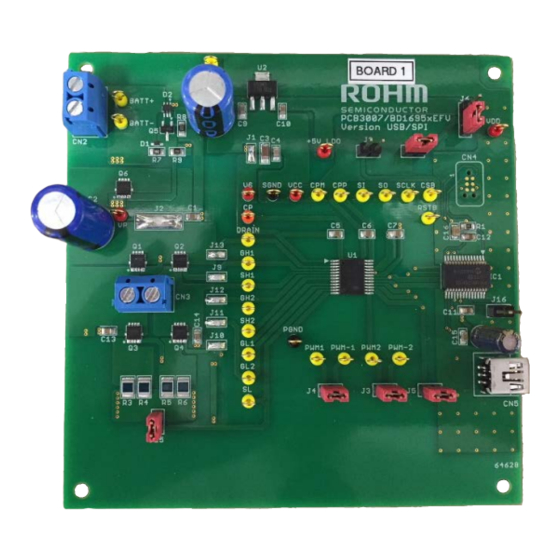

This EVK consists of an evaluation board for the Automotive 2-
channel Half-Bridge Driver IC and USB cable. Also a GUI can be
provided by ROHM for easy SPI register configuration.
The key component of the evaluation board is the ROHM
BD16950EFV-C which is an AEC-Q100 automotive qualified 2-
channel Half-Bridge Gate Driver, controlled by an external MCU
through a 16-bit Serial Peripheral Interface (SPI). Independent
control of low-side and high-side N-MOSFETS allows for several
MCU controlled modes. A programmable drive current is
available to adjust slew-rates, in order to meet EMI and power
dissipation requirements. Diagnostics can be read and reset by
an external MCU.
Besides this motor driver IC the evaluation board contains all
external components necessary for operation including a full
bridge created by discrete FETs, an LDO for logic supply, SPI
interface and various test points for signal monitoring.
© 2021 ROHM Co., Ltd.
User's Guide
BD16950EFV-C Key Specifications
Wide Input voltage range........................5.5 to 40V
Gate Drive Voltage (Half Bridge) .......................11V
VS quiescent supply current...............................0 μA
VCC quiescent supply current ........................2 μA
Integrated Charge Pump Frequency ...........500 kHz
Programmable Parameters.............SPI (7 MHz max)
EVK Features
Plug & Play DC Motor Evaluation Kit
No need for driver installation due to GUI design as
Human Interface Device
Single Power Supply with Reverse Polarity Protection
On Board Logic Supply by LDO or USB
Discrete H-Bridge FETs with high current capability
Test pins for easy signal monitoring
No. 63UG103E Rev.002
2023.12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rohm BD16950EFV-EVK-001
Summary of Contents for Rohm BD16950EFV-EVK-001
- Page 1 Half-Bridge Gate Driver IC BD16950EFV-EVK-001 The ROHM BD16950EFV-C is an AEC-Q100 automotive qualified 2-channel Half-Bridge Gate Driver IC, suitable for DC motor drive in Automotive applications such as Power Window Lifter, Sunroof Module, Wiper, Seat belt tensioner, Seat positioning, 2H motors etc.
-
Page 2: Table Of Contents
Instructions for Safe Use ........................... 4 Hardware Description ..........................5 Schematic ............................. 5 PCB Layout and Component Placement ....................... 6 Bill of Materials ............................7 Operating Instructions ..........................8 Hardware .............................. 8 Software ............................... 9 © 2021 ROHM Co., Ltd. No. 63UG103E Rev.002 2/12 2023.12... -
Page 3: Introduction
User’s Guide 1. Introduction This evaluation kit (EVK) manual describes the usage of ROHM’s BD16950EFV-EVK-001. The purpose of the EVK is to allow the test and evaluation of the motor driver IC BD16950EFV-C in professional research and development environments. This document provides guidelines to quickly setup the hardware and software for fast and easy motor driver IC performance evaluation. -
Page 4: Instructions For Safe Use
Do not operate the evaluation kit outside its specified ratings. ▪ Take care to monitor the PCB and IC temperatures in particular when operating with high power loads and do not exceed the absolute maximum ratings of all components. © 2021 ROHM Co., Ltd. No. 63UG103E Rev.002 4/12 2023.12... -
Page 5: Hardware Description
BD16950EFV-EVK-001 User’s Guide 3. Hardware Description 3.1 Schematic BD16950EFV-C Figure 1: Evaluation Board Schematic © 2021 ROHM Co., Ltd. No. 63UG103E Rev.002 5/12 2023.12... -
Page 6: Pcb Layout And Component Placement
Figure 2: TOP side PCB layout pattern Figure 3: TOP side component placement Figure 4: BOTTOM side PCB layout pattern Figure 5: BOTTOM side component placement (as seen from TOP side) (as seen from TOP side) © 2021 ROHM Co., Ltd. No. 63UG103E Rev.002 6/12 2023.12... -
Page 7: Bill Of Materials
22 kΩ, 0805 Chip Resistor, Surface Mount All Testpins Probe Ring Test Pin, Through Hole BD16950EFV-C ROHM Motor Driver BD450M2FP3-C ROHM LDO Regulator IC Table 1: Evaluation Board Bill of Materials © 2021 ROHM Co., Ltd. No. 63UG103E Rev.002 7/12 2023.12... -
Page 8: Operating Instructions
Can hardwire the RSTB pin to VCC. Typically not required closed Feedback of low side transistors source to BD16950EFV-C closed Don’t care. Different GND signals are hard-connected anyway. Table 2: Typical Jumper configuration © 2021 ROHM Co., Ltd. No. 63UG103E Rev.002 8/12 2023.12... -
Page 9: Software
The BD16950EFV-C software user interface consists of an .exe and .dll file, which have to be copied in one folder of your Windows PC. Please check with your local ROHM sales office or ROHM customer support system to have the latest software version. - Page 10 0x06: Half-br Motor Op. set 1 CCPT[ ] 0x07: OCP setting OCPHD[ ], OCPLD[ ] 0x08: OCP Filter time setting OCP-FILT[] Table 5: (SET pull-down menu) Pre-defined register setting value v2 [hex] © 2021 ROHM Co., Ltd. No. 63UG103E Rev.002 10/12 2023.12...
- Page 11 BD16950EFV-EVK-001 User’s Guide Figure 7: GUI after successful start-up Figure 8: USB Cable not detected Figure 9: Recall pre-defined register settings Figure 10: Selecting SPI register to read or write © 2021 ROHM Co., Ltd. No. 63UG103E Rev.002 11/12 2023.12...
- Page 12 Revision History Date Revision Number Description 2021.2 New Release Typo corrected register value and description on Table 3. [p.10] 2023.12 Updated Bill of Materials of EVK on Table 1 [p.7] © 2021 ROHM Co., Ltd. No. 63UG103E Rev.002 12/12 2023.12...
