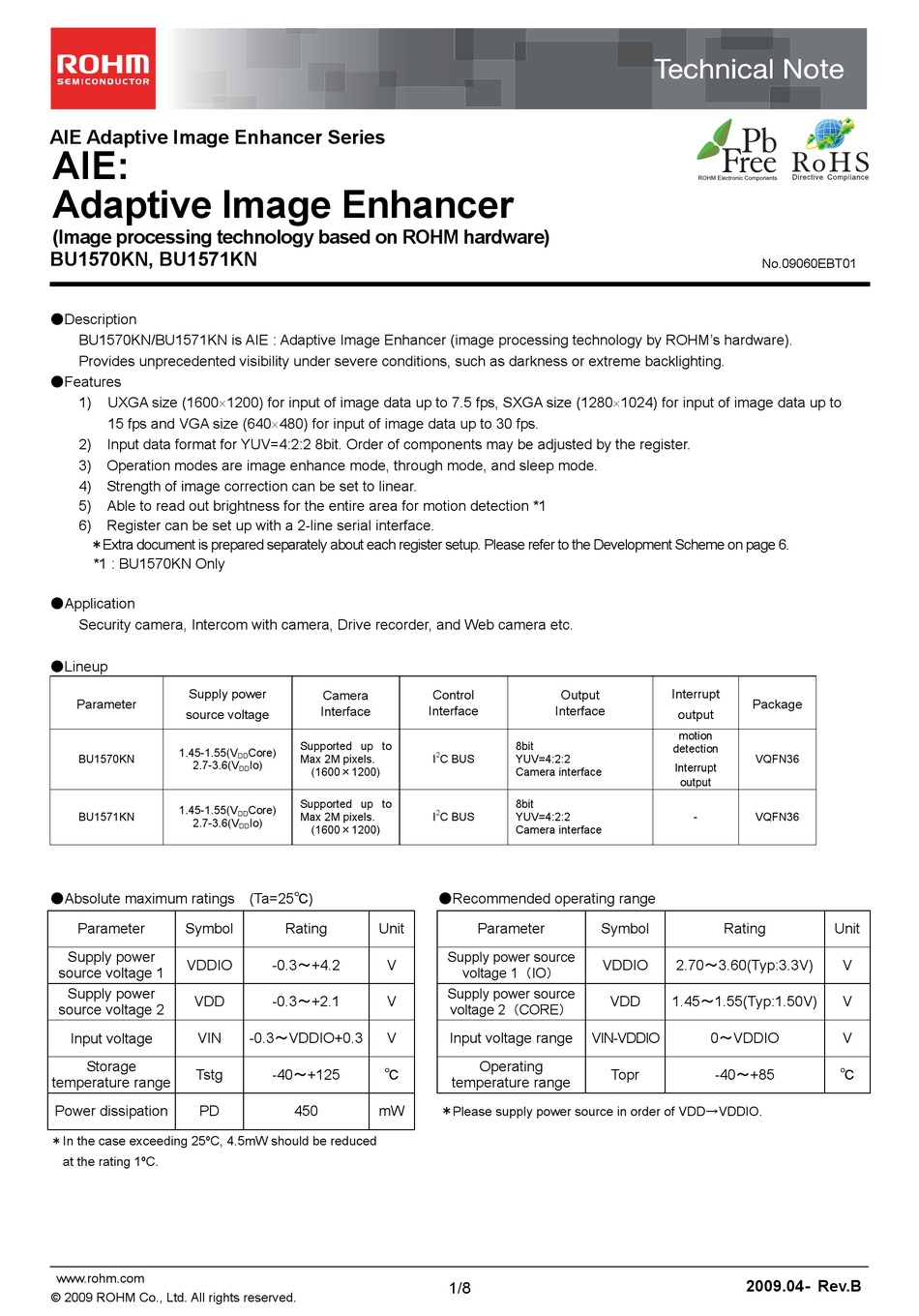

Rohm BU1570KN Technical Notes

AIE Adaptive Image Enhancer Series
AIE:
Adaptive Image Enhancer
(Image processing technology based on ROHM hardware)
BU1570KN, BU1571KN
●Description
BU1570KN/BU1571KN is AIE : Adaptive Image Enhancer (image processing technology by ROHM's hardware).
Provides unprecedented visibility under severe conditions, such as darkness or extreme backlighting.
●Features
1) UXGA size (16001200) for input of image data up to 7.5 fps, SXGA size (12801024) for input of image data up to
15 fps and VGA size (640480) for input of image data up to 30 fps.
2) Input data format for YUV=4:2:2 8bit. Order of components may be adjusted by the register.
3) Operation modes are image enhance mode, through mode, and sleep mode.
4) Strength of image correction can be set to linear.
5) Able to read out brightness for the entire area for motion detection *1
6) Register can be set up with a 2-line serial interface.
＊Extra document is prepared separately about each register setup. Please refer to the Development Scheme on page 6.
*1 : BU1570KN Only
●Application
Security camera, Intercom with camera, Drive recorder, and Web camera etc.
●Lineup
Supply power
Parameter
source voltage
1.45-1.55(V
BU1570KN
2.7-3.6(V
1.45-1.55(V
BU1571KN
2.7-3.6(V
●Absolute maximum ratings (Ta=25℃)
Parameter Symbol
Supply power
VDDIO
source voltage 1
Supply power
VDD
source voltage 2
Input voltage VIN
Storage
Tstg
temperature range
Power dissipation PD
＊In the case exceeding 25ºC, 4.5mW should be reduced
at the rating 1ºC.
www.rohm.com
© 2009 ROHM Co., Ltd. All rights reserved.
Camera
Interface
Supported up to
Core)
DD
Max 2M pixels.
Io)
DD
(1600×1200)
Supported up to
Core)
DD
Max 2M pixels.
Io)
DD
(1600×1200)
Rating Unit
-0.3～+4.2 V
-0.3～+2.1 V
-0.3～VDDIO+0.3 V
-40～+125 ℃
450 mW
Control Output
Interface Interface
8bit
2
I C BUS YUV=4:2:2
Camera interface
8bit
2
I C BUS YUV=4:2:2
Camera interface
●Recommended operating range
Parameter Symbol
Supply power source
voltage 1（IO）
Supply power source
voltage 2（CORE）
Input voltage range VIN-VDDIO
Operating
temperature range
＊
Please supply power source in order of VDD→VDDIO.
1/8
No.09060EBT01
Interrupt
Package
output
motion
detection
VQFN36
Interrupt
output
- VQFN36
Rating
VDDIO 2.70～3.60(Typ:3.3V)
VDD 1.45～1.55(Typ:1.50V)
0～VDDIO
Topr -40～+85
2009.04- Rev.B
Unit
V
V
V
℃
