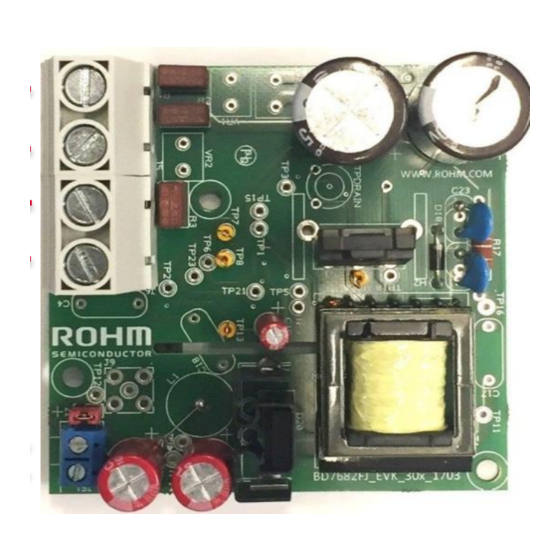

Rohm BD7682FJ-EVK-301 Quick Start Manual

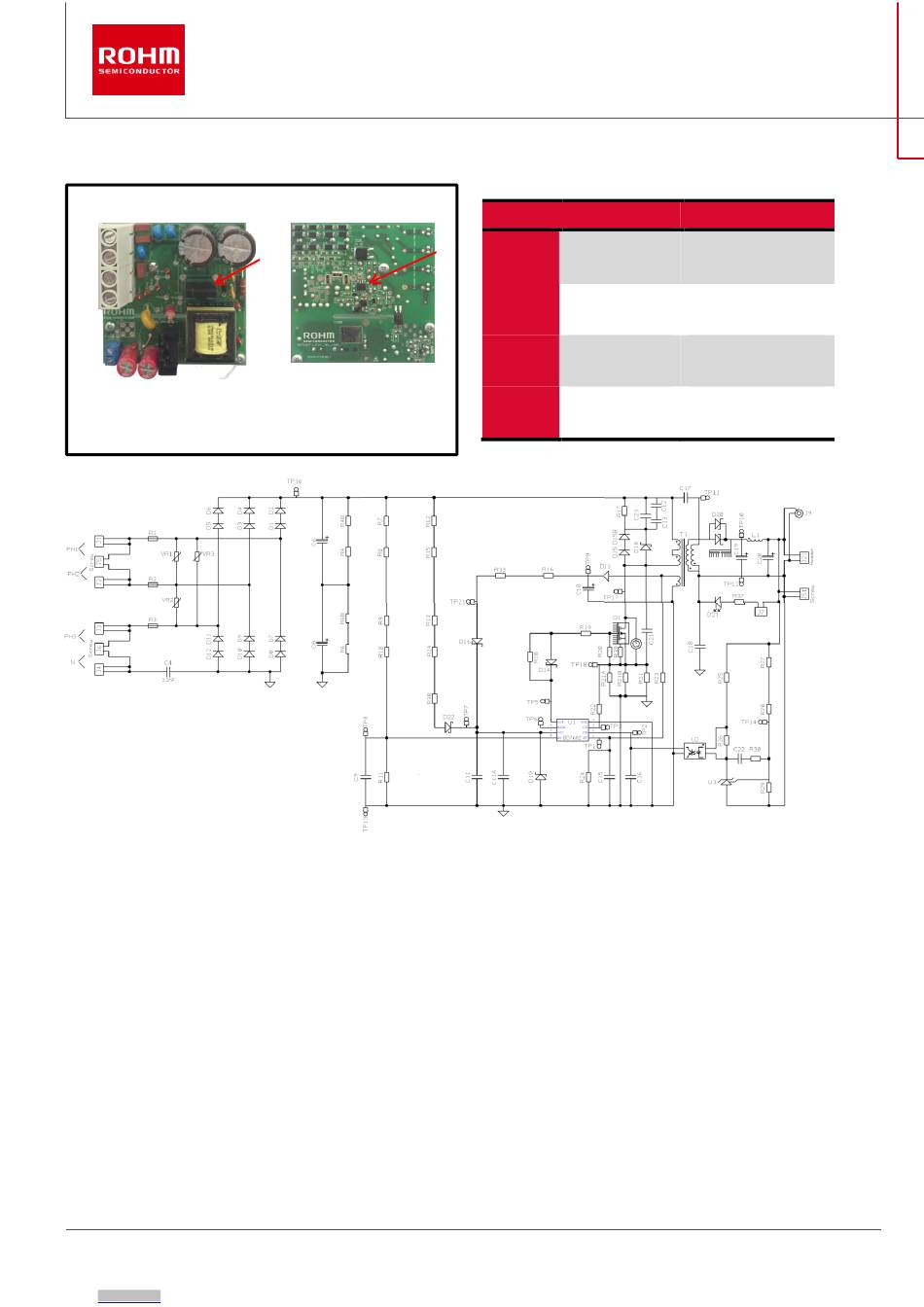

BD7682FJ-EVK-301 BOARD QUICK START GUIDE
1-1700V SiC MOSFET SCT2H12NZ
1 – 1700V SiC MOSFET SCT2H12NZ
2- Quasi Resonant Controller BD7682FJ-LB
2 – Quasi-resonant controller BD7F682FJ-LB
Board Dimensions 80mmx80mm
Board dimensions 80mm x 80mm
- Check carefully that the input voltages are within the maximum input range in table 1.
- Double check the cabling before powering the board.
- This board is protected against overload and short circuit.
- Avoid any imperfect connection that can create sparks
- Check the isolation class and section of the cables.
- Apply all appropriate checks and precautions for use of a high voltage board.
- Refer to the notice at the end of this document for proper usage of this board.
- Only use in a technical environment by professionals trained to safely manage high voltage boards.
- This board is only for evaluation purposes and it's not guaranteed for prolonged usage or usage
in any final product
© 2018 ROHM Co., Ltd.
Arrow.com.
Downloaded from
1

Important information before connecting and powering the board:

Param. Description
Input
2
V
IN
voltage
Output
V
OUT
voltage
Output
P
OUT
power
Switching
f
sw
frequency
1/4
Quick Start Guide
Value
210...480 V
AC
300...to 900 V
DC
12 V
± 3%
DC
30 W @ V
IN.MIN
40 W @ V
IN.MAX
90..120 kHz
No. 60QS001E Rev.001
19.Feb.2018
