- Page 1 — SAFETY PRODUCTS Eden OSSD Coded non-contact safety sensor Product Manual 2TLC172272M0201 Rev.H PRODUCT MANUAL new.abb.com/low-voltage/products/safety-products...
- Page 2 Suitability for use ABB shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer’s application or use of the product. Third party certificates for the products are available at https://new.abb.com/low-voltage/products/safety-products. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product, machine, system, or other application or use.
-
Page 3: Table Of Contents
Table of Contents Introduction ........................5 Scope ................................ 5 Audience ..............................5 Prerequisites ............................5 Special notes ............................5 Safety ..........................6 Safety precautions ..........................6 Product description ......................7 Models of Adam and Eva ........................8 Adam OSSD .............................. 8 Eva ................................ - Page 4 Testing the safety functions ........................ 22 LED indication ......................... 23 Maintenance ........................24 Maintenance precautions ........................24 Troubleshooting ............................ 24 Model overview ....................... 25 Accessories ............................25 10 Technical data ......................... 26 Guideline for chemical resistance ......................28 Eden dimensions ........................... 29 CAD model .............................
-
Page 5: Introduction
This document is intended for authorized personnel. Prerequisites It is assumed that the reader of this document has knowledge of the following: • Basic knowledge of ABB safety products. • Knowledge of machine safety. Special notes Pay attention to special notes in the document:... -
Page 6: Safety
2 Safety Safety precautions The safety precautions must be followed during installation, operation, maintenance and troubleshooting. It is the responsibility of the user to ensure the correct overall functionality of its systems and machines. Warning! Carefully read through the entire product manual before using the device. Warning! The devices shall be installed by authorized personnel following the Safety regulations, standards and the Machinery directive. -
Page 7: Product Description

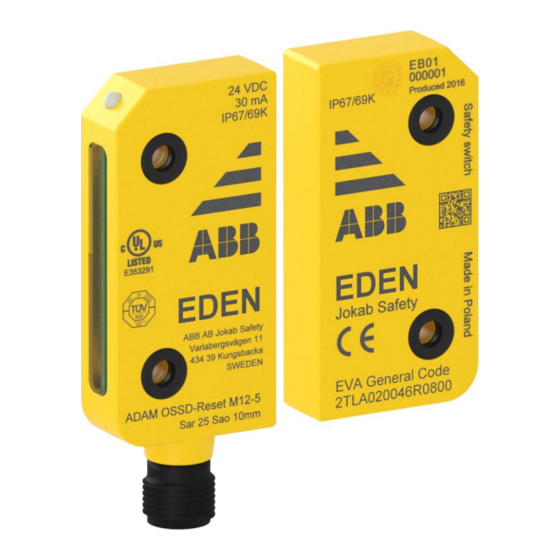

3 Product description Eden OSSD sensor consists of two separate devices, Adam and Eva, intended for use as interlocking device for gates, hatches etc. Eva can be general coded or unique coded. Eden OSSD meets the coding requirements according to EN ISO 14119:2013 regarding manipulation protection. -
Page 8: Models Of Adam And Eva
Models of Adam and Eva Eden communicates with OSSD signals and can be connected to any safety module that handles OSSD-signals. Up to 30 Eden sensors can be connected in series without reducing the achieved performance level. Adam and Eva are acquired separately, and it is possible to mix different models of Adam OSSD in the same safety circuit. -
Page 9: Eva
Eva exists in different models. It is possible to mix different models of Eva in the same safety circuit. Eva General code Eva units with general code all have the same code and fulfills the requirement for a low-level coded interlocking device according to EN ISO 14119:2013. -
Page 10: Electrical Connections
4 Electrical connections Note! Use a suitably insulated low-voltage supply system type SELV or PELV. Note! Connection examples are applicable also on corresponding Eden C models. Adam OSSD-Info M12-8 M12 8-pole male from M12 8-pole female from cable side cable side M12-connector: (8-pole male) White:... -
Page 11: Adam Ossd-Info M12-5
OSSD signal 1 Out 3) Blue: 0 VDC 4) Black: OSSD signal 2 Out 5) Grey: Reset/Indication Note! The use of shielded cable is recommended for enhanced electromagnetic immunity. Caution! All cable colors according to ABB standard cables. 2TLC172272M0201 Rev.H... -
Page 12: Connection Of Cable C5, C8 In M12 C01-C04 Connectors
Connection of cable C5, C8 in M12 C01-C04 connectors Female 5-pin connector (M12 C01): Brown 2) White Male 5-pin connector (M12 C02): 3) Blue 4) Black 5) Grey Female 8-pin connector (M12 C03): White 2) Brown Male 8-pin connector (M12 C04): 3) Green 4) Yellow 5) Grey... -
Page 13: Connection Of Reset Button To Adam Ossd-Reset
The maximum current consumption for the indication lamp is 30 mA. Smile 12RF and Smile 12RG are Reset buttons with indication lamps from ABB indented to be used together with Adam OSSD- Reset. The minimum current consumption needed through the lamp is 10 mA. If no lamp is used, a 4.7 kOhm resistor can be used instead. - Page 14 Serial connection of three Adam OSSD-Reset M12-8 through M12-3G with Smile 12RG to a safety relay, Pluto or another safety PLC (i.e. ABB AC500-S). 2TLC172272M0201 Rev.H...
- Page 15 Individual connection of three Adam OSSD-Reset M12-5 with Smile 12RF to a Pluto or another safety PLC (i.e. ABB AC500-S). 2TLC172272M0201 Rev.H...
-
Page 16: Connection Examples
5 Connection examples Adam OSSD-Info connected to Sentry * NOTE! Always use transient suppressors when inductive loads. Several Adam OSSD-Info connected in series A) Three Adam OSSD-M12-8 connected in series. 2TLC172272M0201 Rev.H... -
Page 17: Installation
6 Installation Installation precautions Warning! All safety functions shall be tested before starting up the system. • Note that the detection distance can be affected when Eden is mounted close to metal. • The Eden can be mounted on metal but must not be surrounded. •... -
Page 18: Detection Distance
Detection distance Eva can be turned in several different ways relative to Adam, see details in the figure below. The green fields in the picture show the detection range of Adam relative to Eva. The Eva is detected when the two coils (see red-marked areas, image below) in Eva are in contact with the green field. The figures above shows maximum detection distances. -
Page 19: Mounting
Mounting Depending on the cable connector used for the connection to Eden, one or two distance plates might be required for correct mounting to avoid damaging Adam. It is recommended to use the distance plates DA 1B, supplied with the Adam, see figure below. Also, the mounting spacers DA 2B supplied must be used to physically protect Eden from damage. -
Page 20: Mounting Procedure
Mounting procedure Fasten each sensor with two M4-screws. Safety screw SM4x20 (2TLA020053R4200) is recommended. The DA 2B mounting spacers must be used to physically protect Eden from damage. 2. Use max tightening torque 1.0 Nm on screws. 3. Lock screw with Loctite or similar if necessary, to prevent easy dismounting (refer to risk assessment). -
Page 21: Teaching The Code
Teaching the code Adam is without code in its factory setting mode and need to be programmed with the code from an Eva (General or Unique coded). The code of the first Eva detected by the Adam is automatically programmed as soon as Eva is within the detection distance. If Adam is programmed to accept an Eva with a general code, it will accept all Eva units with a general code. -
Page 22: Erasing Existing Codes From Adam M12-8
Erasing existing codes from Adam M12-8 Remove Eva from Adam’s detection range. 2. Disconnect the power supply on pin 2 on the Adam unit. 3. Connect +24 VDC to pin 1 and 6. 4. Connect the power supply on pin 2 on the Adam unit. 5. -
Page 23: Led Indication
7 LED indication The non-safe status LED on Adam shows the status of the Eden sensor and the output status as follows: LED on Adam Description Safety circuit Green Valid Eva within range Closed Flashing green Valid Eva within range, waiting for reset Open Flashing red/green Valid Eva within range, no valid in signal... -
Page 24: Maintenance
Warning! In case of breakdown or damage to the product, contact ABB. Do not try to repair the product. It might accidentally cause permanent damage, impairing the safety of the device and in turn lead to serious injury to personnel. -
Page 25: Model Overview
Eva C General code 2TLA020046R0801 General code, coated Eva Unique code 2TLA020046R0900 Unique code Eva C Unique code 2TLA020046R0901 Unique code, coated Accessories Accessories, spare parts and cables are ordered separately. For a complete list, see the ABB safety products catalog. 2TLC172272M0201 Rev.H... -
Page 26: Technical Data
10 Technical data Manufacturer Address ABB Electrification Sweden AB SE-721 61 Västerås Sweden Power supply Rated operating voltage +24 VDC +15 % -40 % Use SELV/PELV Current consumption 30 mA at 24 VDC 35 mA at 18 VDC (45 mA at 12 VDC) Pin 5 (Information/Reset button pin) Info: max 25 mA, Reset: max 30 mA (VCC –... - Page 27 Information for use in USA / Canada Enclosure Type 1, 4, 4x Intended use Applications according to NFPA 79 Power source Only suitable for use in a limited voltage / current circuitry. The limited voltage / current source must comply with one of the following: a) An isolating device such that the maximum open circuit voltage potential available to the circuit is not more than +24 VDC and...
-
Page 28: Guideline For Chemical Resistance
Guideline for chemical resistance Chemicals Eden OSSD Hydrocarbons aliphatic Good aromatic Good halogenated - fully Poor/Fair - partly Poor Alcohols Good Phenols Poor Ketones Fair/ Good Amines Not tested Esters Fair/ Good Ethers Good Acids inorganic Good organic Fair oxidizing... -
Page 29: Eden Dimensions
Eden dimensions Adam M12, 5 pole Adam M12, 8 pole female. Contact seen female. Contact seen from cable side. from cable side. All dimensions in millimetres. CAD model For CAD models please visit new.abb.com/low-voltage/products/safety-products 2TLC172272M0201 Rev.H... -
Page 30: Declaration Of Conformity
11 Declaration of conformity 2TLC172272M0201 Rev.H... - Page 31 2TLC172272M0201 Rev.H...
