Waterworks UNWO20 Installation Manuallines

INSTALLATION GUIDELINES
TUB DRAIN

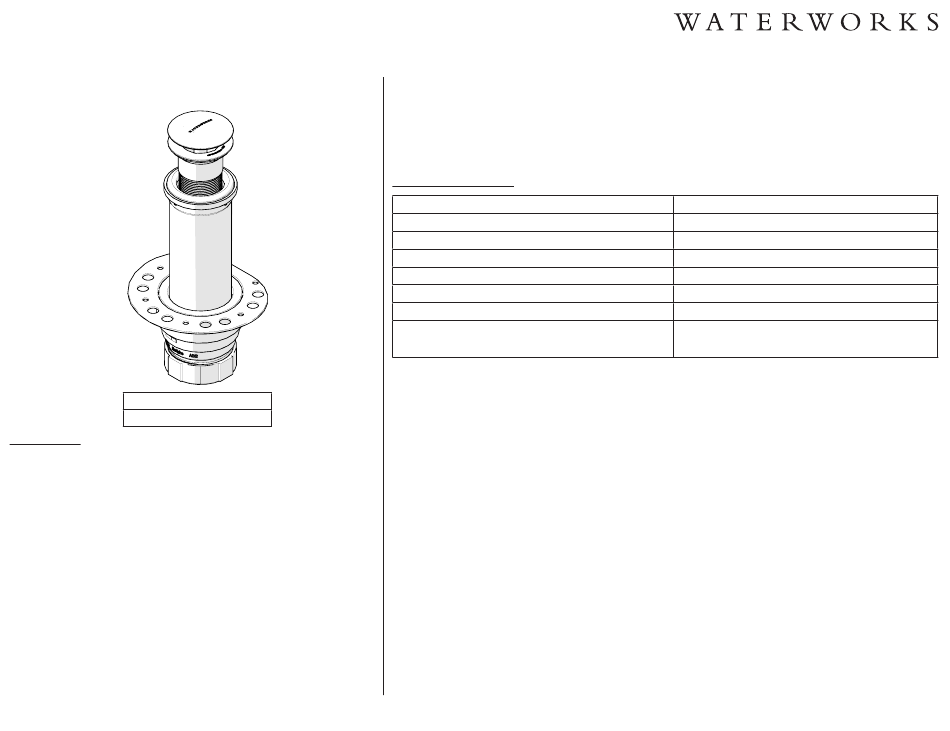

UNIVERSAL PUSH-TOUCH TUB DRAIN AND DOCKING STATION
WITHOUT OVERFLOW
STYLE
UNWO20
IMPORTANT:
¾ This product must be installed by a well experienced and
professional licensed contractor.
¾ Be sure your installation conforms to all federal, state, and local
codes.
¾ Immediately after receiving the BATHTUB and removal of packing,
you MUST inspect the unit for freight damage. Any claims for
damage, whether apparent or hidden, must be made to the carrier
immediately in order for them to assume all associated costs.
Should inspection reveal any defect in the finish, do not install
the BATHTUB. Damage or defect to the finish claimed after the
BATHTUB is installed is excluded from the warranty. The warranty
DOES NOT cover labor or materials to remove or reinstall the
BATHTUB.
¾ To ensure this product is installed properly, you must read and
follow these guidelines.
¾ The owner/user of this product must keep this information for
future reference.
PRODUCT SUPPORT | 800.927.2120 | WATERWORKS.COM
¾ Inspect this product to ensure you have all the parts required for proper installation and take all
necessary precautions to ensure the BATHTUB is protected during installation.
¾ Adequate floor support is required. Ensure the BATHTUB is properly supported by the base.
¾ The use of certain plumber' putty may stain stone or tile surfaces.
¾ If further assistance is required, please contact Product Support at 1-800-927-2120 Monday through
Friday, 8am – 6pm EST.
TECHNICAL DETAILS:
DETAIL
DRAIN DEPTH MAXIMUM
DRAIN DEPTH MINIMUM
DRAIN HOLE DIAMETER
DRAIN STYLE
FITTINGS HOLE DIAMETER
OUTLET CONNECTION SIZE
OUTLET CONNECTION TYPE
SPECIFICATION
2" [51mm]
1-3/8" [35mm]
2" [51mm]
PUSH-TOUCH
4" [102mm]
1-1/2"
SCH40 ABS AND PVC
SOCKET ADAPTER
PAGE 1 OF 5 | UPDATED ON 8.16.2023
