Unytouch U24-P15 Specifications

Y
UN TOUCH
R
MANUFACTURING
POS PART NUMBERS
U24-P15 No operating system
U24-P15-XPP XP Pro system
Visit us:
www.unytouch.ca
sales@unytouch.ca
Ultra Spill Proof Series All in One POS
SPILL PROOF!
WARRANTY

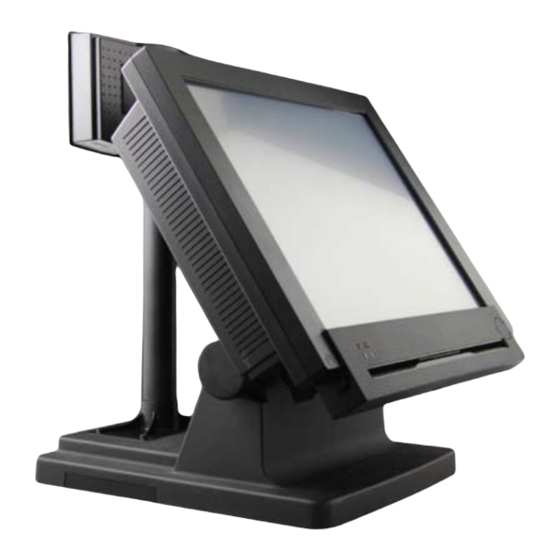

FRONT VIEW
APPLICATIONS:
- Industrial
- Gaming
- Custom or OEM Applications

MAIN SPECIFICATIONS

MAIN BOARD
CPU
Core Logic
System Memory
OS Support
2 YEAR
DISPLAY
TFT LCD
Brightness
Resolution
Touch Screen
Tilting Angle
STORAGE DEVICE
HDD
Compact Flash
I/O PORTS
FREE
Serial
VFD Display Pole
Parallel
USB
PS/2 Mouse
PS/2 Keyboard
LAN
VGA
DC Jack
SIDE VIEW
Cash Drawer
Audio Jack
Expansion
OTHERS
Power Input
Color
Compliance
Weight
Dimension (W x D x H)
Operation Temperature
Storage Temperature
Storage Humidity
"artistry in technology"
U24-P15
Celeron 2.0 Ghz up
Intel 852GM + ICH4
512 MB DDR
Windows 2000, NT, XP, Embedded XP (XPe), WinCE, WEPOS
15"
250 nits
1024 x 768 Pixel
5 Wire Resistive Type
0 ~ 80 Degree
1 x EIDE 2.5" Type
1 x Slot Type II, Non-removable
6 x RS-232
COM 3/4/5/6; DB-9, male
(Pin 9 RI or 5V or 12V Selectable)
COM 1/2: Internal for 1 Button and MSR
1 x DB-25, female, supports EPP/ECP
4 x USB 2.0 External
1 x USB 2.0 Internal for Touch Control BD
1 x USB 2.0 Internal Reserved
1 x 6-pin mini DIN
1 x 6-pin mini DIN
1 x RJ45, 10/100 Base-T, supports wake on LAN
1 x DB-15, female
1 x 12VDC Output for 2nd Display
1 x RJ11, 12VDC
1 x Mic In, 1 x Audio Out
1 x Mini PCI
External Adapter 12VDC 150W
Black
FCC / CE / WEEE / RoHS
10 Kgs
357 x 335 x 356 mm
5°C ~ 35 °C
-20°C ~ 60 °C
20% ~ 80% RH, non condensing
Unytouch Manufacturing, Inc.
27 Armthorpe Road
Brampton, Ontario, L6T 5M4
Phone: (905) 792-0542
Toll Free: (800) 260 6249
Fax: (905) 792-2843
