  • Page 1 COMM+8.LPCI User Manual | 7803c © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...

  • Page 2: Table Of Contents

    APPENDIX F – 7803 VERSUS 7803C ................................... 29 APPENDIX G – PCIE NATIVE CONTROL ..................................30 APPENDIX H – WAKING FROM SLEEP ..................................31 APPENDIX I - COMPLIANCE NOTICES ..................................32 WARRANTY ............................................33 © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...

  • Page 3: Introduction

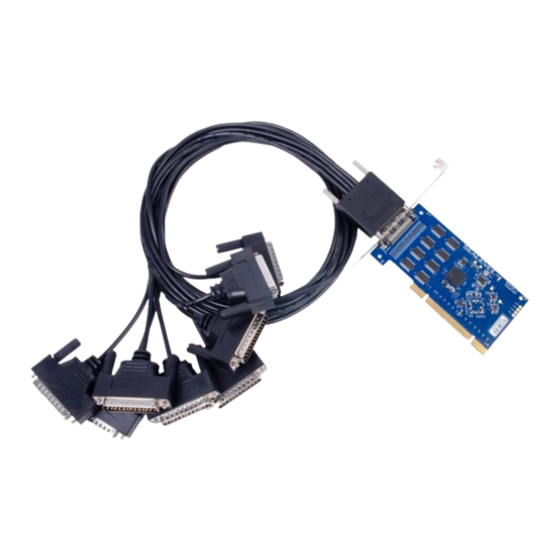

    Introduction The Sealevel COMM+8.LPCI (Item# 7803c) is a PCI compliant interface adapter with eight RS-232 asynchronous serial ports from a single PCI slot supporting data rates up to 230,400 bps, for industrial automation and control applications. All modem control signals are implemented for maximum compatibility with a wide range of serial peripherals.

  • Page 4: Before You Get Started

    Before You Get Started What’s Included The COMM+8.LPCI is shipped with the following items. If any of these items are missing or damaged, please contact Sealevel for replacement. COMM+8.LPCI Adapter • 7803c – PCI Board with a Low Profile Bracket and a Standard Profile Bracket •...
  • Page 5 Optional Items Depending upon your application, you are likely to find one or more of the following items useful with the 7803c. All items can be purchased from our website (www.sealevel.com) by calling our sales team at (864) 843-4343. DB25 Serial Extension Cable (Part Number CA104) The CA104 is a standard DB25F to DB25M serial extension cable.
  • Page 6 DB9F 72 inch extension cable (Item# CA127). The TB05 includes holes for board or panel mounting. The TB05 is designed to connect directly to Sealevel DB9 serial cards or any cable with a DB9M connector Terminal Block Kit (Part Number KT104)

  • Page 7: Card Setup

    The bit rate difference is within the +/– 2% recommended tolerance for proper serial communication. On-board LED indicator Power LED (D1) is lit when the 7803c card and the UART [U6] are powered. © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...

  • Page 8: Technical Description

    Technical Description The Sealevel Systems 7803c provides a PCI interface adapter with eight (8) asynchronous RS-232 serial ports for modems, printers, and plotters, as well as industrial automation and control applications. The 7803c provides UARTs with 256 byte TX and RX FIFOs, programmable baud rates, data format, and interrupt control.
  • Page 9 The 7803c includes a cable (Part Number CA231) with a Micro 68-pin male connector terminating to eight DB9 male connectors. The DB9M connectors are compatible with a variety of serial peripherals. Their RS-232 pin assignment meets EIA/TIA/ANSI-574 DTE specifications for DB9 type connectors. © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...
  • Page 10 Pleas e term inate any unus ed control s ignals . The m os t com m on way to do this in RS-232 m ode is to connect RTS to CTS and RI, and to connect DTR to DCD and DSR. © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...

  • Page 11: Technical Specifications

    Mean Time Between Failure Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Power Consumption Typical Power Draw: 1.4 W...

  • Page 12: Software Installation

    No Sealevel software required. Proceed to Linux Installation section. Windows Installation To ins tall Sealevel s oftware, you m us t log in as an adm inis trator or have adm inis trator privileges . 1. Open Windows Explorer and navigate to the downloaded Sealevel software.
  • Page 13 3. Once opened Select ‘Next’ as demonstrated in the image below. 4. When the ‘License Agreement’ window appears, accept the terms, and click ‘Next’ to continue. If you do not accept the terms of the agreement, the wizard will stop. © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...
  • Page 14 Click on the button to continue installation of your Sealevel software. The below warning will appear when ins talling the driver on Windows 7. Select “Ins tall this driver anyway”...
  • Page 15 If you have a kernel vers ion prior to 6.1 it is s till pos s ible that your dis tribution has incorporated s upport for earlier kernel vers ions . We recom m end res earching the s tatus of com m it 14ee78d it relates to your s pecific dis tribution. © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...
  • Page 16 For additional software support or if you have any questions about using the 7803c in your system, please call Sealevel Systems’ Technical Support, (864) 843-4343. Our technical support is free and available from 8:00 AM - 5:00 PM Eastern Time, Monday through Friday. For email support contact: support@sealevel.com.

  • Page 17: Hardware Installation

    = 7812500) is a XR17V35X 1.295751] 0000:01:00.0: ttyS6 at MMIO 0xf5cfd800 (irq = 24, base_baud = 7812500) is a XR17V35X 1.295840] 0000:01:00.0: ttyS7 at MMIO 0xf5cfdc00 (irq = 24, base_baud = 7812500) is a XR17V35X © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...
  • Page 18 To completely remove the hardware and associated software, follow the steps in the order they appear. Start with the hardware ins talled in a PCI s lot. Do not rem ove until ins tructed to do s o. © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...
  • Page 19 If you want to completely remove the hardware and software from your computer, power down your computer, remove the device from the PCI slot, and then reboot your computer to complete the uninstallation. © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...

  • Page 20: Appendix A - Troubleshooting

    Appendix A – Troubleshooting Once you have confirmed that the serial adapter COM ports are listed in Device Manager, use the Sealevel WinSSD utility to verify communications. Detailed help is included in the WinSSD utility. If you have a loopback plug, put it on the adapter connector. If you do not have a loopback plug, you can use female jumper wires to make the connection to verify the functionality.
  • Page 21 This will first open the COM port. From this tab the port can also be closed (See image below). Click the ‘Settings’ button to open the COM Port Properties dialog box. This will allow the Port Settings to be altered. © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...
  • Page 22 Change your parameters to 9600 bits per second, 8 data bits, no parity, 1 stop bit, and no flow control, as pictured below. Click ‘Apply’ and ‘OK’. In the main WinSSD window, click on the ‘BERT’ tab (Bit Error Rate test). Click on the ‘Start’ button. © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...
  • Page 23 If these steps do not solve your problem, please call Sealevel Systems’ Technical Support, (864) 843-4343. Our technical support is free and available from 8:00 A.M.- 5:00 P.M. Eastern Time Monday through Friday.

  • Page 24: Appendix B - Handling Instructions

    Keep the work area free of non-conductive materials such as ordinary plastic assembly aids and • Styrofoam. Use field service tools such as cutters, screwdrivers, and vacuum cleaners that are conductive. • © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...

  • Page 25: Appendix C - Electrical Interface

    +10 volts) represents a binary 0 (space) and -12 volts (-3 to -10 volts) denote a binary 1 (mark). The RS-232 and the EIA/TIA-574 specification define two types of interface circuits Data Terminal Equipment (DTE) and Data Circuit-Terminating Equipment (DCE). The Sealevel Systems Adapter is a DTE interface. © Sealevel Systems, Inc.

  • Page 26: Appendix D - Asynchronous Communications

    The communication parameters are baud rate, parity, number of data bits per character, and stop bits (i.e., 9600,N,8,1). © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...

  • Page 27: Appendix E - Mechanical Drawing

    Appendix E – Mechanical Drawing © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...
  • Page 28 © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...

  • Page 29: Appendix F - 7803 Versus 7803C

    Manual (DIV1/DIV4 Jumper) Automatic Max Baud Rate Up to 460.8 Kbps Up to 230.4 Kbps Interrupt Status Port (ISP) Register Space Port Mapped Memory Mapped Minimum OS Required Windows XP Windows 7 © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...

  • Page 30: Appendix G - Pcie Native Control

    1. Open a Windows command prompt as an administrator. 2. Enter the command: bcdedit /set {current} pciexpress forcedisable 3. Restart the computer. 4. You may revert the change by running the command: bcdedit /set {current} pciexpress default © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...

  • Page 31: Appendix H - Waking From Sleep

    1. Navigate to Control Panel\Hardware and Sound\Power Options. 2. Click “Change when the computer sleeps” on the left-hand menu. 3. Select “Never” from the “Put the computer to sleep” dropdown menu. © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...

  • Page 32: Appendix I - Compliance Notices

    Always us e the cabling provided with this product if pos s ible. If no cable is provided or if an alternate cable is required, us e high quality s hielded cabling to m aintain com pliance with FCC/ EMC directives . © Sealevel Systems, Inc. 7803c Manual | SL9250 12/2023...

  • Page 33: Warranty

    Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
