GH5200 General description
Main Page > Autonomous Trackers

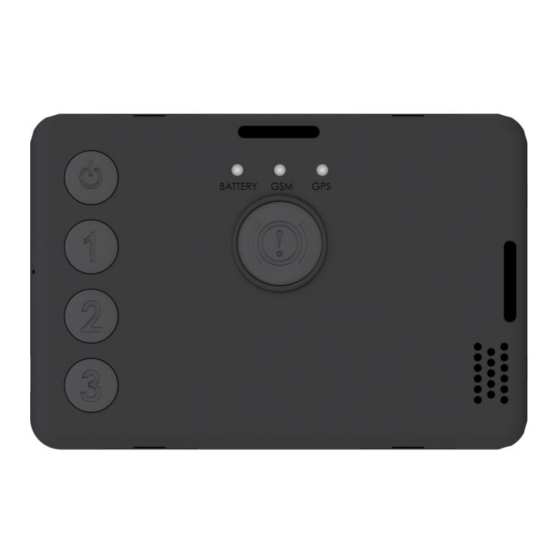

GH5200 is a tracking terminal with GNSS and GSM connectivity, which is able to collect device
coordinates and transfer them via GSM network to a server. This device is perfectly suitable for
applications, which require the location acquirement of remote objects.
Contents

1 Package contents

2 Basic characteristics

3 Technical features
4 Technical information about internal battery
5 Electrical characteristics
6 IC Notice
7 Radio frequency (RF) energy
Package contents
The GH5200 device is supplied to the customer in a cardboard box containing all the equipment that
is necessary for operation. The package contains:
GH5200 device;
3.7 V 1050 mAh rechargeable Li-ion battery;
USB cable.
Basic characteristics
GSM / GPRS / GNSS features:
Teltonika TM2500
GPRS class 12 (Up to 85.6 kbps);
SMS (text, data);
Integrated GNSS receiver;
Up to -165 dBm GNSS receiver sensitivity.
Hardware features:
Built-in movement sensor;
Built-in Bluetooth 4.0;
Internal High Gain GNSS antenna;
Internal High Gain GSM antenna;
Slim design;
Alarm button;
> GH5200 > GH5200 Manual
quad band module (GSM 850 / 900 / 1800 / 1900 MHz);
