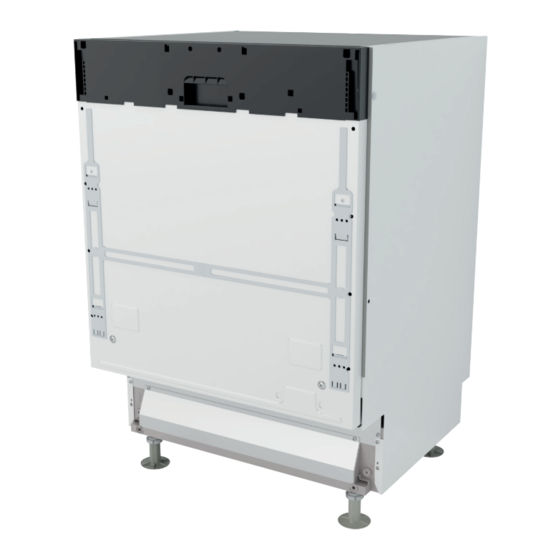

LAM8676
Built-In Dishwasher
LAM8607
Generic instructions, (To be used in conjunction with User Instructions).
l Please read this Installation Manual to ensure safe fitting and use of the appliance.
l The appliance should be fitted by a suitably competent and qualified person.
l Please keep these instructions in a safe place for future reference.
l Danger of suffocation keep packaging material away from children.
Installation Instructions
ISSUE v1.4
www.howdens.com/appliance-registration
Advertisement
Table of Contents
Related Manuals for Lamona LAM8676
Summary of Contents for Lamona LAM8676

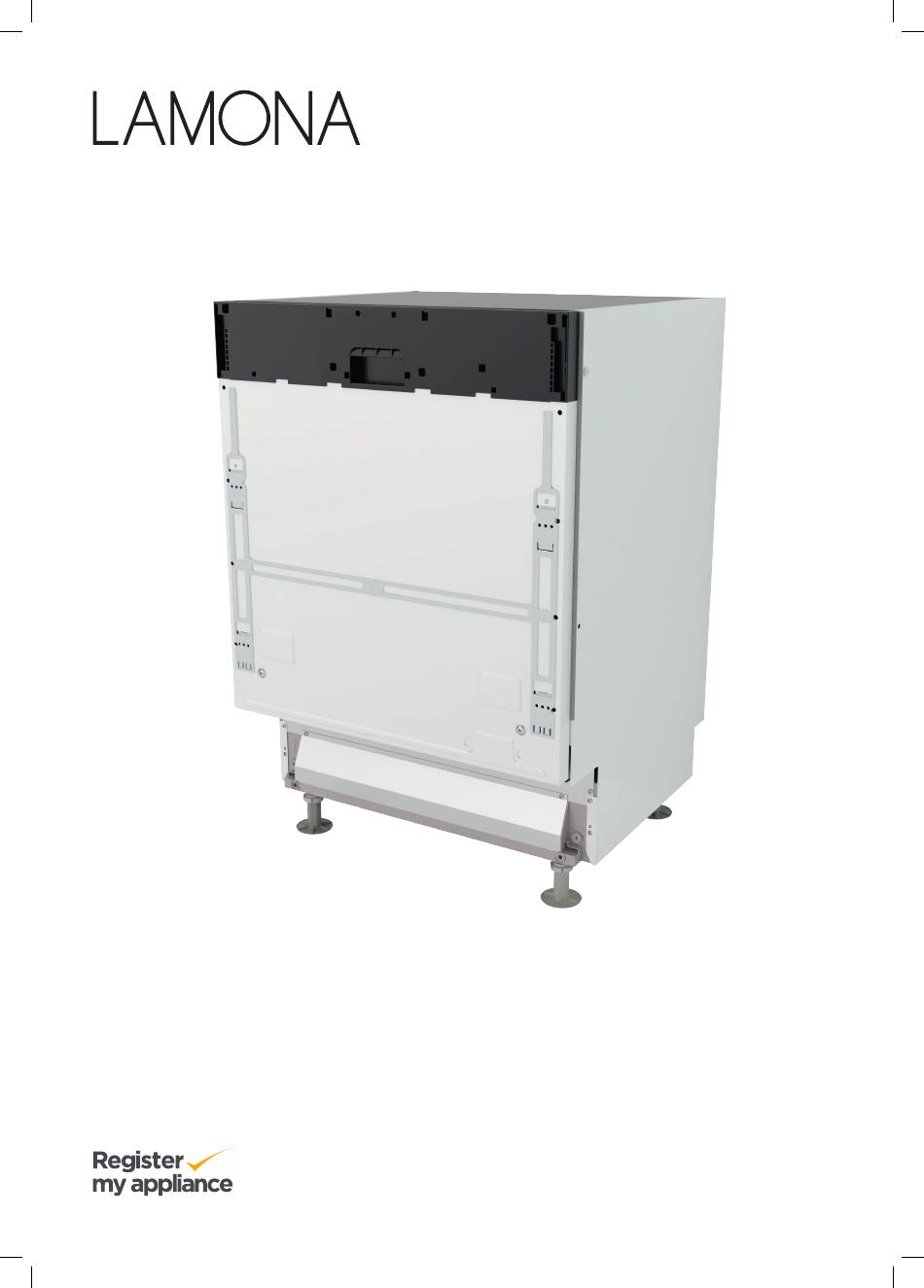

- Page 1 LAM8676 Built-In Dishwasher LAM8607 Generic instructions, (To be used in conjunction with User Instructions). l Please read this Installation Manual to ensure safe fitting and use of the appliance. l The appliance should be fitted by a suitably competent and qualified person.
- Page 3 Safety Information Two person lift. Dishwasher must Risk of injury: Do Not install a Ensure that all packing be fixed securely and Beware of sharp metal damaged machine. and transit protectors level. edges. Use gloves when have been removed handling. from the appliance before positioning.
-
Page 4: Table Of Contents
Should the mains cable need to be replaced, • If the water inlet hose is damaged, immediately contact a LAMONA Authorised Service Agent or a close the water supply valve and disconnect the suitably qualified person. mains plug from the mains socket. - Page 5 Tools required 10mm open ended spanner DO NOT use high speed impact power tools. Torx head Flat head Phillips head Installation Parts supplied +50mm Phillips head Phillips head Phillips head Side Spacer (4x13mm) (4x42mm) (4x36mm) Exclusive to Howdens...
-
Page 6: Dimensions
1 - Dimensions Position the dishwasher relative to service connections. 820-920mm For Profile Kitchens, see section 4. 550mm 598mm 570mm 818mm (+100) 600mm (+1) Fit and adjust the spacers to the niche width. (both sides - see page 9) Dishwasher 15mm 2 - Dishwasher connections Dishwasher... - Page 7 REMOVE CAP/END NOTE: Ensure hoses are not NOTE: If necessary loosen and Ensure cap/end is removed rotate the water hose towards kinked or trapped behind from waste pipe spigot. the water supply and re-tighten. the dishwasher. (Always use the new hose supplied with the dishwasher).
-
Page 8: Fit Feet And Raise 10-15Mm Below Worktop Height
3 - Fit feet and raise to 10-15mm below worktop height For standard installation, extension feet need to be fitted. 10-15mm Do not position Foot, in cabinet run at 50mm this stage. Plus foot addition +50mm Rear feet Front feet Flat head screw driver DO NOT use high speed... -
Page 9: Protection Strip For Timber Worktops
5 - Protection strip for timber worktops to avoid condensation damage Ensure a clean and NOTE: This strip must be fitted to timber worktops to dust free surface. Cut to fit. avoid damage. Ensure protection strip is set to edge of square edged worktops. -
Page 10: Adjust Feet And Raise Dishwasher To Underside Of Worktop (Level)
7 - Adjust feet and raise dishwasher to underside of worktop (level). Plumb & level (touch at front) It is critical that the dishwasher is installed level. Rear feet Front feet DO NOT use high speed Flat head impact power tools. screw driver DO NOT damage the plastic screw heads. -
Page 11: Standard Decor Door Preparation
9 - Standard decor door preparation 267mm 267mm 267mm 517mm Centre line (4x13) x2 Stage 8 screws x2 10 - Decor drawer frontals preparation 517mm 130mm 267mm 60mm 267mm 130mm 267mm Centre Line 2 x 356mm drawer fronts = 712mm Normal door height = 716mm Therefore space between drawer fronts = 3-4mm... -
Page 12: Fit Decor Door / Decor Drawer Frontals
11 - Fit decor door / decor drawer frontals DO NOT use hole 1, especially when fitting an integrated handle decor door. Fixing for standard decor door Phillips head 42mm numbers 3 and 6. (4x42mm) Fixing for decor drawer frontals Phillips head 42mm numbers 3, 4 and 6. -
Page 13: Final Adjustment And Secure Dishwasher
12 - Final adjustment and secure dishwasher It is critical that the dishwasher is installed level. Side fixing method for dishwashers Securing screws x4 positions Dishwasher Dishwasher Adjust the spacer to fill the gap between the dishwasher and the cabinet Do not overtighten Maximum 600mm (+1) 600mm (+1) -
Page 14: Fit Plinth
13 - Fit plinth Once decor door / decor drawer frontals are fitted correctly, fit the plinth. Final checks: Decor door opens and closes without clash? Dishwasher installed level Front Rear, Side Side? Hoses not kinked? 14 - Switch on water and electric Cold water supply 10-80 L/pm. - Page 15 Exclusive to Howdens...
- Page 16 Product serial number (Place sticker here) Product information correct at the time of publication in October 2023. The company has a policy of continuous product development and reserves the right to change any products and specifications given in this manual. Subject to the Terms and Conditions of Trading, a copy of the Howdens Terms and Conditions is available upon request.
