Summary of Contents for Lamona LAM8605

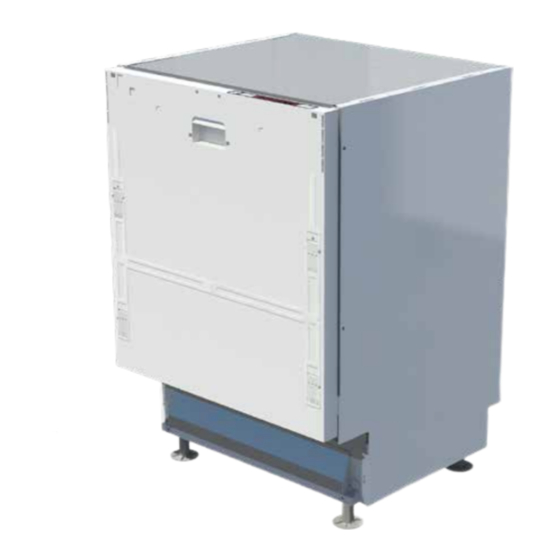

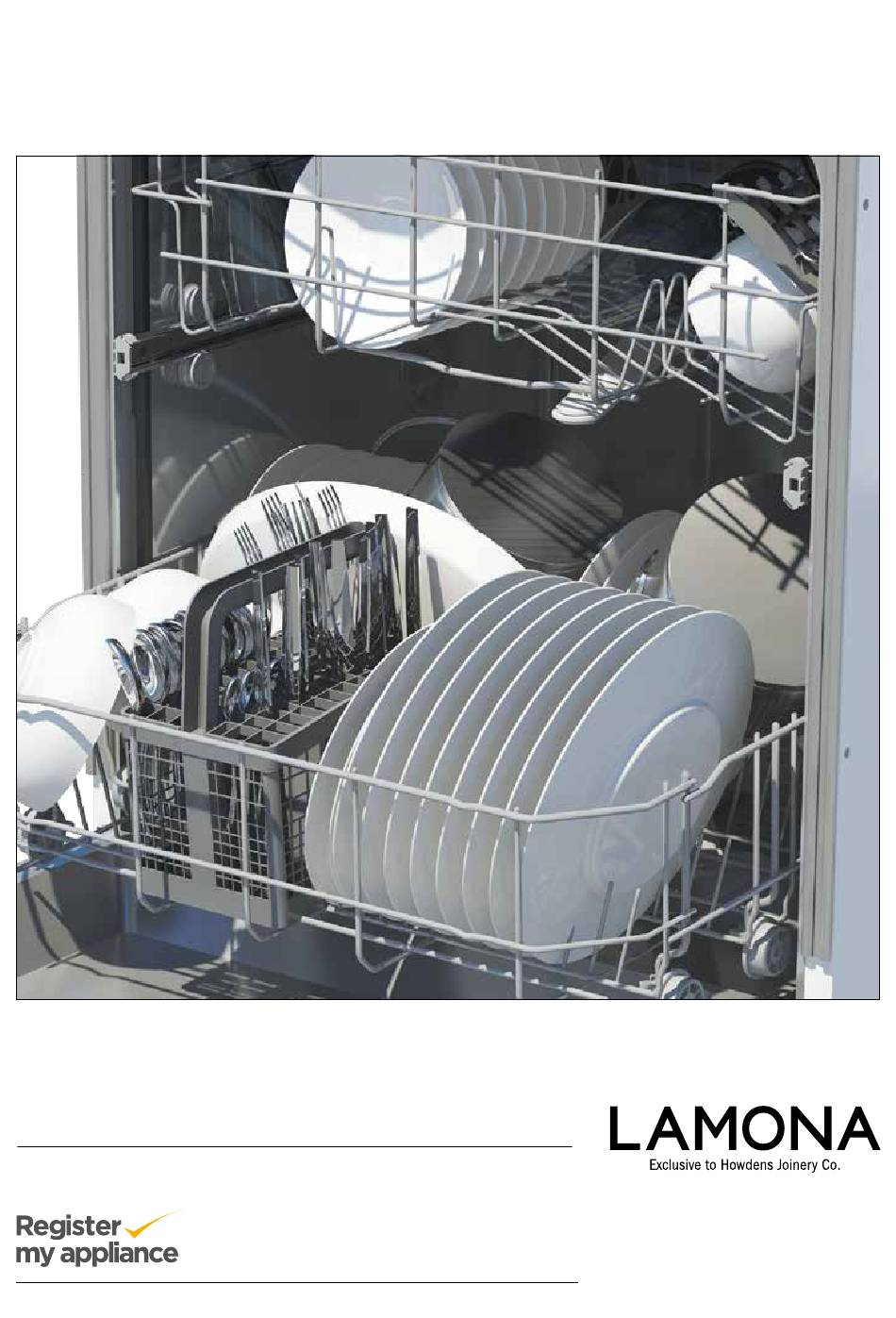

- Page 1 Dishwasher LAM8605 User Instructions www.howdens.com/appliance-registration...
- Page 2 www.howdens.com...
-
Page 3: Welcome
Welcome Dear Customer Congratulations on your choice of dishwasher which has been designed to give you excellent service. • Please read the User Instructions to ensure safe operation of the dishwasher. • Please keep these instructions in a safe place for your future reference. •... -
Page 4: Table Of Contents
Contents Register my appliance Welcome Dishwasher overview Safety information Children and vulnerable people safety General safety Installation Electrical connection Water connection Service Disposal Fitting a different electric plug 1 - Installation of dishwasher 2 - Before first use Check water hardness Set water hardness program Adding dishwasher salt p.10... -
Page 5: Dishwasher Overview
Dishwasher overview 10 11 12 13 14 22 21 20 19 18 1. Upper spray arm 12. Combi tablet indicator 2. Lower basket 13. Salt level indicator 3. Cutlery basket 14. Super rinse indicator 4. Detergent and rinse aid dispenser 15. -
Page 6: Safety Information
Should the mains cable need to be replaced, this must be carried out by This appliance is intended to be used in household and a LAMONA Authorised Service Agent or a suitably similar applications. qualified person. -
Page 7: Use
3. Connect the brown (live) wire to the terminal in the plug marked ‘L’ or coloured red. • When you contact a LAMONA Authorised Service Agent, ensure that you have the following With alternative plugs a 13 A fuse must be fitted either information from the rating plate. -
Page 8: Installation Of Dishwasher
Please follow these installation instructions in order • Any repairs or service work on this dishwasher to assemble and install your dishwasher easily and should only be carried out by a LAMONA Authorised correctly. Service Agent. • After unpacking your dishwasher, check for any •... -
Page 9: Set Water Hardness Program
Water Hardness level hardness Water hardness program setting °dE Level 1 Level 2 Level 3 10-15 Level 4 16-19 Level 5 20-24 Level 6 25-62 Set water hardness program Setting the correct water hardness program will increase washing efficiency. Switch On Cancel 3 sec. -
Page 10: Adding Dishwasher Salt
Adding dishwasher salt Before first use pour one litre of water into the salt container and then completely fill salt container with dishwasher salt. Some water and salt may spill out of the container. It is recommended to use a rinse program or complete a wash cycle to remove any spilled salt and prevent possible corrosion. -
Page 11: Daily Use
3 - Daily use 1. Open the water tap. 2. Load the dishwasher. 3. Add the detergent. 4. Press the On/Off button to activate the dishwasher. 5. Select and start the correct program for the type of load and degree of soil, (if the dishwasher is in program selection mode and the salt or rinse aid indicator is on, fill as necessary);... -
Page 12: Operating The Dishwasher
4 - Operating the dishwasher Loading the dishwasher Upper basket Ensure all items are dishwasher safe. • Remove large scraps of food from the dishes before placing in the dishwasher. • Place large or heavily soiled items in the lower basket. •... -
Page 13: Adjustable Shelves
Adjustable shelves Adjust by folding the shelf up (A), slide the shelf either up or down (B) and secure by folding the shelf down (C). Upper basket height adjustment (unloaded) DO NOT adjust the height when loaded with dishes. To adjust the height of the upper basket. •... -
Page 14: Adding The Detergent
Adding the detergent When using a powder • Full load and the dishes are relatively dirty, fill the 25cm 15cm main container (A) to 25cm³ level. • Half load and the dishes are slightly dirty, fill the main container (A) to 15cm³ level. •... -
Page 15: Choose A Program
Choose a program Combi tablet indicator Program indicator Salt level indicator Half load/Combi tablet button Super rinse indicator Program selection/Cancel (3 seconds) button Time delay indicator On / Off button Start indicator Half load indicator Rinse aid indicator Time delay function indicator End of program indicator Super rinse button Time delay button... -
Page 16: Program The Dishwasher
Program the dishwasher Power On/Off Cancel 3 sec. Select program Cancel 3 sec. Option (function key) - Select combi tablet Cancel 3 sec. Option (function key) - Select load Cancel 3 sec. Option (function key) - Super rinse Cancel 3 sec. Check salt and rinse aid Cancel... -
Page 17: Opening The Door Whilst Operating
Opening the door whilst operating If you open the door while a program is running, the dishwasher stops immediately. When you close the door, the dishwasher continues from the point of interruption. Caution: Care must be taken when opening the door, as steam and water will escape. -
Page 18: Cleaning The Filters
Cleaning the filters There are three different filters in your machine. Main filter Micro and Coarse filter Coarse filter Micro filter • Remove filter assembly by turn the micro/coarse filter anti-clockwise. • Lift the micro/coarse and main filter out. • Press the two tongues inwards and pull out the coarse filter. -
Page 19: Detergent Use
6 - Detergent use Any brand of powder, gel and combi tablets that have been Using three-in-one detergent, softening salt and rinse aid. designed for household dishwashers, may be used. • These detergents will not give you the same drying Keep detergents in a cool and dry place and out of the reach of performance that you can obtain by using separate detergent, children. -
Page 20: Before Calling For Service/Trouble Shooting
7 - Before calling for service/trouble shooting Before calling the LAMONA Service Line check the following and trouble shooting guide below. • Is the machine plugged in and switched on? • Are the filters clogged? • Is the circuit breaker switch on? •... - Page 21 TROUBLE SHOOTING GUIDE Symptoms Possible causes Solutions A water or chemical reaction with some The condition may not always be preventable. To minimise the glassware. Usually caused by some possibility of etching, use minimum amount of detergent. combination of soft or softened water Scratches on and alkaline washing solutions reacting glassware.
-
Page 22: Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product/kitchen. Call the LAMONA Service Line on 0845 00 60 006 * Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. -
Page 23: Product Fiche
9 - Product fiche PRODUCT FICHE For electrical household dishwashers, (complying Commission Delegated Regulation (EU) No 1059/2010). Brand ..................LAMONA Model ..................LAM8605 Loading Capacity (place settings) .......... 12 Energy Efficiency Class ............A+ Annual Energy Consumption (AE ) (kWh0 ...... - Page 24 Product serial number Product information correct at the time of publication in July 2015. The company has a policy of continuous product development and MAKING SPACE MORE VALUABLE reserves the right to change any products and specifications given in this manual. Subject to the Terms and Conditions of Trading, a copy of the Howdens Joinery Terms and Conditions is available Howden Joinery Ltd, First Floor, 40 Portman Square, London, W1H 6LT.
Need help?
Do you have a question about the LAM8605 and is the answer not in the manual?
Questions and answers
HOW DO YOU REMOVE THE MICRO FILTER FROM THE MAIN FILTER?
To remove the micro filter from the main filter on a Lamona LAM8605:
1. Turn the micro/coarse filter anti-clockwise to remove the filter assembly.
2. Lift out the micro/coarse and main filter together.
3. Press the two tongues inwards and pull out the coarse filter.
4. The micro filter is part of the micro/coarse assembly and separates during this process.
