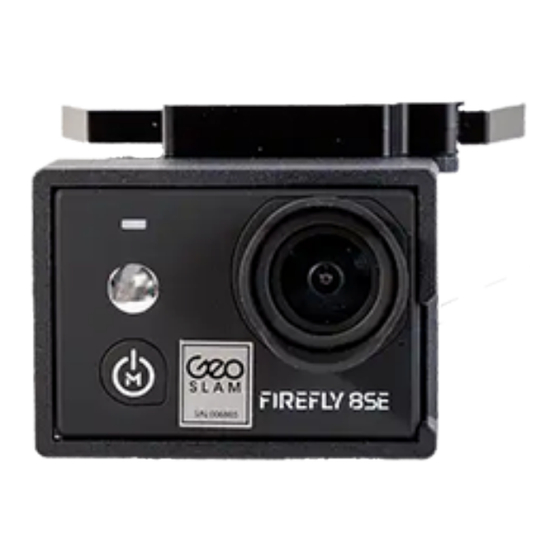

ZEB Horizon ZEB Cam Firefly 8S Reset
Overview
This article explains how to reset the ZEB Cam for ZEB Horizon - Firefly model 8S.
Note: Please check your camera model first to make sure you are following the correct procedure. If you're not sure
which ZEB Cam version you have, check out this article first:
Identifying ZEB Cam Model on ZEB
Horizon.
Procedure
1. Remove the camera from the scan head by unscrewing the 4 retaining screws using T20 Torx screwdriver.
https://knowledge.faro.com/Hardware/GeoSlam/ZEB_Accessories/ZEB_Horizon_ZEB_Cam_Firefly_8S_Reset
Updated: Wed, 11 Oct 2023 12:21:09 GMT
1
Advertisement
Related Manuals for Hawkeye Mfg Firefly 8S
Summary of Contents for Hawkeye Mfg Firefly 8S
- Page 1 ZEB Horizon ZEB Cam Firefly 8S Reset Overview This article explains how to reset the ZEB Cam for ZEB Horizon - Firefly model 8S. Note: Please check your camera model first to make sure you are following the correct procedure. If you're not sure...
- Page 2 2. Remove the camera from the frame. a. Remove the lens protection cowling from the front of the camera (simply pull forwards and off). b. Remove the fixing screw in the base of the camera using a 4mm hex key. c.
- Page 3 g. Disconnect the cable assembly from the camera mini USB B socket. 3. Remove the SD card from the camera. 4. Power on the camera by pressing the Power/Mode button on the front of the camera. 5. Ensure the camera is set to video mode. Short press the Power/Mode button on the front of the camera to cycle between Video mode and Camera mode.
- Page 4 7. Enter the Settings page by click the Shutter button on the top of the camera. 8. Toggle to the Camera Settings sub-page by clicking the Play button below the SD card slot. 9. Navigate the Camera settings options using the Forward and Backward buttons on the Side of the camera. Select the Default Setting option and click the Shutter button on the top of the camera.
-
Page 5: Video Settings
11. Go back to the Camera settings page again by pressing the Forward button on the side of the camera and then the Shutter button on the top of the camera. 12. Use the Play button below the SD card slot to toggle between Video Settings and Camera Settings. On the Video Settings sub-page make the following: Video settings Video settings... - Page 6 14. Press the Power/Mode button to exit the settings page. 15. Long press the Power/Mode button to power the camera off. 16. Install the SD card in the camera. 17. Test the camera: a. Power on the camera by pressing the Power/Mode button. b.
