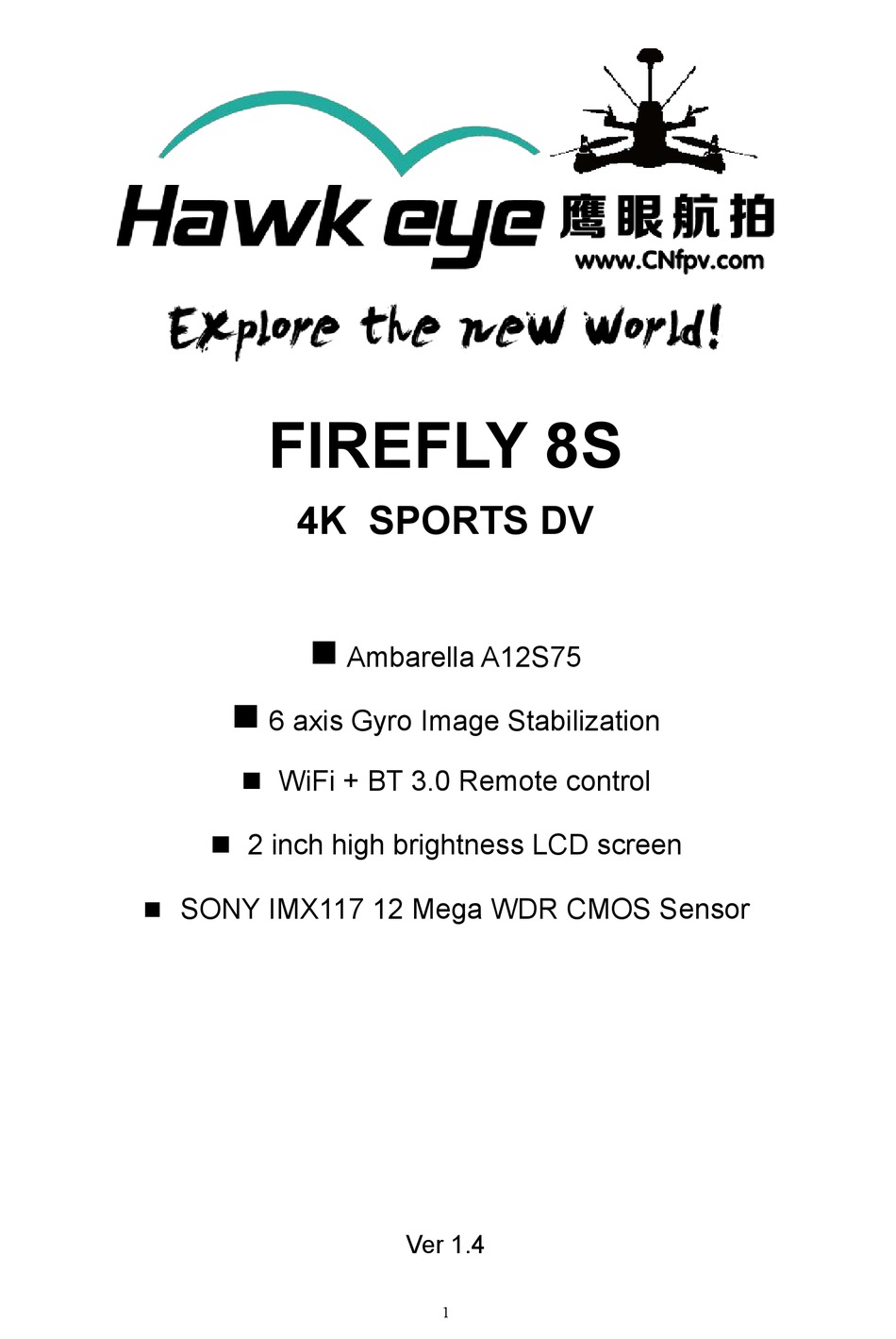

- Page 1 FIREFLY 8S 4K SPORTS DV Ambarella A12S75 6 axis Gyro Image Stabilization WiFi + BT 3.0 Remote control 2 inch high brightness LCD screen SONY IMX117 12 Mega WDR CMOS Sensor Ver 1.4...
-
Page 2: Table Of Contents
Contents Features ：........................3 ............................3 Performance and Specifications:...................4 Button Functions......................5 Video settings:........................5 Photo settings:........................7 System Setup settings:....................8 BT Pair..........................9 How to update firmware:....................10 Wi-Fi :..........................11 Battery Charging:......................11 Transferring Files:......................11 External Microphone:.....................11 Accessories :........................12 Instruction for accessories：..................12 Accessories installation instructions(Not in stander package):...... -
Page 3: Features
Features ： 10 11 1.UP button. 7.Battery door. 2.DOWN button. 8.Power button/Mode button. 3.OK button 9.Selfie Mirror. 4.Photo(Green)/Video(Blue) LED. 10.MicroSD card slot. 5.HD output 11.Playback button. 6.Mini USB. -
Page 4: Performance And Specifications
Performance and Specifications: Photo resolution 16M/14M/12M/8.3M/5M/3M AV output format PAL/NTSC USB Port HD Output Kind of MicroSD card U3(Note:Low speed sd supported card will cause unstable) Maximum size of 128G MicroSD card supported Wi-Fi +BT 3.0 remote control LCD screen size 2 inch 640*480 Camera size 59×41×21 MM... -
Page 5: Button Functions
Button Functions Name Functions Descriptions Power/Mode Turn on/off Press once, camera ON; press for 3 Button camera; select seconds, camera OFF; press to switch modes photo /video mode. OK Button start/stop recording UP Button move upwards move upwards /Shortcut key for screen save DOWN Button Move downwards Enter menu setting/move downwards... - Page 6 Playback: Select playback and press OK button to enter. Car Mode: Select Car Mode and press OK button to enter. In Car mode, Auto DVR and Loop recording will be turned ON. Slow Motion: Select Slow motion and press OK button to enter. In this mode, it will record videos in slow motion.
-
Page 7: Photo Settings
Microphone Volume:off, 50%,60%,70%,80%,90%,100%. Sharpness : Strong, Normal and Soft. AWB:Auto White Balance. Auto,Incandescent,D4000,D5000,Daylight,Couldy,D9000,D10000,Flash,Fluoresc ent,Water,Outdoor. EV Value: -2.0,-1.7,-1.3,-1.0,-0.7,-0.3,0.0,+0.3,+0.7,+1.0,+1.3,+1.7,+2.0. ISO: Auto,100,20,400,800,1600. Metering: Center,Multi,Sopt. Note: different meter ways will make the footage brightness different. Photo settings: In photo preview mode, press Down button to enter menu: Settings: Press OK button to enter setting menu. -
Page 8: System Setup Settings
Image size:16M,14M,12M,8.3M,5M,3M（1M=1Mega pixels）. Photo Quality: Super.Fine,Fine,Normal. Long exposure: 1/30 second, 1 second,2 seconds,5 seconds, 10 seconds,30seconds, 60 seconds. Note:If you use long exposure mode at day time, photo will be over exposure. Photo Stamp: Off, Date, Time, Date/Time. When turn this function ON, you could stamp the date time on videos. -
Page 9: Bt Pair
LCD Brightness: Low, Medium, High. Set LCD brightness, when set it low, the power consumption will be saved. Auto shutdown: Off, 2Min,3Min,5Min,10Min. When there’re no operations, the machine will auto shutdown. Screen Off: Off,30S,1Min,3Min,5Min. When there’re no operations,will power off the screen. -
Page 10: How To Update Firmware
Version. Check version number here and could update firmware here. How to update firmware: a.Delete all the files in MicroSD card , and then copy update file to MicroSD card( “FIREFLY_FWUPDATE.bin” , you could download it on our website www.CNfpv.com). b.Put MicroSD card into camera and power on. -
Page 11: Wi-Fi
2. Double click “My Computer” and locate “Removable Disk”. Enter “Removable Disk” and you will find all photo and video files in AMBA folder. External Microphone: Please buy our external microphone for FIREFLY 8S. When plug in the microphone, the camera will Beep and the microphone works. -
Page 12: Accessories
Accessories : Instruction for accessories：... -
Page 13: Accessories Installation Instructions(Not In Stander Package)
Accessories installation instructions(Not in stander package):... -
Page 15: Trouble Shooting
Trouble shooting: 1.First of all if the camera has any problems: set it to default settings first（refer to :System Setup settings ). 1.if the video quality is not satisfied or if the camra have any problems: try to set it to default settings first（refer to :System Setup settings ). - Page 16 you keep pressing contoler’s key (about 5 times), they will be pared automaticly. 11.WiFi playback speed is slow. When you want to use WiFi to playback videos, we suggest to turn “Dual Files” ON. When this function is turned ON, it will save a low resolution file.
