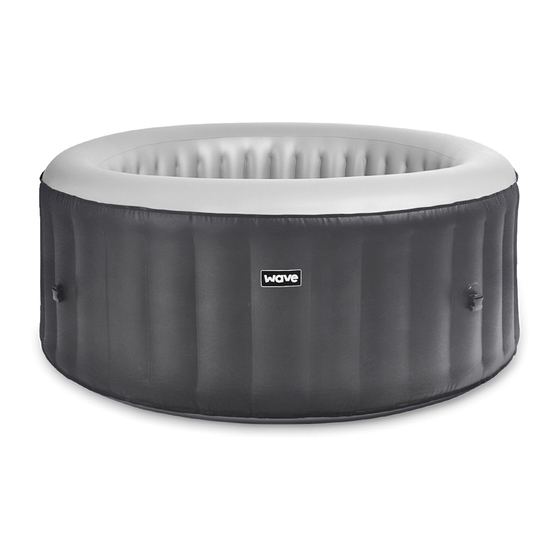

Wave Pacific Installation And User Manual

Hide thumbs Also See for Pacific:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION AND
USER MANUAL
READ CAREFULLY
KEEP IT FOR LATER REFERENCE

Advertisement

Table of Contents
loading

Related Manuals for Wave Pacific

Summary of Contents for Wave Pacific

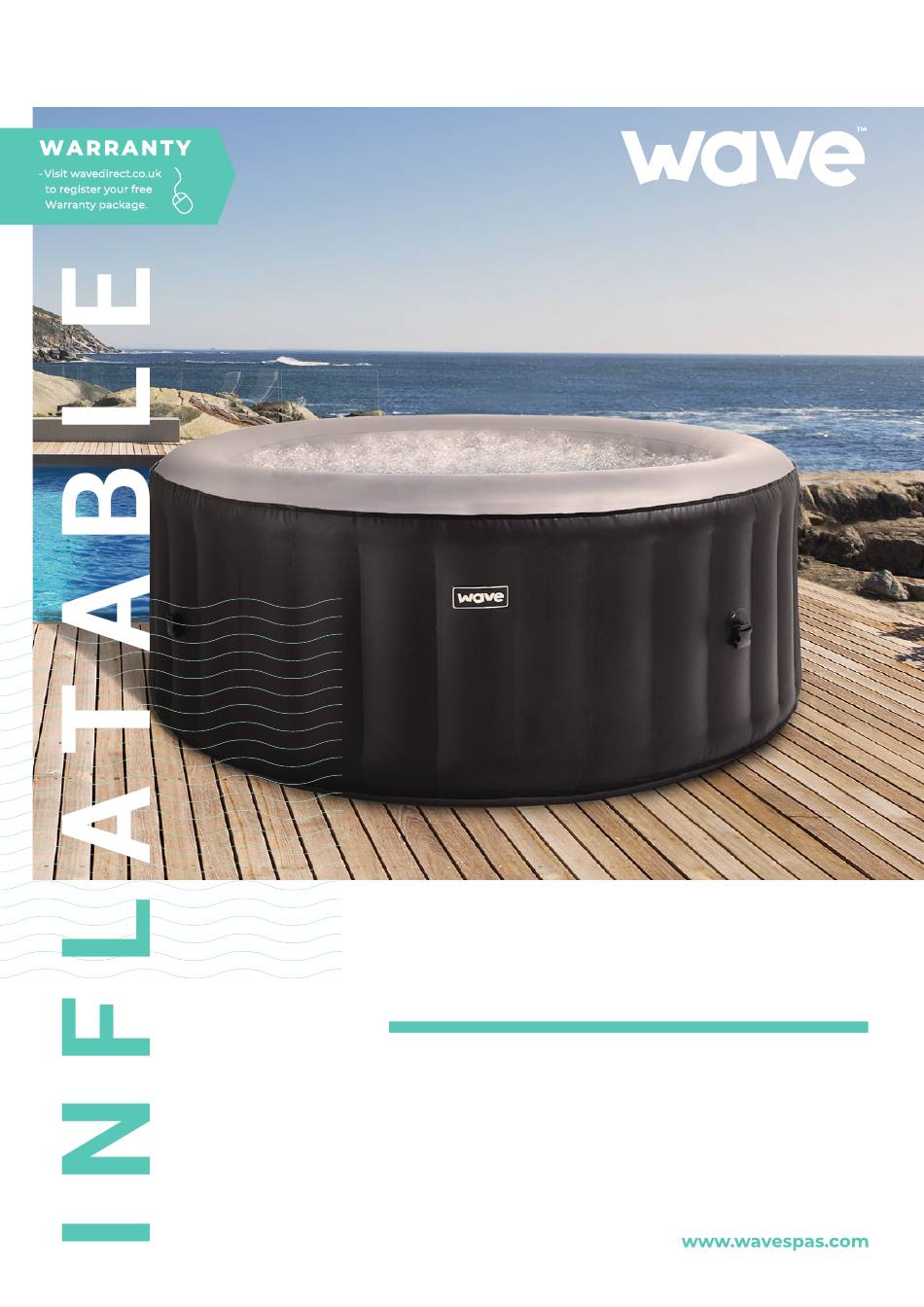

  • Page 1 INSTALLATION AND USER MANUAL READ CAREFULLY KEEP IT FOR LATER REFERENCE...

  • Page 2: Important - Please Read

    IMPORTANT - PLEASE READ Carefully read, understand, and follow all information in this user manual before installing and using the swimming pool. These warnings, instructions, and safety guidelines address some common risks of water recreation, but they cannot cover all risks and dangers in all cases. Always use caution, common sense, and good judgment when enjoying any water activity.
  • Page 3 WARNING READ ALL INSTRUCTIONS AND SAFETY WARNINGS IN THIS MANUAL Failure to follow the warnings and instructions in this manual may result in serious injury, drowning or electric shock. The safety of your children is left on your hand! The risk is the highest for children aged below 5. Be high alert all the time. Always comply with the following instructions: - The children should be under close and constant supervision;...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS For your own safety and that of your product, make sure to following the safety precautions below. Failure to follow the instruction may result in serious injury, property damage or death. Improper installation or operation will void the warranty. Read, understand and follow all instructions: DANGER - Risk of accidental drowning:...
  • Page 5 In order to avoid the possibility of hyperthermia (heat stress) occurring it is recommended that the average temperature of spa-pool water should not exceed 40°C (104°F). - Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy, pregnant or possibly pregnant women should limit spa water temperatures to 38°C (100°F).

  • Page 6: Specifications

    1. SPECIFICATIONS 1.1 Specifications Atlantic Pacific Atlantic Pacific Capacity 4 persons 4 persons 6 persons 6 persons Dimension (outer) 148cm x 65cm Ø165cm x 65cm 185cm x 65cm Ø204cm x 65cm (58.3’ x 25.6’) (Ø65’ x 25.6’) (72.8’ x 25.6’) (Ø80.3’...

  • Page 7: Package List

    Ensure to check all parts are present: 2. PACKAGE LIST 2. PACKAG E LIST 2.1 Package list 2.1. Package list Ensure to check all parts are present: Ensure to check all parts are present: liner ground cloth (Optional) Top cover Ground cloth Liner liner...

  • Page 8: Installation

    3. INSTALLATION WARNING : Spa Installed on Inadequately level surfaces are subject to leaking. Forming irregularities or collapses., which can result in property damage or serious injury for those in or around the spa area! CAUTION : Please choose your set-up area carefully as lawn and other desirable vegetation underneath the ground cloth (if applicable) wil die.
  • Page 9 The number of persons required for installation: 1 adult at least 10 minutes for site preparation and water filling The number of persons required for installation: 1 adult at least. The number of persons required for installation: 1 adult at least. 3.3.
  • Page 10 4. USAGE 4.1. Control panel LED Display WIFI Button Temperature Increase Button Centigrade Degree Fahrenheit Degree Temperature Decrease Button ON/OFF 4.2. Functions Once powered-up, the LED displays the current water temperature automatically. The temperature units selector changes the temperature units from Centigrade degrees to Fahrenheit degrees.
  • Page 11 Press the filter button to activate the water filtration. The green indicator light will turn on when the filtration system is activated. Note: - If massage function is on, the filtration can’t be activated. Press the heating button to activate water heating and filtering system at the same time.

  • Page 12: App Instruction

    APP INSTRUCTION HOW TO USE THE APP? STEP 0: Download the app in the app store. STEP 1: Keep pressing the WIFI button on the pump until the light flickers quickly. STEP 2: Open the App, click the setting. Click “SETUP A NEW SPA”, scan the QR code. STEP 3: Click the button in the blue frame, then the red frame will show up and input the WIFI’s name and code.
  • Page 13 SPA CONTROLLER Press the button to switch Press the button to turn on the Centigrade and or off the filter function. Fahrenheit degree. Press the button to turn on Press the button to turn on or off the heater function. or off the lock function.

  • Page 14: Maintenance

    5. MAINTENANCE 5.1. Water maintenance WARNING : A bad pool water quality can harm your health. Depending on the frequency and conditions of use: - The filter cartridge should be regularly cleaned (150 hours max.) - The filter cartridge should be replaced every 1 to 2 month. - The pool water should be changed every 15 to 30 days.
  • Page 15 5.3. Drainage and storage Drainage Check the stopper on the bottom of the pool and the drain cap. Unscrew the drain cap. Remove the stopper on the bottom of the pool. Completely drain all water from the spa pool. Once empty, the pool can be cleaned with soap and water. Storage Press the bubbling button to blow out the water inside the jet holes.

  • Page 16: Troubleshooting

    6. TROUBLE SHOOTING 6.1 Troubleshooting Here are some useful tips to help you to diagnose and rectify common sourced of trouble. Problem Cause Solution Check power source Power failure Control panel screen does not operate Reset the RCD pluf / Check if the wiring system is adapted to the power of the pump unit Call for service if it does not reset Set to a higher temperature...

  • Page 17: Warranty

    7. WARRANTY 7.1. Error code If the screen displays an error code “Ex”, please refer to the table below. Solutions Problems Causes Situation Code Wrong temperature control Temperature control sensor Control service center. Not heating sensor. short circuit or open circuit. Not heatign properly 1.
  • Page 18 This warranty is valid only in the country of purchase in such countries where Wave sells and services the same model with identical technical specificiations.

This manual is also suitable for:

Atlantic
