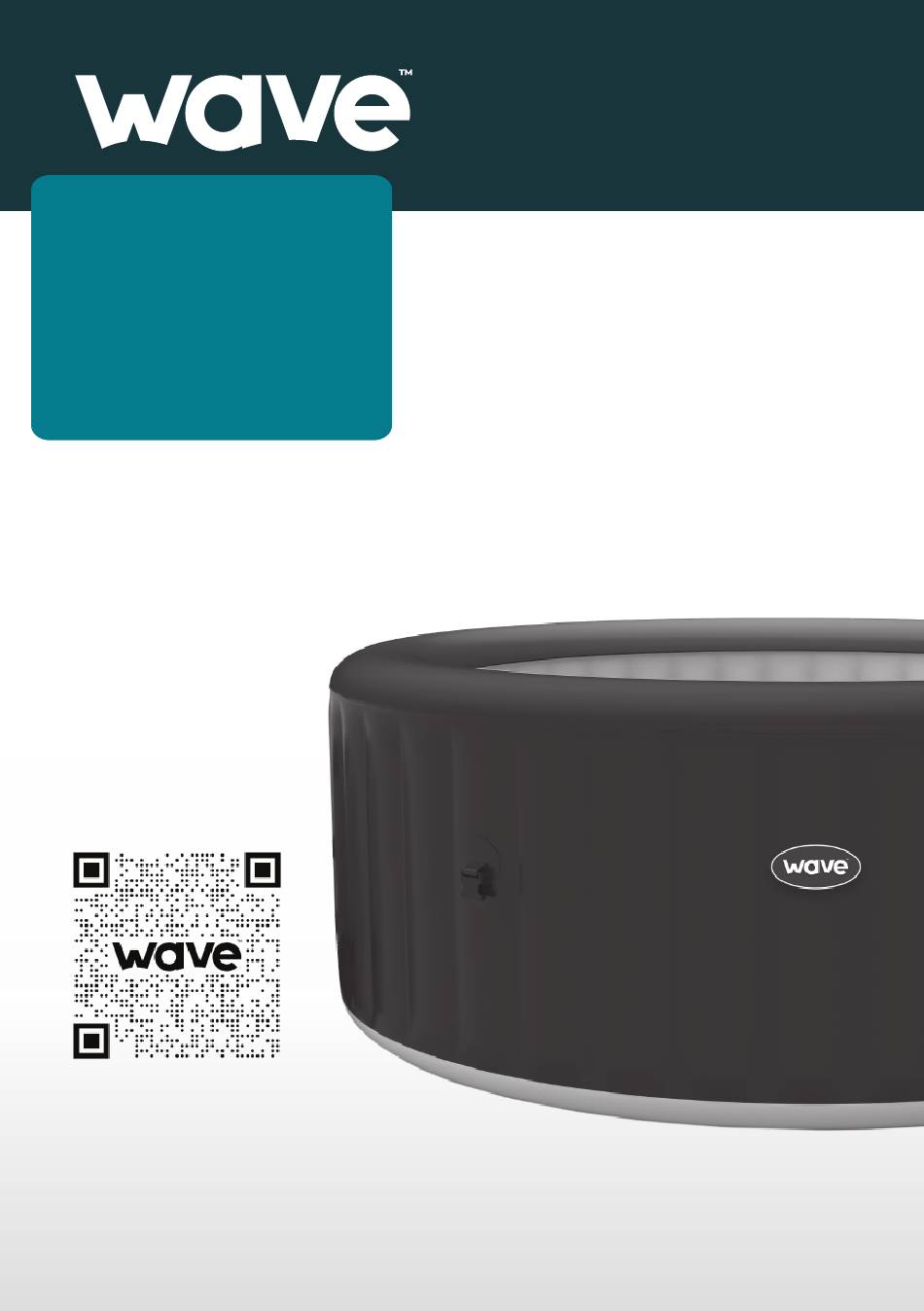

Wave ATLANTIC 4 CIRCULAR User Manual

Eco inflatable spa

Hide thumbs

Table Of Contents

Quick Links

Download this manual

Revolutionise

your relaxation

Read carefully and

keep for future

reference

Scan your QR code

to download the

Instruction Manual

At Wave, we are committed to continuously improving our products. As part of this process, product specifications and appearances

may change, which could lead to updates in the instruction manual. For the latest information, simply scan the QR code.

Eco Foam Spa

Eco Inflatable Spa

user manual (UK)

User Manual

Table of Contents

Need help?

Do you have a question about the ATLANTIC 4 CIRCULAR and is the answer not in the manual?

Questions and answers

Summary of Contents for Wave ATLANTIC 4 CIRCULAR

Page 1 Instruction Manual At Wave, we are committed to continuously improving our products. As part of this process, product specifications and appearances may change, which could lead to updates in the instruction manual. For the latest information, simply scan the QR code.
Page 2: Table Of Contents
Warranty & Returns WiFi Scan the QR code for access to our complete library of installation videos and helpful guides to assist you every step of the way as you set up your Wave Spa. Setup Video Instruction Manual Wave Spa APP...
Page 3: Safety Instructions
SAFETY INSTRUCTIONS PLEASE READ CAREFULLY! When installing and using this electrical equipment, basic safety precautions should always be followed: • The appliance should be supplied through a residual current device (RCD/GFCI type) with a rated tripping current not exceeding 30mA. •...
Page 4 (approximately 1300kgs / 2866lb for a 6 Person Square Wave Spa plus the combined weight of the occupants). If the spa is placed on a surface which does not meet these requirements, any damage caused by improper support will void the warranty.
Page 5: Parts Checklist
PARTS CHECKLIST CLEVERSPA ® Please check all parts are present in your box before first use. To order new or missing parts please visit wavespas.com HEATER (A) 2 X FILTER CARTRIDGE (B) 2 X FILTER PROTECTOR COVER (C) INFLATION HOSE (D) CLIP-ON TOP COVER (E) REPAIR PATCHES (F) DRAINAGE PLUG (G)
Page 6: Product Specification
PRODUCT SPECIFICATION CLEVERSPA ® PRODUCT ATLANTIC 4 ATLANTIC 6 AEGEON 6 SPECIFICATION CIRCULAR CIRCULAR OCTAGONAL Capacity 2-4 People 4-6 People 4-6 People Water Capacity (approx.) 800L / 211GAL 1000L / 264GAL 1100L / 290GAL Actual Water Flow (approx.) 1,325L/H / 350GAL/H 1,325L/H / 350GAL/H 1,325L/H / 350GAL/H Ф180 x 65cm /...
Page 7 HEATING GUIDE CLEVERSPA ® ® Heating the water in your spa will usually take between 1-1.5°C / 2-3°F per hour, however this depends on starting water temperature and ambient temperature. The table below gives a guide to the approximate time required to heat the spa to 40°C / 104°C in different conditions.
Page 8: Installation Guidance
Press the <<ON / RESET>> button again, if the indicator light turns red, the RCD is working properly. If your RCD / GFI plug does not behave in this way, switch off the spa and contact Wave’s Customer Services team. SPA SET UP AND INSTALLATION The floor must be able to withstand the combined weight of the Wave Spa and occupants.
Page 9 Unpack the spa in a warm environment to help keep the liner flexible. Lay out the outer liner on a flat, even surface, ensuring it is clear of any sharp objects. We recommend using a Wave Insulating foam mat for protection. In a warm environment to ensure the spa liner is flexible 1.
Page 10 10. To help the spa expand evenly, 11. Once inflated and firm, press 12. Remove the Hose (D) from the gently pull the spa walls upright the “BUBBLE” button on the inflation valve (K) and evenly spread out the base as controller to STOP the inflation.
Page 11 INSTALLING LED LIGHTS IMPORTANT! It is important to check your lights are working before setting them up. Please note: you must insert the lights through loops on the base of hot tub before filling up with water. CHECK PACK CONTENTS: 1.
Page 12 HOW TO USE YOUR LED LIGHTING REMOTE CONTROL ON / OFF BUTTON Power On / Power Off MANUAL BUTTONS Manually cycle through pre-set transitions MODE SPEED BUTTONS Adjust speed of light transitions SPEED SPEED DEMO BRIGHTNESS BUTTONS Adjust lighting brightness MODE COLOR BRIGHT...
Page 13 FILLING YOUR WAVE SPA Before ﬁlling your Wave Spa, make sure the power cable is pulled outside and away from the spa and NOT connected to the power supply. Check that the drainage plug located at the bottom of the spa is inserted correctly and is watertight to prevent leakage when filling up your spa with water.
Page 14 OPERATING YOUR WAVE SPA ® WARNING! Do not operate the pump and heater system whilst the spa is empty, as this may damage the system. FILTRATION SYSTEM To use the ﬁltration system, press the ‘FILTER’ button, a light will appear and the pump will start to work.
Page 15 ® WARNING! Do not operate the pump and heater system whilst the spa is empty, as this may damage the system. BUBBLE / INFLATE Press the ‘BUBBLE/INFLATE’ button and the bubble jets will start working - a light will also appear.
Page 16: Water Maintenance
IMPORTANCE OF WATER TREATMENT It is of great importance that you regularly monitor and appropriately treat the water in your Wave Spa to maximise your enjoyment from the hot tub and to extend its life. Importantly, you should know that hot tubs can harbour bacteria if not treated correctly and the most common form can lead to Legionnaires‘...
Page 17: Cleaning & Storing
Make sure all the water is completely drained from the Wave Spa and pump system. This is vital in extending the life of your Wave Spa. We recommend the use of a wet/dry vacuum to blow out or suck up water from the Wave Spa pipes and pump lines.
Page 18: Troubleshooting
- Improper water maintenance - Refer to the chemical manufacturer’s instructions Display temperature - Residual water in the Wave - Unplug from mains and wait. The temperature is higher than 40°C / Spa will continue to be heated will start to reduce and return to normal 104°F, after...
Page 19: Replace Your Heater
REPLACING YOUR HEATER Disconnecting your Wave Eco-Heater. There are up to five key places where your heater connects to the liner of the spa: Outlet Connector (A) - If you have a Dual Inlet Spa there is an extra filter Inlet.
Page 20 REPLACING YOUR HEATER Removing your Eco-Heater: 1. Use the provided wrench to 2. Unscrew and disconnect the 3. Disconnect the Dual Inlet unscrew the filter connectors inside wired controller Connector pipe from the side of the inner liner the heater using a screw driver 4.
Page 21 REPLACING YOUR HEATER Replace heater with a new unit 1. Carefully place the new heater 2. Reconnect the Dual Inlet 3. Reconnect the Air Bubble Blower inside the inflatable liner Connector pipe from the side of Connector by pushing the soft pipe the heater using a screw driver back into place 4.
Page 22: Control Panel Error Codes
Use a net to remove debris from the water. Water temperature sensor issue Please contact Wave customer services. Freeze Protect mode has been activated. To exit Freeze Protect (FP) mode, press the HEATER button followed by the UP button, until reaching 20°C / 68°F.
Page 23: Warranty And Returns
During the warranty period return and replacement costs will be the responsibility of Wave subject to warranty claim. Please note the return must be organized by Wave, Wave will not cover the costs of a customer arranged return. Should you run into an issue please contact Wave Customer Services to initiate the return.
Page 24: Wave Spa App
FAIR POOR DISTANCE FROM HOUSE BEFORE CONNECTING YOUR SPA WITH WAVE SPA APP – FIND A STRONG WIFI SIGNAL Please make sure your WiFi signal is strong and fully covers your garden. Please contact your internet provider for further assistance.
