Summary of Contents for Lupine BLIKA R

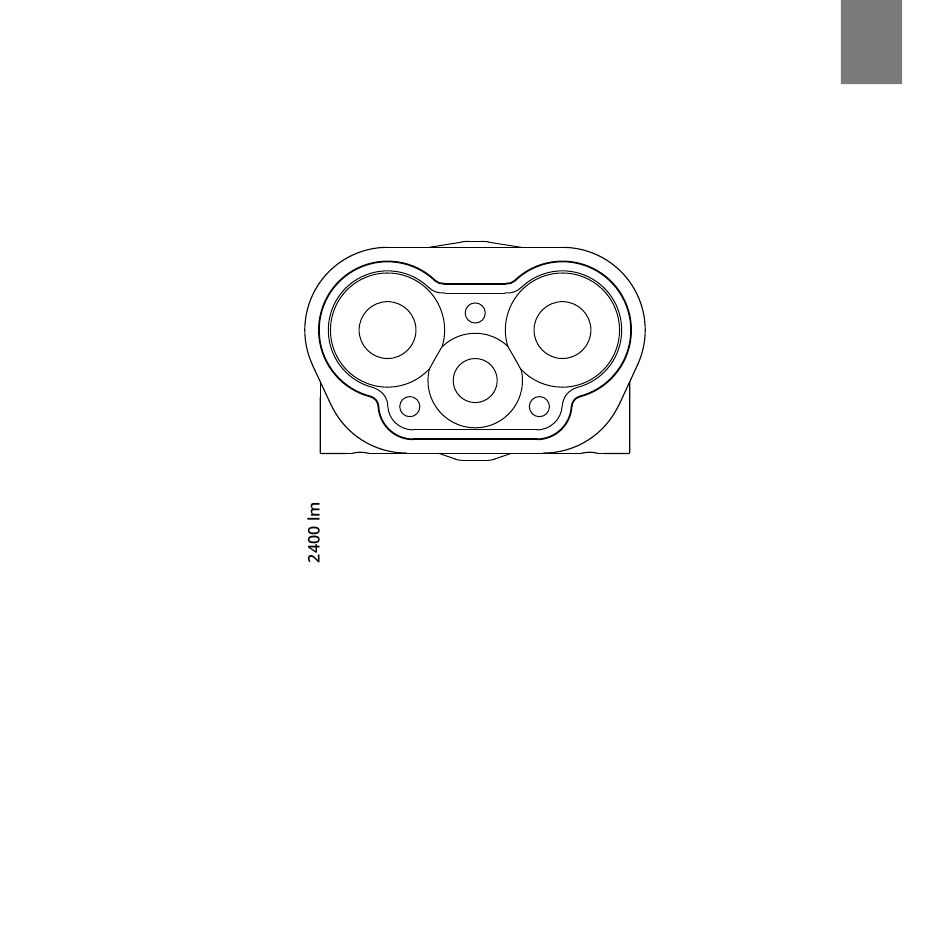

  • Page 1 FR/ EN BLIKA R Blika R...
  • Page 2 Elle ne peut pas être rallumée via l’émetteur radio Bluetooth. Dégagement de chaleur : Le boîtier de la lampe Blika R peut devenir chaud, toujours se tenir à une distance raisonnable des matériaux inflammables. Le mode statique (p. ex. sans refroidissement par déplacement d’air) peut être exécuté...
  • Page 3: Fonctionnement De La Lampe

    Fonctionnement de la lampe Signification de la couleur de la LED Le bouton sur la tête de lampe et la télécommande radio Bluetooth sont équipés d’une LED mul- ticolore donnant des informations concernant le niveau de luminosité actuel ainsi que la capacité Initialisation et indicateur de tension : restante de la batterie.
  • Page 4: Programmation Via L'application

    L’application permet un réglage libre des niveaux d’éclairage de 0,4 W au niveau d’éclairage - pour IOS et Android maximal respectif. L’application « Lupine Light Control 2.0 » vous offre un grand nombre de possibilités de réglage. Puissance Autonomie de Blika Autonomie de Blika Vous créez des profils individuels pour vos activités et les réutilisez lorsque vous en avez de nou-...
  • Page 5 Niveaux d’éclairage et programmation Maintenir le bouton supérieur Réglages disponibles Réglages par défaut appuyé jusqu’à ce qu’il... Programmation sans l’aide de l’application : s’allume 1x en rouge Relâcher le bouton, SOS est allumé Pour cela, il suffit de maintenir le bouton enfoncé jusqu’à ce que le bouton de la tête de lampe s’allume s’allume 1x en bleu 2 niveaux d’abord en bleu, en rouge ou en vert conformément au tableau à...
  • Page 6 Émetteur radio Bluetooth L’émetteur radio Bluetooth est livré avec le support de guidon (lampes de casque) ou le support de poi- Bouton bleu : Allumer et éteindre la lampe. Selon le concept d’utilisation : Les mêmes gnet (lampes frontales) Peppi V5 adapté. En pédalant, l’emplacement de fixation idéal de l’émetteur radio fonctions que celles du bouton supérieur de la tête de lampe ou l’augmentation de la se trouve à...
  • Page 7 Montage de la lampe frontale Blika R Montage de la lampe de casque Blika R La fixation de cette lampe ne nécessite aucun outil. La lampe de casque peut être montée sur tous les casques avec évents. Autre fixation : voir la page 16.
  • Page 8 LED allumée en continu correspond à un palier de 20 %, alors qu’une LED clignotante correspond à un palier de 10 %. Les batteries Lupine HardCase sont équi- pées d’une languette au verso et fixées à l’aide d’une bande velcro.
  • Page 9 USB Charger s’enfiche. Le dispositif USB Charger permet de recharger très rapidement les batteries Lupine à l’aide FrontClick avec support 3M : d’un chargeur de téléphone, d’un panneau solaire ou via le port USB d’un ordinateur. (Article n° 1444.)
  • Page 10: Résolution Des Problèmes

    à de prise. Attention ! La tête de lampe Blika R ne doit pas être ouverte, car elle ne serait plus étanche et cela lors du branchement. la lampe annulerait tout droit de garantie. Avant de corriger une erreur soi-même, contacter notre service après- vente.
  • Page 11: Données Techniques

    2 hours. You now can NOT turn on the light via the Bluetooth remote. Either press the lampheads switch, or reconnect the battery to start the Bluetooth module or light. Heat generation: The housing of Blika R may heat up; so make sure that you always keep the light at a LED : Plage d’utilisation :...
  • Page 12: Operation

    Operation Meaning of LED colors The switch on the lamphead as well as the Bluetooth remote are equipped with a RGB-LED to show informations about the dim level and the remaining battery capacity. Initialization & voltage display: After connecting the lamp to the battery, the software runs a selftest. The lamp itself as well as the red and blue LEDs in the switch light up once.
  • Page 13 - available for IOS and Android With the new "Lupine Light Control 2.0" app you get many individual setups. Create custom profiles for your activities, and simply use them when you need them again. The App allows nearly free pro-...
  • Page 14 Programming Press the top button Available adjustments Default setting until it lights Programming without help of the App: 1x red Release the button, SOS activated As you can see on the right side, the light programs are very easy to select by simply keeping the button 1x blue 2 - step pressed until the button lights up blue, red and green.
  • Page 15: Bluetooth Remote

    Bluetooth Remote The Bluetooth Remote comes together with the Peppi V5 barmount (helmet & bikelights) or a bracelet Blue button: Turning the lamp on and off. Depending on the control concept : Same (Headlamps). On the bike, the best way to mount the remote is directly next to your grips so you have functions as the top button of the lamphead or increase the output.
  • Page 16: Helmet Mount

    Insert the lamphead into the FrontClick mount of the headband. (Video on our YouTube channel "LupineLights") First attach the thin velcro with the Lupine logo to one site of the helmet mount. The FastClick battery have to be attached to the FastClick mount on the headband with the cable looking downwards.
  • Page 17: Mounting Batteries

    Mounting Batteries Operation SmartCore battery Capacity Indicator Battery mounting: Your battery is supplied with a Audible: = 100 % velcro strap, coated with an anti- To check the capacity, simply press the touch-pad once. At first = 80% slip material to ensure a secure an audible signal will sound, which is especially useful while using = 60% mount.
  • Page 18 USB Charger With the USB Charger, you can charge your Lupine batteries easily via a mobile phone power supply, FrontClick with 3M mount: solar panel, or the USB port of your PC. (Art. No. 1444)
  • Page 19: Troubleshooting

     Faulty LED unit  LED unit needs replacement. the power LEDs do not come  Get in touch with Lupine Battery: on, but the PCS LEDs flash. If you intend not to use the lamp for a longer period of time, fully charge and store it at a cold and dry place.
  • Page 20: Technical Data

    Changes or modifications not expressly approved by the party responsible for compliance could void Hereby, Lupine lighting systems GmbH declares that the radio equipment type Bluetooth remote the user's authority to operate the equipment. control V2 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of confor- mity is available at the following internet address: https://www.lupine.de/documents/ce...
  • Page 21 Lupine lighting systems GmbH Im Zwiesel 9, 92318 Neumarkt, Germany Phone: +49 (0) 91 81 - 50 94 90 Fax: +49 (0) 91 81 - 50 94 915 E-Mail: info@lupine.de www.lupine.de...
