1740A Series, 1750A Series, & 1760 Series Service Manual

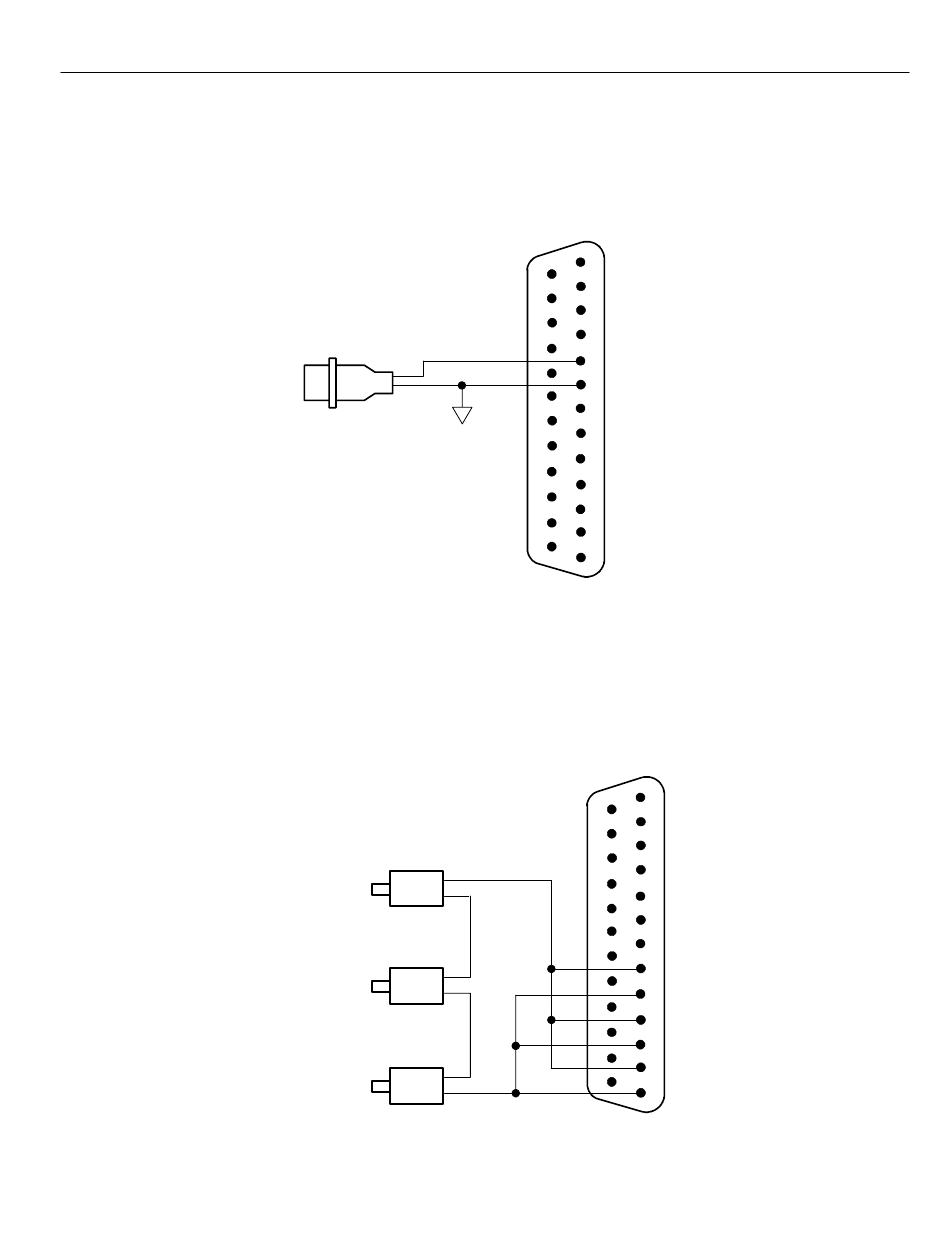

17. Remote Sync Cable Adapter
Female BNC
Signal
Connect to ground

Figure 4- 2: Remote Sync Cable Adapter

18. Audio and Timecode Cable Adapter
Banana
connectors
+Signal
Common
- - Signal

Figure 4- 3: Audio and Timecode Cable Adapter

25-Pin male connector
to remote connector
14
5
6
25
13
25-Pin male connector to
remote connector
1
14
8
9
10
11
12
25
13
Performance Verification
4- 5
