Owner's Manual
Original Instructions

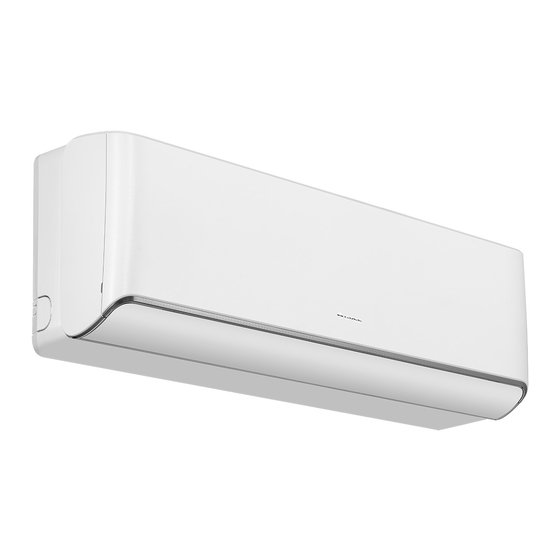

Split Air Conditioner
CONTENTS
......................................................................................
...........................................................................
..................................................................................................
.......................................................................................
Thank you for choosing our product.
Please read this Owner's Manual carefully before operation and
retain it for future reference.
If you have lost the Owner's Manual, please contact the local agent
or visit www.gree.com or send an email to global@cn.gree.com for
the electronic version.
NOTE:
Actual product may be different from graphics,
please refer to actual products.
......................................................................
..............................................................................
.............................................................................. .
.............................................................
..................................................................
.......................................................................................
.............
............................................
01
05
06
08
11
12
13
14
21
22
24
Advertisement
Table of Contents
Related Manuals for Gree GWH09AVCXB-K6DNA1B/I
Summary of Contents for Gree GWH09AVCXB-K6DNA1B/I
-
Page 1: Table Of Contents
