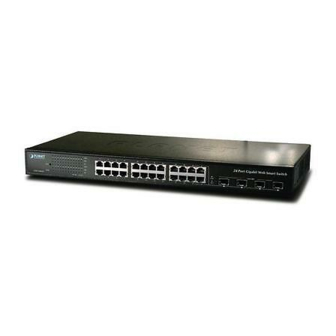

Planet GSW-1602SF User Manual
10/100/1000mbps 16/24-port web smart gigabit ethernet switch
Hide thumbs
Also See for GSW-1602SF:
- User manual (139 pages) ,
- Quick installation manual (7 pages) ,
- User manual (83 pages)
Related Manuals for Planet GSW-1602SF
Summary of Contents for Planet GSW-1602SF
- Page 1 User's Manual GSW-1602SF GSW-2404SF 10/100/1000Mbps 16/24-Port Web Smart Gigabit Ethernet Switch...
- Page 2 PLANET has made every effort to ensure that this User's Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.
-
Page 3: Table Of Contents
User’s Manual of GSW-1602SF / GSW-2404SF TABLE OF CONTENTS 1. INTRODUCTION ................1 1.1 P ..........................1 ACKAGE ONTENTS 1.2 P ..........................1 RODUCT ESCRIPTION 1.3 H ........................2 OW TO ANUAL 1.4 P ..........................3 RODUCT EATURES 1.5 PRODUCT SPECIFICATION ........................5 2. - Page 4 User’s Manual of GSW-1602SF / GSW-2404SF 4.2.5 Configuration Download ............................ 30 4.2.6 Configuration Upload ............................31 4.2.7 Factory Default ..............................35 4.2.8 Reboot ................................36 4.3 SNMP ..............................38 4.3.1 Theory ................................38 4.3.2 System Configuration ............................39 4.3.3 System Information ............................40 4.4 P...
- Page 5 User’s Manual of GSW-1602SF / GSW-2404SF 4.8 M ............................... 88 ULTICAST 4.8.1 IGMP Snooping Configuration ........................... 92 4.8.2 IGMP Snooping Status ............................94 4.8.3 Multicast Address Table ............................ 95 4.9 Q ..........................97 UALITY OF ERVICE 4.9.1 Understand QOS ............................... 97 4.9.2 QoS Configuration .............................
- Page 6 User’s Manual of GSW-1602SF / GSW-2404SF 5.3 F & F ........................126 ORWARDING ILTERING 5.4 S ........................... 126 TORE ORWARD 5.5 A ..........................127 EGOTIATION 5.6 IGMP S ............................ 127 NOOPING 6. TROUBLESHOOTING ..............129 APPENDIX A ..................130 A.1 S ‘...
-
Page 7: Introduction
In the following section, the term “Web Smart Gigabit Switch” means the two Switch devices, ie. GSW-1602SF and GSW -2404SF;... -
Page 8: How To Use This Manual
The GSW-1602SF / GSW-2404SF also supports store-and-forward forwarding scheme to ensure low latency and high data integrity, eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm, GSW-1602SF / GSW -2404SF could recognize up to 8K different MAC address and enables filtering and forwarding at full wire speed. -
Page 9: Product Features
User’s Manual of GSW-1602SF / GSW-2404SF 1.4 Product Features Physical Port GSW-1602SF 16-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 2 mini-GBIC/SFP slots, shared with Port-15 and Port-16 GSW-2404SF 24-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 4 mini-GBIC/SFP slots, shared with Port-21 to Port-24 General Features Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard... - Page 10 User’s Manual of GSW-1602SF / GSW-2404SF Link Layer Discovery Protocol (LLDP) for discover basic information about neighboring devices on the local broadcast domain Green Networking for energy saving Quality of Service 4 priority queues on all switch ports 8 mapping ID to 4 priority queues Traffic class assignment based on IEEE 802.1p tag, or DSCP field...
-
Page 11: Product Specification
User’s Manual of GSW-1602SF / GSW-2404SF 1.5 PRODUCT SPECIFICATION GSW-1602SF GSW-2404SF Product Hardware Specification 10/100/1000Mbps Copper Ports 16-Port Auto-MDI/MDI-X 24-Port Auto-MDI/MDI-X SFP/mini-GBIC Slots 2, shared with Port-15 and Port-16 4, shared with Port-21~Port-24 Switch Architecture Store-and-Forward Switch Throughput@64Bytes 23.8Mpps 35.7Mpps... - Page 12 User’s Manual of GSW-1602SF / GSW-2404SF IGMP (v1/v2) Snooping, up to 256 multicast Groups IGMP Snooping IGMP Querier Traffic classification based, Strict priority and WRR 4-level priority for switching - 802.1p priority - DSCP field in IP Packet Broadcast storm control...
-
Page 13: Installation
User’s Manual of GSW-1602SF / GSW-2404SF 2. INSTALLATION This section describes the functionalities of Web Smart Gigabit Switch components and guides how to install it on the desktop or shelf. Basic knowledge of networking is assumed. Please read this chapter completely before continuing. -
Page 14: Led Indicators
User’s Manual of GSW-1602SF / GSW-2404SF Reset the Web Smart Switch to Factory Default configuration. The Web Smart Switch will then reboot and load the default settings as below: More than 5 seconds Default Password: admin Default IP address: 192.168.0.100 Subnet mask: 255.255.255.0... -
Page 15: Switch Rear Panel
User’s Manual of GSW-1602SF / GSW-2404SF To press 5 seconds and release the RESET button. The GSW-1602SF / GSW -2404SF will back to the factory default mode (Except IP address). Be sure that you backup the current configuration of GSW-1602SF/GSW -2404SF; else the entire configuration will be erased when pressing the “RESET”... -
Page 16: Install The Gsw-1602Sf/Gsw-2404Sf
This section describes how to install your GSW-1602SF/GSW-2404SF Web Smart Gigabit Switch and make connections to the Switch. Please read the following topics and perform the procedures in the order being presented. PLANET GSW-1602SF/GSW -2404SF Web Smart Gigabit Switch do not need software configuration. To install your GSW-1602SF/GSW -2404SF on a desktop or shelf, simply complete the following steps. - Page 17 User’s Manual of GSW-1602SF / GSW-2404SF Step2: Attach a rack-mount bracket to each side of the Web Smart Gigabit Switch with supplied screws attached to the package. Figure 2-6 shows how to attach brackets to one side of the Web Smart Gigabit Switch.
-
Page 18: Installing The Sfp Transceiver
MGB-SX SFP (1000BASE-SX SFP transceiver ) MGB-LX SFP (1000BASE-LX SFP transceiver ) It recommends using PLANET SFPs on the Web Smart Gigabit Switch. If you insert a SFP transceiver that is not supported, the Web Smart Gigabit Switch will not recognize it. - Page 19 User’s Manual of GSW-1602SF / GSW-2404SF Connect the fiber cable Attach the duplex LC connector on the network cable into the SFP transceiver. Connect the other end of the cable to a device – switches with SFP installed, fiber NIC on a workstation or a Media Converter..
-
Page 20: Switch Management
- Logging on to the GSW-1602SF/GSW -2404SF 3.1 Overview This chapter gives an overview of switch management. The GSW-1602SF/GSW -2404SF provides a simply Web browser interface. Using this interface, you can perform various switch configuration and management activities, including: Main Function...
