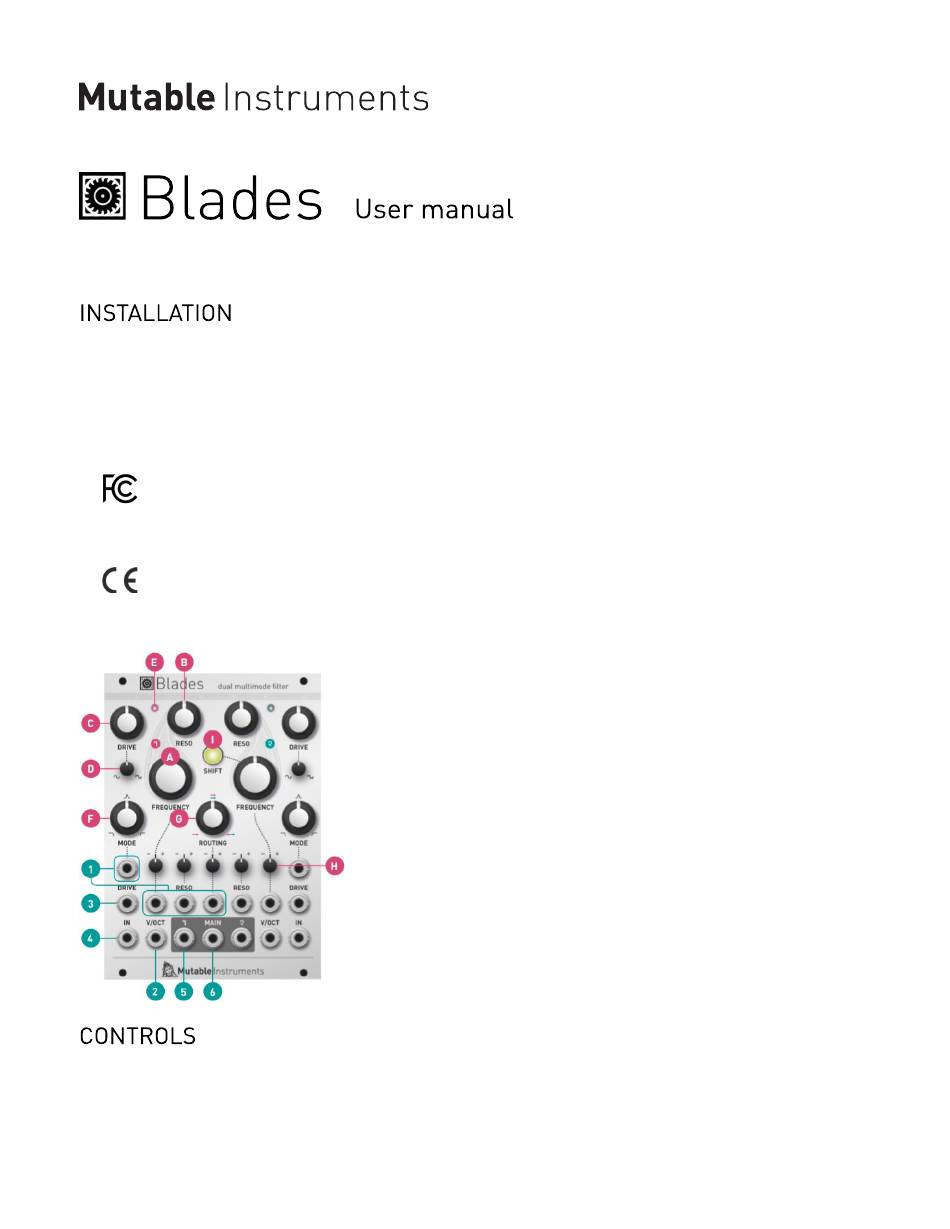

Mutable Instruments Blades User Manual

Mutable Instruments | Blades

Blades requires a -12V/+12V power supply (2x5 pin connector). The red stripe of the ribbon cable (-12V

side) must be oriented on the same side as the "Red stripe" marking on the board. The module draws

150mA from the -12V rail and 140mA from the +12V rail.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation.

This device meets the requirements of the following standards: EN55032, EN55103-2,

EN61000-3-2, EN61000-3-3, EN62311.

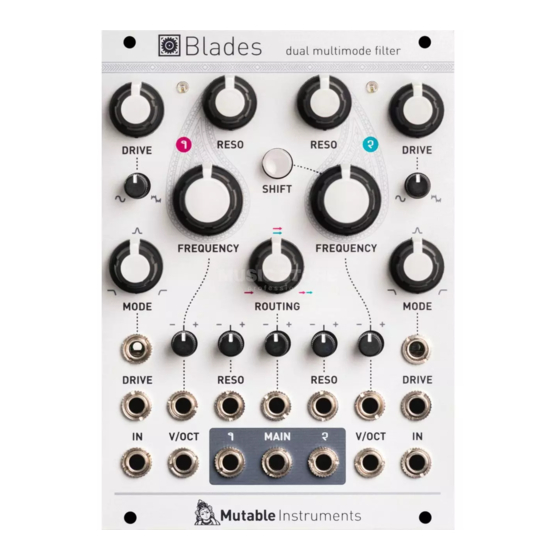

The same set of controls is provided for both filters.

A. Cutoff frequency, from 8 Hz to 18 kHz.

B. Resonance. Goes up to self-oscillation.

1 of 4

https://mutable-instruments.net/modules/blades/manual/

7/8/2022, 3:36 PM

Table of Contents

Need help?

Do you have a question about the Blades and is the answer not in the manual?

Page 1 Mutable Instruments | Blades https://mutable-instruments.net/modules/blades/manual/ Blades requires a -12V/+12V power supply (2x5 pin connector). The red stripe of the ribbon cable (-12V side) must be oriented on the same side as the “Red stripe” marking on the board. The module draws 150mA from the -12V rail and 140mA from the +12V rail.
Page 2 Mutable Instruments | Blades https://mutable-instruments.net/modules/blades/manual/ C. Amount of gain and distortion or wavefolding applied to the input signal. A gain of 0dB is achieved with the knob at 11 o’clock. This knob also acts as an offset control for the DRIVE CV input (3).
Page 3 Blades into a useful tool for EQ-ing and spectrally coloring signals. Since Blades’ signal path is DC-coupled you can also use it to process CV signals: use FREQUENCY for portamento, RESO to add overshoot and wiggles. DRIVE lets you control the signal amplitude or even its shape.
Page 4 (support@mutable-instruments.net) for a return authorization before sending the module. The cost of sending a module back for servicing is paid for by the customer. Mutable Instruments encourages modding and hacking, but we will not service modified units or provide any assistance in the realization of mods.
