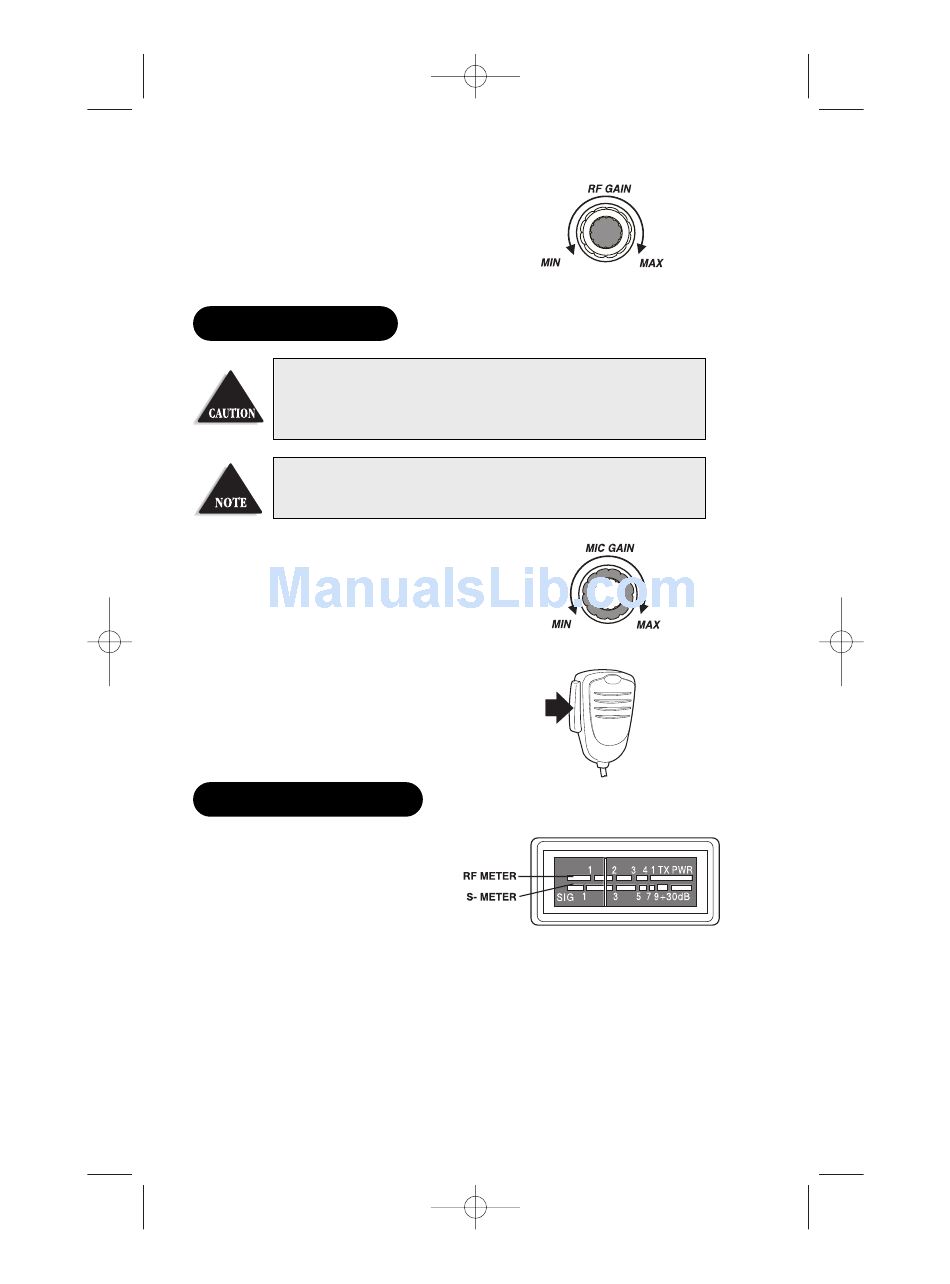

5. Adjust RF GAIN knob (small)
to optimize reception in strong
signal areas.
T T o o T T r r a a n n s s m m i i t t
Perform a voltage Standing Wave Ratio ( SWR )
measurement prior to using the transmitter. A SWR
ratio in excess of 2:1 may damage the transmitter
Be sure to read and understand Part 95, FCC Rules
and Regulations before operating your transmitter.
1. Select a channel.
2. Adjust MIC GAIN .
3. When the channel is clear, press
the microphone PTT switch
and speak.
F F u u n n c c t t i i o o n n M M e e t t e e r r
RF Meter : Measures RF Output
Power for transmitter. Press
microphone PTT switch to read
transmitting power.
S-Meter : Measures incoming signal
strength. The meter swings to indicate
signal strength. i.e. S 3, S 5, S 7 . . .
