C C o o n n t t r r o o l l s s a a n n d d F F u u n n c c t t i i o o n n s s

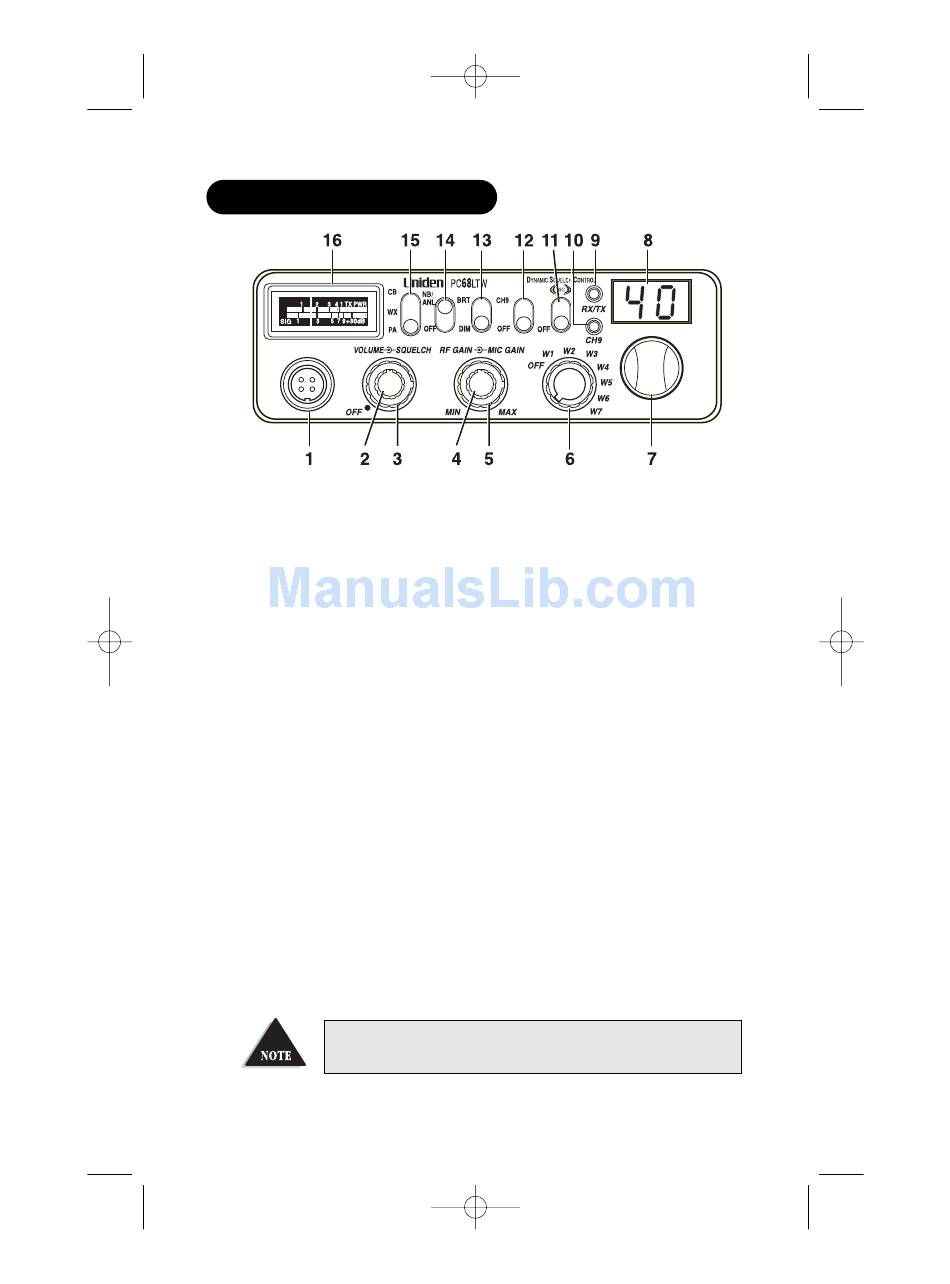

FRONT VIEW PC68LTW BACKLIGHTED PANEL
1. Microphone Jack
2. ON/OFF - VOLUME : Turns radio on or off; adjusts speaker volume.
3. SQUELCH : Reduces background noise when there is no
incoming signal.
4. RF GAIN : Improves reception in strong signal areas.
5. MIC GAIN : Adjusts microphone sensitivity.
6. Weather Channel Knob: Selects weather channel.
7. Channel Knob: Selects channel.
8. Channel Display : Displays current channel selection.
9. RX/TX Indicator: Red-transmitting; green-receiving.
10. CH 9 Indicator: Red-Channel 9 switch is on.
11. Dynamic Squelch Control (DSC) : Automatically sets Squelch to
optimal level for stronger signals.
12. CH9/OFF : Turns Channel 9 on or off.
13. BRT/DIM : Adjusts the brightness of LED Channel Display and
Indicator and RF Signal Meter.
14. NB/ANL : Reduces external noise and interference from vehicle
ignition systems.
15. CB/WX/PA Switch: Selects PA (Public Address);
WX (Weather Radio) or CB .
16. Function Meter : Measures RF and S signal strength.
3:09 PM Page 2
Do not use PA function unless an external speaker
is connected.
