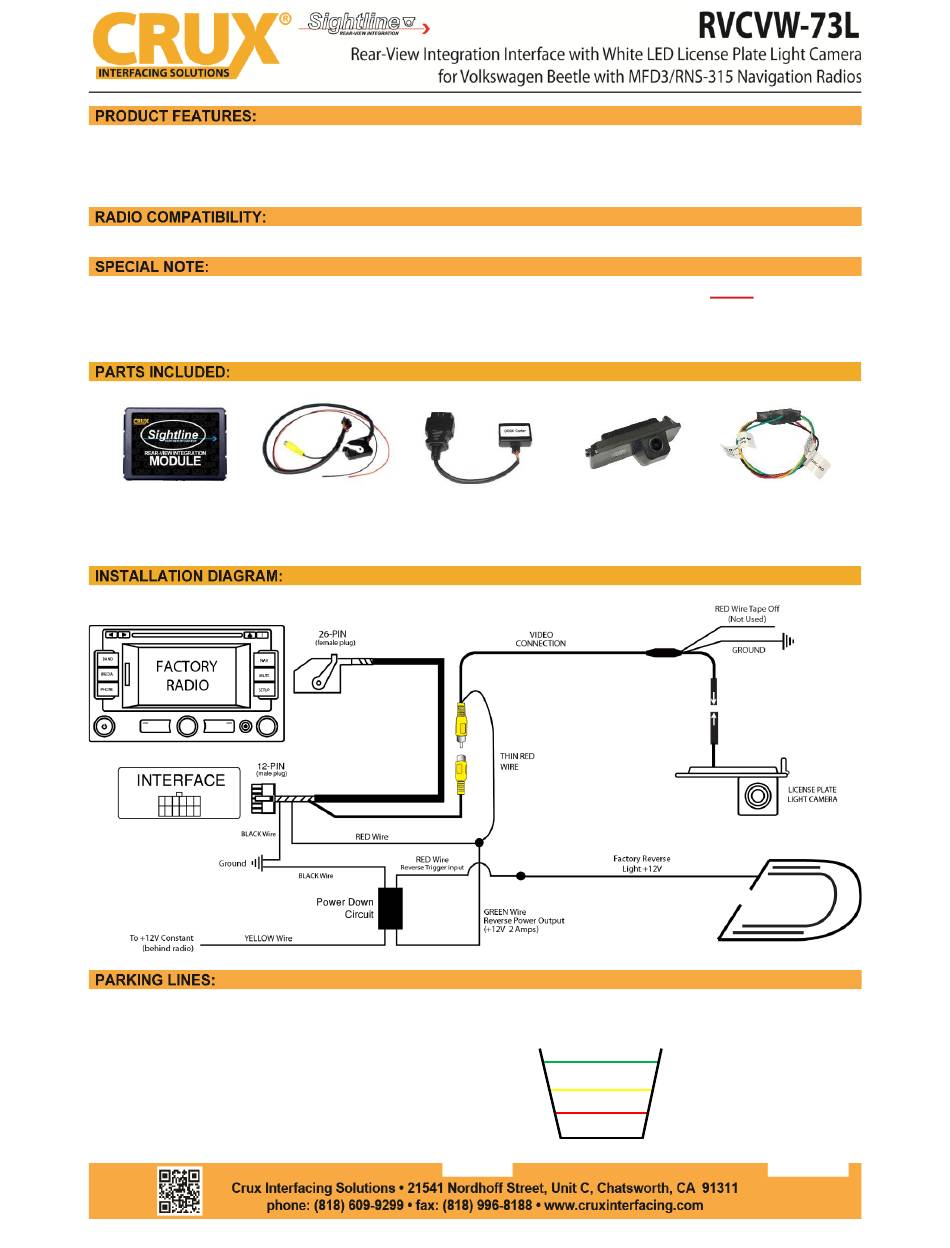

Crux RVCVW-73L Quick Start Manual

- Codes the factory radio to turn on the reverse camera function.

- OEM type license plate light camera with white LED included.

- Includes camera power down circuit to extend the life of the camera.

- MFD3 or RNS-315 Navigation Radios.

In the event this unit is to be returned for any reason, the customer must "decode"

the radio before doing so to receive a replacement or refund. See instructions on

page 2 on how to decode the radio.

RVCVW-73L

MODULE

The parking lines are there to assist you while reversing. To activate the parking lines simply

cut/disconnect the WHITE loop wire located near the 4-pin camera connector

What the Lines mean:

Green Line: CLEAR

Yellow Line: GETTING CLOSE

Red Line:

WARNING - VERY CLOSE

OBD II ENCODER

HARNESS

1 / 2

CVW-07L

POWER DOWN

CAMERA

CIRCUIT

GREEN

YELLOW

RED

rev.020521

Table of Contents

Need help?

Do you have a question about the RVCVW-73L and is the answer not in the manual?

Page 1 In the event this unit is to be returned for any reason, the customer must “decode” the radio before doing so to receive a replacement or refund. See instructions on page 2 on how to decode the radio. RVCVW-73L RVCVW-73L OBD II ENCODER...
Page 2 10. Keep the OBD II encoder stored in the vehicle in case the radio would need to be recoded. To decode the radio, repeat steps above. The RVCVW-73L module has 2 LEDs on the side of the Molex connector that confirms its functionality as follows:...
