ACPGM-80NW
Sightline
R
Multi View Integration
Smart-Play Integration with Multi Camera Inputs
INTERFACING SOLUTIONS
for Select 2013-2018 GM Vehicles with CUE & MyLink Systems
PRODUCT FEATURES:
-
- Integrates wired/ wireless Android Auto and CarPlay.

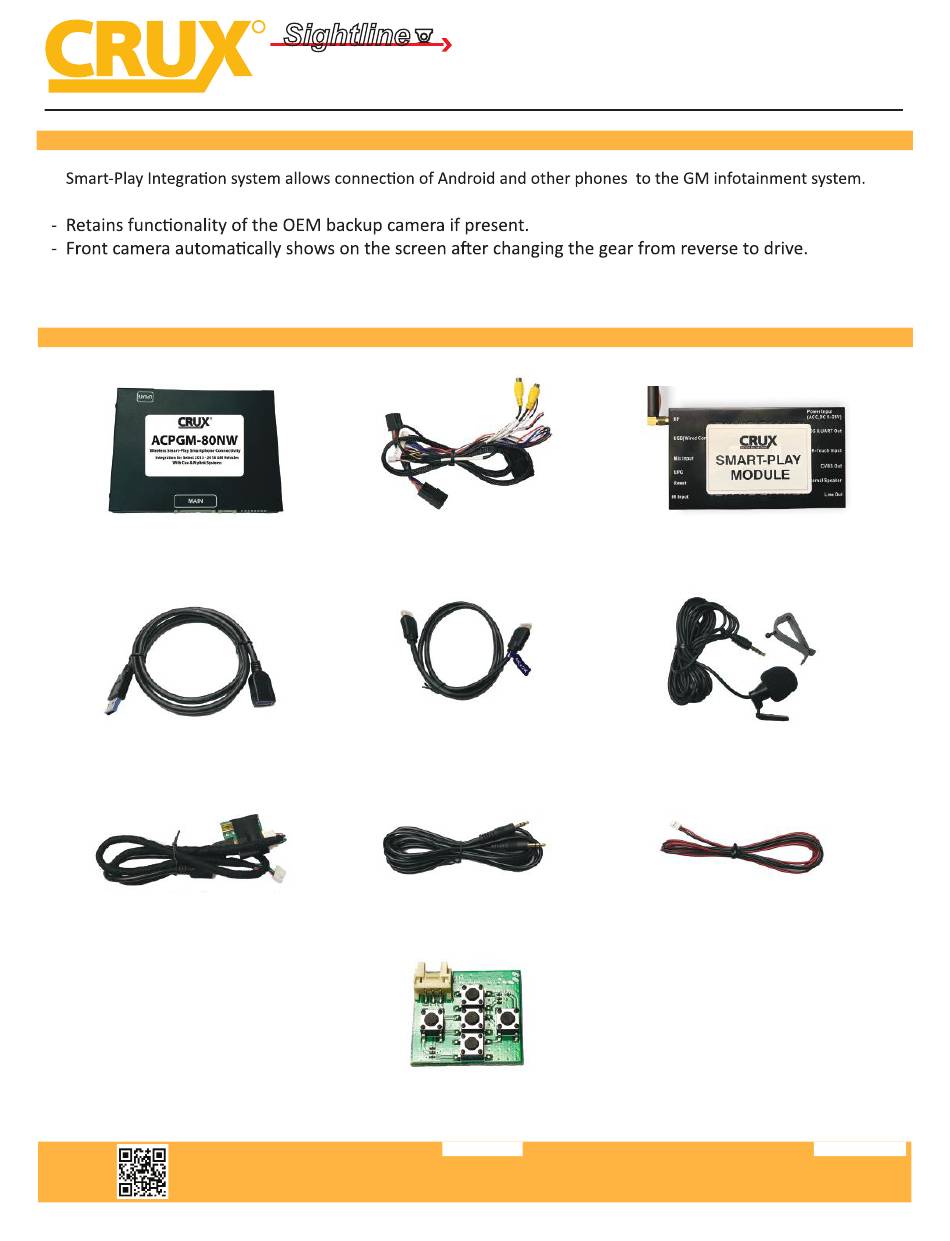

PARTS INCLUDED:
ACPGM-80NW Module
Power Harnesses
Smartphone Interface Module
USB Extension Cable
4K HDMI Cable
Microphone
Optional sold seperately
3.5mm Aux Cable
LVDS Video Cable
Smart-Play Module Power Harness
OSD Controller
1 of 12
rev.051222
Crux Interfacing Solutions • Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
