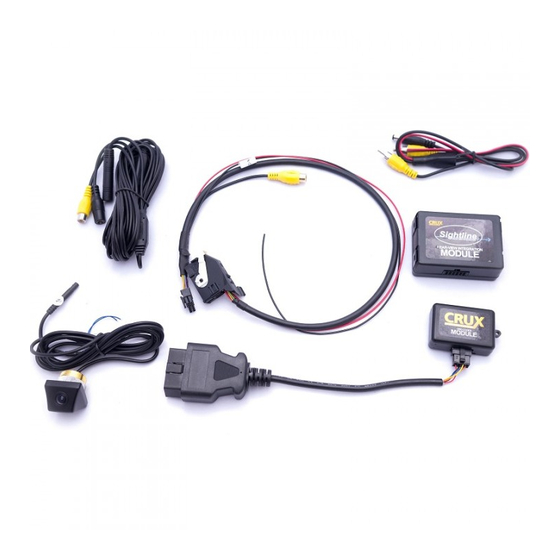

Codes the factory radio to turn on the reverse camera function.
-
- OEM type license plate light camera with incandescent bulb included.
- Includes camera power down circuit to extend the life of the camera.
- MFD3 or RNS-315 Navigation Radios.
In the event this unit is to be returned for any reason, the customer must "decode" the radio
before doing so to receive a replacement or refund. See instructions on page 2 on how to
decode the radio.
RVCVW-73B
RVCVW-73B
MODULE
The parking lines are there to assist you while reversing. To activate the parking lines simply
cut/disconnect the WHITE loop wire located near the 4-pin camera connector
What the Lines mean:
Green Line: CLEAR
Yellow Line: GETTING CLOSE
Red Line:
WARNING - VERY CLOSE
OBD II ENCODER
HARNESS
1 / 2
CVW-07B
POWER DOWN
CAMERA
CIRCUIT
.
GREEN
YELLOW
RED
rev.121819
