Summary of Contents for Crux RVCMT-69
Page 1

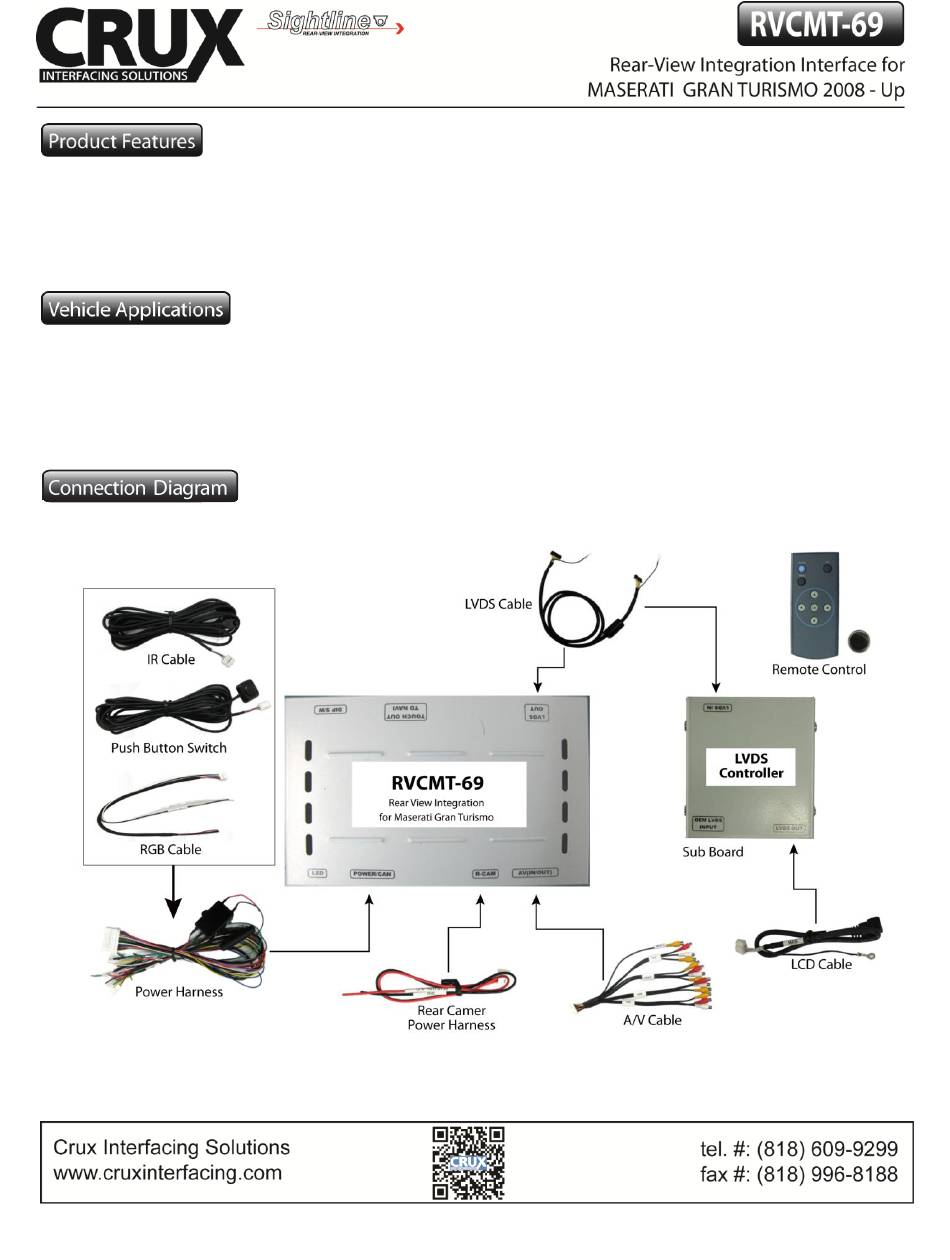

Activates Reverse camera input. Adds three A/V Inputs. On-screen display setup. Switch the video sources via the OE buttons. MASERATI 2008 – Up Gran Turismo 1 / 6 Rev.120116...
Page 2
Unplug OEM LVDS cable from the OEM monitor (which is connected to the Command box) and plug it into the LVDS INPUT of the LVDS Controller box. Connect the LVDS cable supplied in the kit to the LVDS OUT of the RVCMT-69 and to the LVDS IN of the LVDS Controller box.
DIP Switch Settings Disconnect power to the interface before setting the DIP switches. DIP# Function Selection ON : Skip RGB Mode RGB INPUT MUTE OFF : RGB Display ON : Skip A/V 1 A/V 1 MUTE OFF : A/V1 Display ON : Skip A/V 2 A/V 2 MUTE OFF : A/V2 Display...
OSD Settings Analog RGB Mode: IMAGE COLOR UTIL BRIGHTNESS RED: Adjust Red LANGUAGE: Select FACTORY RESET: CONTRAST GREEN: Adjust Green desire language Reset to Factory Default SHARPNESS BLUE: Adjust Blue TRANS: Adjust Transparency ...
Page 5
Factory Mode Press for more than 5 seconds on the remote. IMAGE PARK UTIL Adjusting the Position of the PARK ENABLE: Enable/Disable CALIBRATION: Do Not Use Navigation Screen Parking Guide Line IR MEMORY: Do Not Use H_POSITION: Move Screen ...
Page 6
DVD Player Model Selection UTIL – DVD TYPE NEC/SANYO, DV-108, SANYO-1, SANYO-2, USER If the DVD player you are using is not NECVOX or SANYO based, you will need to program the remote controller in the ‘IR MEMORY’ section and set the DVD TYPE to USER. NOTE: If you program the remote in FACTORY Mode, the DVD type will automatically be saved under ‘USER’.
