FRONT
MOUNTING
PLATE - -
DRIVING
ARM _____ . ____ _
MAIN SHAFT
BRACKET
----REAR
MOUNTING
!
FLEXIBLE
STOP ARM
LARGE GEAR
ON
MAIN
SHAFT
DRIVItIG
SPRING
DRIVING
SPRING
COLLECT
LEFT SIDE VIEW (8004823)
GtH-20jO
PAWL
..-!l~---
MAGNETIC
RIGHT SIDE V!EW (8004824)
DAMPING
ELEM~T
SET SCREW
FOR COPPER
CYLINOER
FRONT
MOUNTING
PLATE

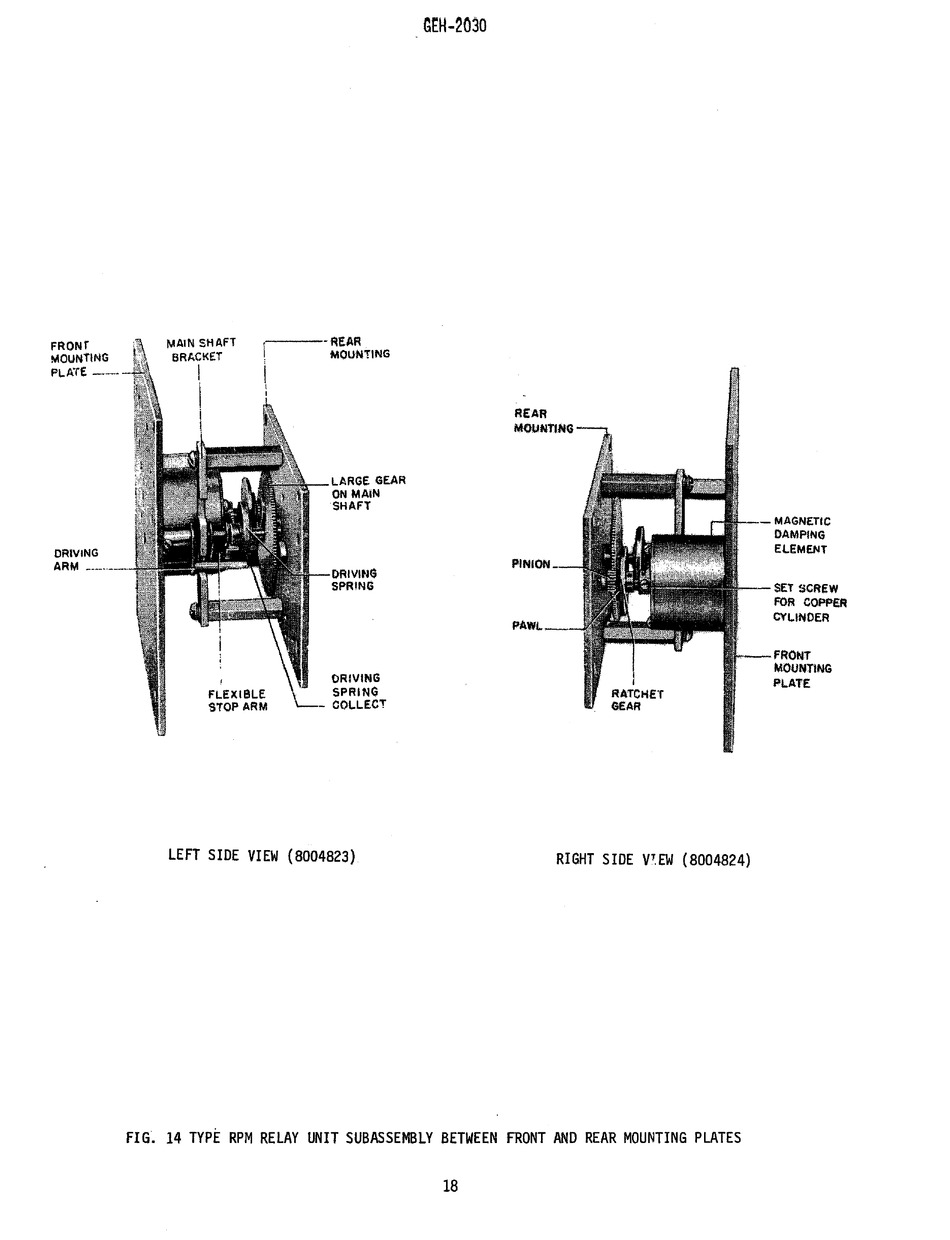

FIG. 14 TYPE RPM RELAY UNIT SUBASSEMBLY BETWEEN FRONT AND REAR MOUNTING PLATES
