Bromic Heating WATERBOY Series Instruction And Service Manual
12v pump
Hide thumbs
Also See for WATERBOY Series:
- Instruction manual (4 pages) ,
- Instruction manual (16 pages) ,
- Manual (16 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bromic Heating WATERBOY Series
Summary of Contents for Bromic Heating WATERBOY Series
- Page 1 BROMIC WATERBOY 12V PUMP RANGE INSTRUCTION AND SERVICE MANUAL V1.3 - 2023...
- Page 2 IMPORTANT Dear Customer, We thank you for the trust you’ve placed in our products! Your new Bromic product was designed and manufactured with state of the art pumping technology. Read these instructions for use carefully before using the product for the first time.
-
Page 3: Table Of Contents
CONTENTS Electrical Safety ..........General Safety . -
Page 4: Electrical Safety
ELECTRICAL SAFETY WARNING! When using electric powered products, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric short circuit, personal injury and material damage. Read and understand the manual prior to operating this pump. Save these instructions and other documents supplied with this pump for future reference. -
Page 5: Additional Safety Instructions For Pumps
GENERAL SAFETY Additional Safety Instructions for Pumps WARNING! Not intended for cleaning and other maintenance of swimming pools. This product is intended for pumping water in domestic and commercial applications. Do not use it for corrosive, abrasive, explosive or dangerous liquids. Fluids other than water will damage the water pump and/or create a fire hazard. -
Page 6: Your Product At A Glance

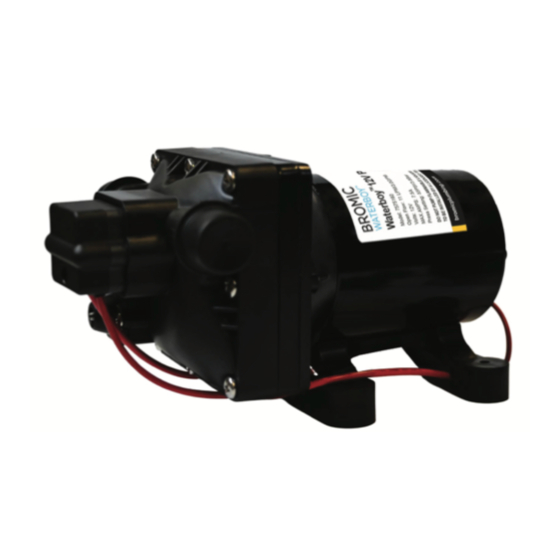

PART LISTS PART LISTS Your Product At A Glance 1. Motor 2. Pump Head 3. Pump Inlet Port 4. Pump Outlet Port 5. Pressure Switch 6. By-Pass Valve Accessories 7. Strainer 8. 1/2” Barb Hose Fittings bromicplumbing.com... -
Page 7: Installation - Setup & Preparation
INSTALLATION 1. Setup & Preparation WARNING! Ensure the pump is switched off and disconnected from the power supply before performing any of the following steps Remove the shipping plugs from pump ports. Some water from factory testing may spill out. Install the included strainer onto the inlet port. -
Page 8: Installation - Wiring
INSTALLATION 2. Wiring IMPORTANT! This pump must be installed by a technician. This pump should be wired to a suitable 12V power supply on its own dedicated circuit, where it should not include any other electrical loads. 2. Please reference the wire chart below to ensure the correct wire sizing for length is used. 3. -
Page 9: Maintenance & Storage
MAINTENANCE AND STORAGE MAINTENANCE AND STORAGE WARNING! Ensure the pump is switched off and disconnected from the power supply before performing any of the following steps For maintenance, conduct the following: • Regularly check and clean the strainer of any debris •... -
Page 10: Technical Data
SPECIFICATIONS If you are unable to correct a fault yourself, please contact our technical support directly. Please note that improperly conducted repairs will void your warranty and may result in additional expenses. BROMIC WATERBOY 12V PUMP 11L/Min Item number 7575160 Voltage 12V DC Open flow... - Page 11 Notes...
