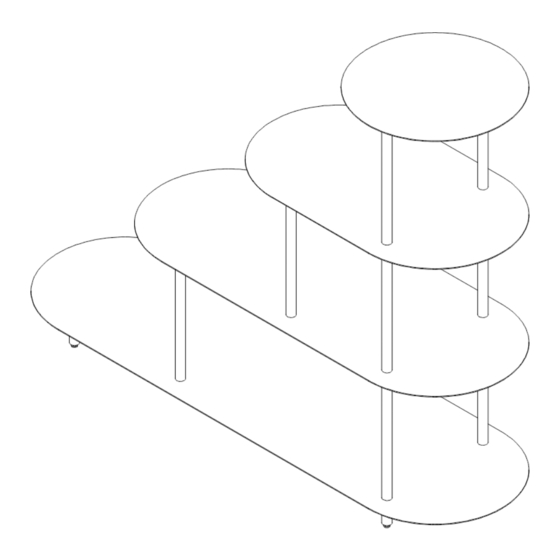

SOREN SHELF
Assembly Instructions
TOOLS REQUIRED BUT NOT INCLUDED:
Phillips head screw driver
WARNINGS:
At least two people recommended for assembly
Do not throw away packing materials and carton until after assembly.
Assemble all parts on a clean smooth surface
Do not drag the shelf while moving
CARE INSTRUCTIONS:
Avoid direct exposure to sunlight.
Do not place overheat or air conditioning vents.
Adjust levelers so that the furniture sits flat on uneven floors.
Blot spills do not rub, with a clean white cloth.
Do not use harsh chemicals.
Before cleaning any part test a small spot in a hidden area.
You may need to re-tighten all bolts after initial use.
PARTS INCLUDED
A) Top Metal Shelf x1
E) Metal tube with threaded
stud x6
I) Adjustable Leveler x4
EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC.© 2017 UO, Inc.
All rights reserved, including all applicable copyright, design and patent rights.
Any unauthorized reproduction, adaptation, distribution or other infringement will be prosecuted.
B ) Second Metal Shelf x2
F) Metal tube rail x4
J) Allen Key x1
C) Third Metal Shelf x1
G) Metal Tube Glide x4
URBAN OUTFITTERS
D) Bottom Metal Shelf x1
H) Bolt [M6xL20mm] x4
Page 1 of 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for URBAN OUTFITTERS SOREN SHELF
Summary of Contents for URBAN OUTFITTERS SOREN SHELF
- Page 1 I) Adjustable Leveler x4 J) Allen Key x1 EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC.© 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent rights. Page 1 of 3 Any unauthorized reproduction, adaptation, distribution or other infringement will be prosecuted.
- Page 2 (E) as shown and screw tight. Align Second metal shelf (B) to metal tube with threaded insert (E), and metal tube rail (F) as shown and screw tight. EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC.© 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent rights.
- Page 3 Metal tube glide (G) into the studs in the Bottom metal shelf (D) and Metal tube with threaded insert (E) as shown. Screw the adjustable levelers (I) into the Metal tube glide (G). EXCLUSIVE AND CONFIDENTIAL PROPERTY OF URBAN OUTFITTERS, INC.© 2017 UO, Inc. All rights reserved, including all applicable copyright, design and patent rights.
